Mini Conveyor T
oaster - Models: TC13A3674, TC13A3663 & TC13A3666
Toastmaster ® 5600 13th Street, Menominee, MI 49858 • www.toastmastercorp.com
Toll Free: 1-800-338-9886 • Telephone: 1-906-863-4401 • Fax: 1-906-863-5889
INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.
Toastmaster, in line with its policy to continually improve its product,
reserves the right to change materials or specifications without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased equipment.
NEMA PLUGS
NEMA
5-20P
NEMA
6-20P
Model Number TC13A3674 TC13A3663 TC13A3666
Product
Delivery
Front return Front return Front return
Width 14-7/32” 14-7/32” 14-7/32”
Depth (w/cord
clearance)
18-3/32” 18-3/32” 18-3/32”
Height w/1” Legs 13-3/8” 13-3/8” 13-3/8”
Toasting 10-1/4” W x 10-1/4” W x 10-1/4” W x
Chamber 1-1/2” H x 1-1/2” H x 1-1/2” H x
Dimensions 12-3/4” L 12-3/4” L 12-3/4” L
Loading Height 1-3/8” 1-3/8” 1-3/8”
Capacity 250 250 250
(slices per hour)
Supply (1 phase) 120 V 208 V 240 V
Current draw 13.4 A 5.5 A 6.4 A
Rated heat input 1.6 KW 1.1 KW 1.5 KW
Factory Installed
Cord & Plug
NEMA 5-20P NEMA 6-20P NEMA 6-20P
Shipping Weight 57 lbs. 57 lbs. 57 lbs.

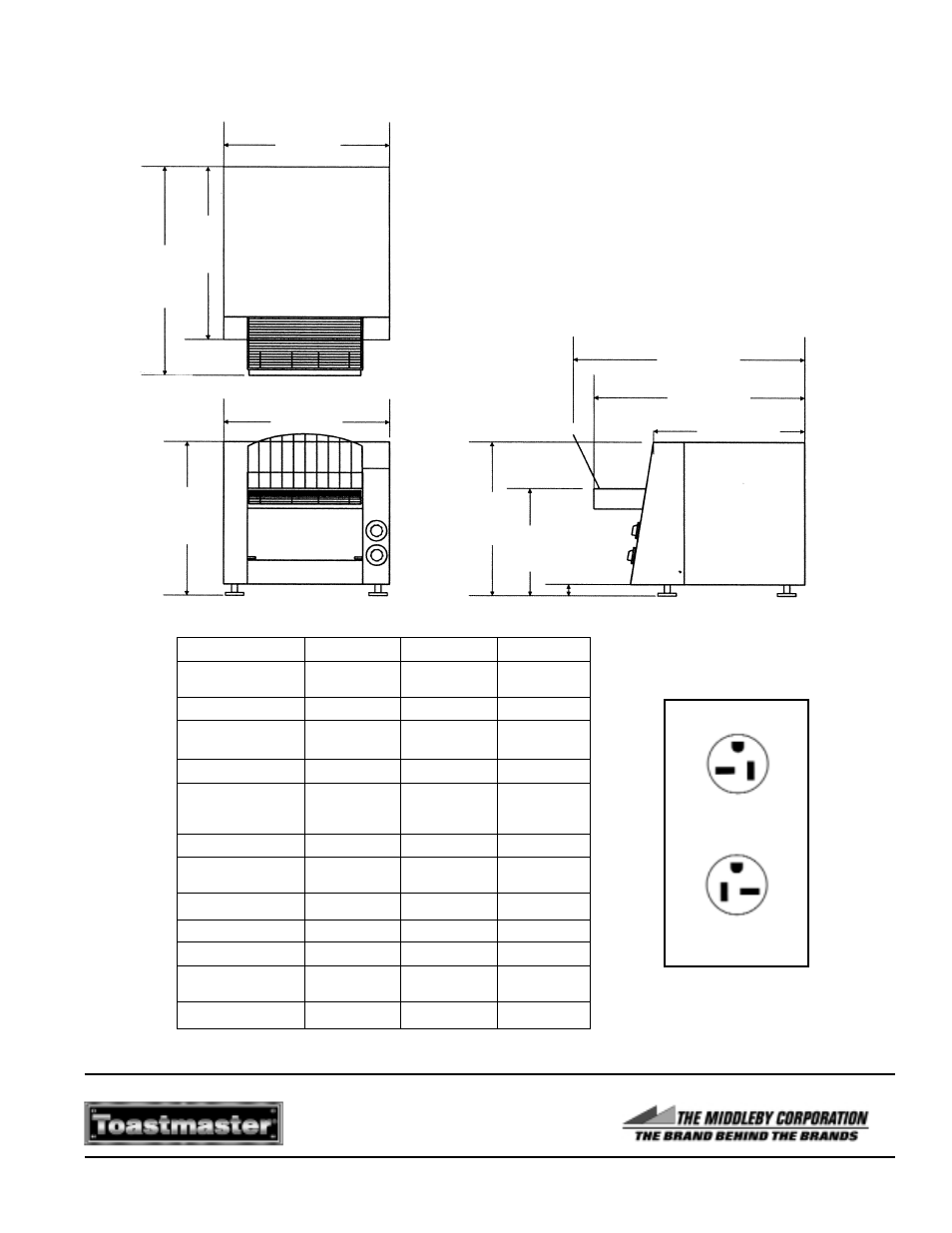

Mini Conveyor Toaster
TC13A3674, TC13A3663, TC13A3666
14 3 / 16
”
(361mm)
19 7 / 8 ”
(504.825mm)
17”
(431.8mm)
13”
(330mm)
13 3 / 8 ”
(339.725mm)
9 1 / 2 ”
(241.3mm)
1”
(25.4mm)
13 3 / 8 ”
(339.725mm)
17”
(431.8mm)
15”
(381mm)
14 3 /
16
”
(361mm)
SIDE
TOP
FRONT
