TDVDSN Series Direct Vent Gas Fireplace
20007890
Fireplace Dimensions

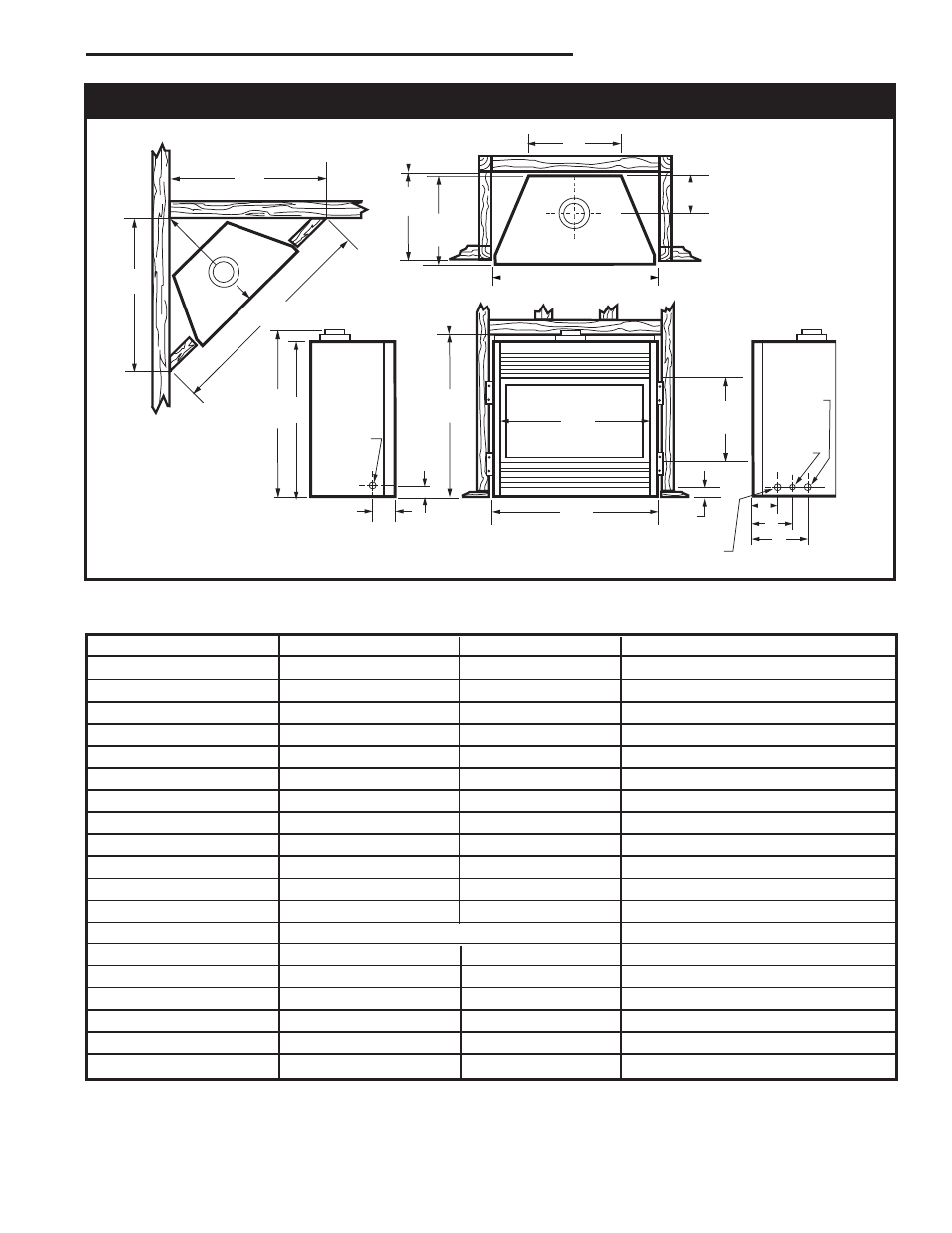

Fig. 1 Fireplace specifications and framing dimensions.
Ref. 33TDVDSN 36TDVDSN 39TDVDSN
A 33” (838 mm) 36” (914 mm) 39” (991 mm)
B 28⁷⁄₈” (733 mm) 34¹⁄₄” (870 mm) 34¹⁄₄” (870 mm)
C 31” (787 mm) 33” (838 mm) 36” (914 mm)
D 16³⁄₈” (416 mm) 21” (533 mm) 21” (533 mm)
E 22” (559 mm) 24” (610 mm) 24” (610 mm)
F 14” (356 mm) 16” (406 mm) 16” (406 mm)
G 31⁷⁄₈” (810 mm) 37¹⁄₄” (946 mm) 37¹⁄₄” (946 mm)
H 6” (152 mm) 7¹⁄₈” (181 mm) 7¹⁄₂” (190 mm)
I 5⁷⁄₈” (149 mm) 6³⁄₄” (171 mm) 6¹⁄₄” (159 mm)
J 7⁷⁄₈” (200 mm) 10” (254 mm) 8³⁄₈” (213 mm)
K 11” (297 mm) 13¹⁄₂” (343 mm) 12¹⁄₂” (318 mm)
L 1⁷⁄₈” (18 mm) 1⁷⁄₈” (18 mm) 1⁷⁄₈” (18 mm)
Framing Dimensions
M 29” (737 mm) 35” (889 mm) 35” (889 mm)
N 33¹⁄₂” (851 mm) 36¹⁄₂” (927 mm) 39¹⁄₂” (1003 mm)
O 14¹⁄₂” (368 mm) 16¹⁄₂” (419 mm) 16¹⁄₂” (419 mm)
P 49³⁄₄” (1264 mm) 55¹⁄₄” (1403 mm) 56” (1422 mm)
Q 24⁷⁄₈” (632 mm) 28¹⁄₈” (714 mm) 28¹⁄₄” (718 mm)
R 35³⁄₈” (894 mm) 39³⁄₄” (1010 mm) 40” (1016 mm)
