Description
1-2
1.1 Description
The TPA3001D1 evaluation module (EVM) is a 20-W class-D mono audio
power amplifier complete with a small number of external components
mounted on a circuit board measuring approximately 2 1/4 inches by 1 1/2
inches (Figure 1–1 and Figure 1–2).

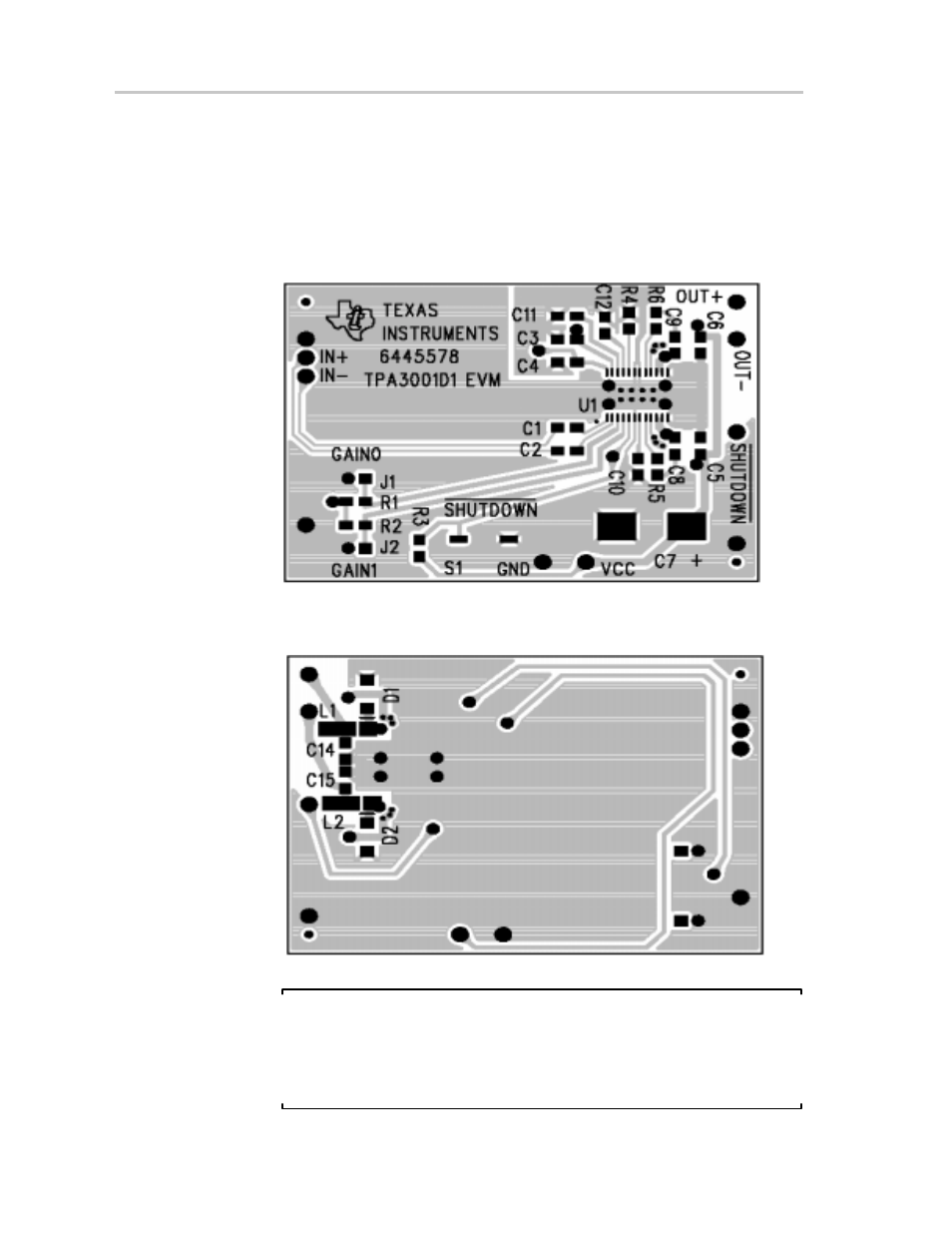

Figure 1–1. The TI TPA3001D1 Audio Power Amplifier EVM—Top View
Figure 1–2. The TI TPA3001D1 Audio Power Amplifier EVM—Bottom View
Note:
Single in-line header pins extend from the underside of the module circuit
board to allow the EVM to be plugged into the TI Plug-N-Play audio amplifier
evaluation platform, or to be wired directly into existing circuits and equip-
ment when used stand-alone operation.
