E6581268
- 23 -
3.7.3. Control Supervisor Object Common Services
Supported Service
Code
Service Name
Class Instance
Description of Service
0x05 Reset N/A Yes Used to reset all resettable connection objects.
0x0E Get_Attribute_Single Yes Yes Returns the contents of the specified attribute.
0x10 Set_Attribute_Single N/A Yes Modifies the value of the specified attribute.
3.7.4. Control Supervisor Object Specific Services
The Control Supervisor Object provides no object specific services.
Run/Stop Event Matrix
Run1 Run2 Trigger Event Run Type
0 0 Stop No Action
0 -> 1 0 Run Run1
0 0 -> 1 Run Run2
0 -> 1 0 -> 1 No Action No Action
1 1 No Action No Action
1 -> 0 1 Run Run2
1 1 -> 0 Run Run1

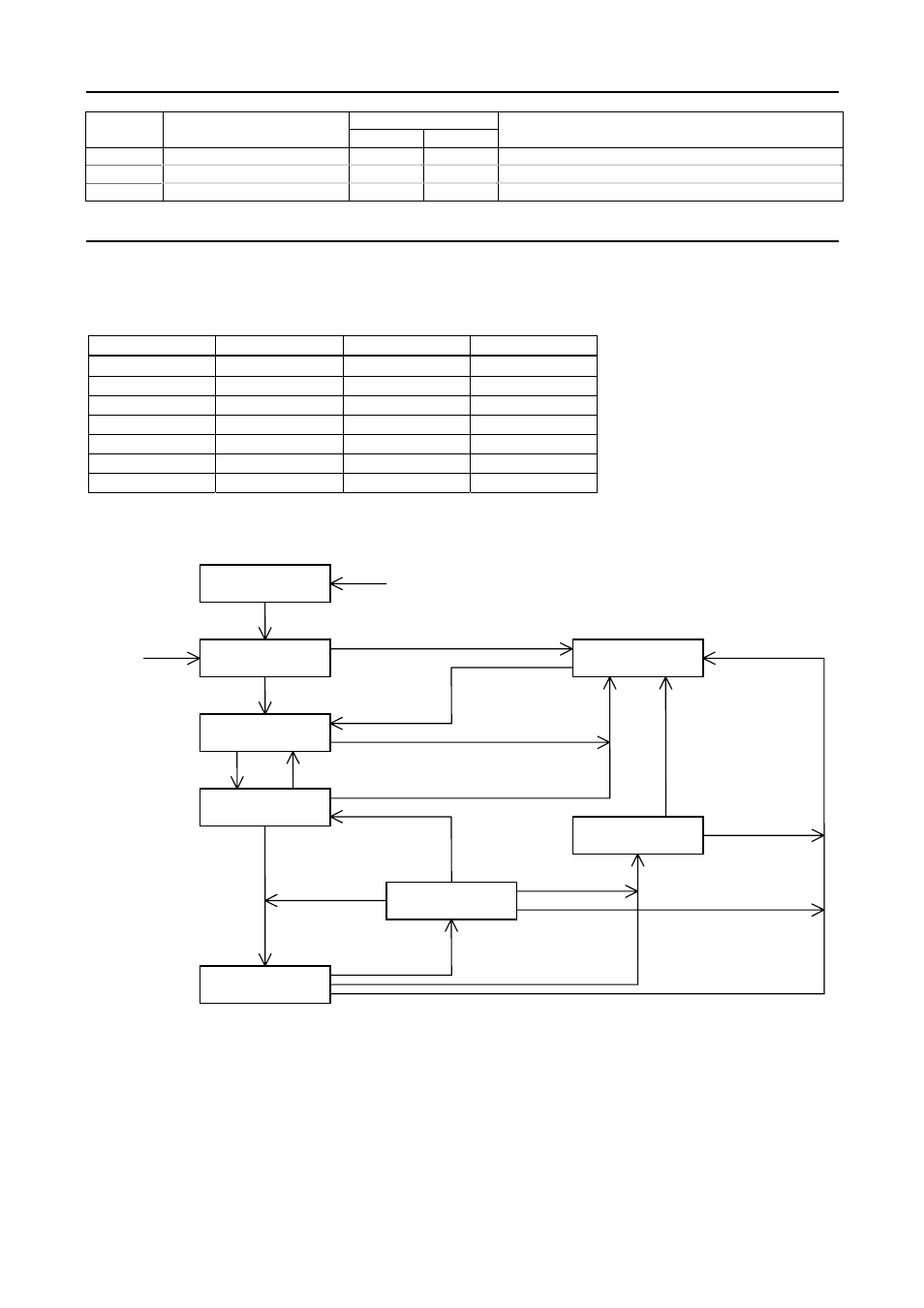

Control Supervisor State Transition Diagram
Non-Existant
Startup
Main Power On
Reset
Not_Ready
Ready
Initialization Complete
Enabled
Main Power Off
Stopping
Faulted
Switch Off
Fault Detected
Fault Detected
Fault_Stop
Fault Reset
Switch On
Run
Stop
Stop
Complete
Fault
Detected
Main Power Off
Fault_Stop
Complete
