25

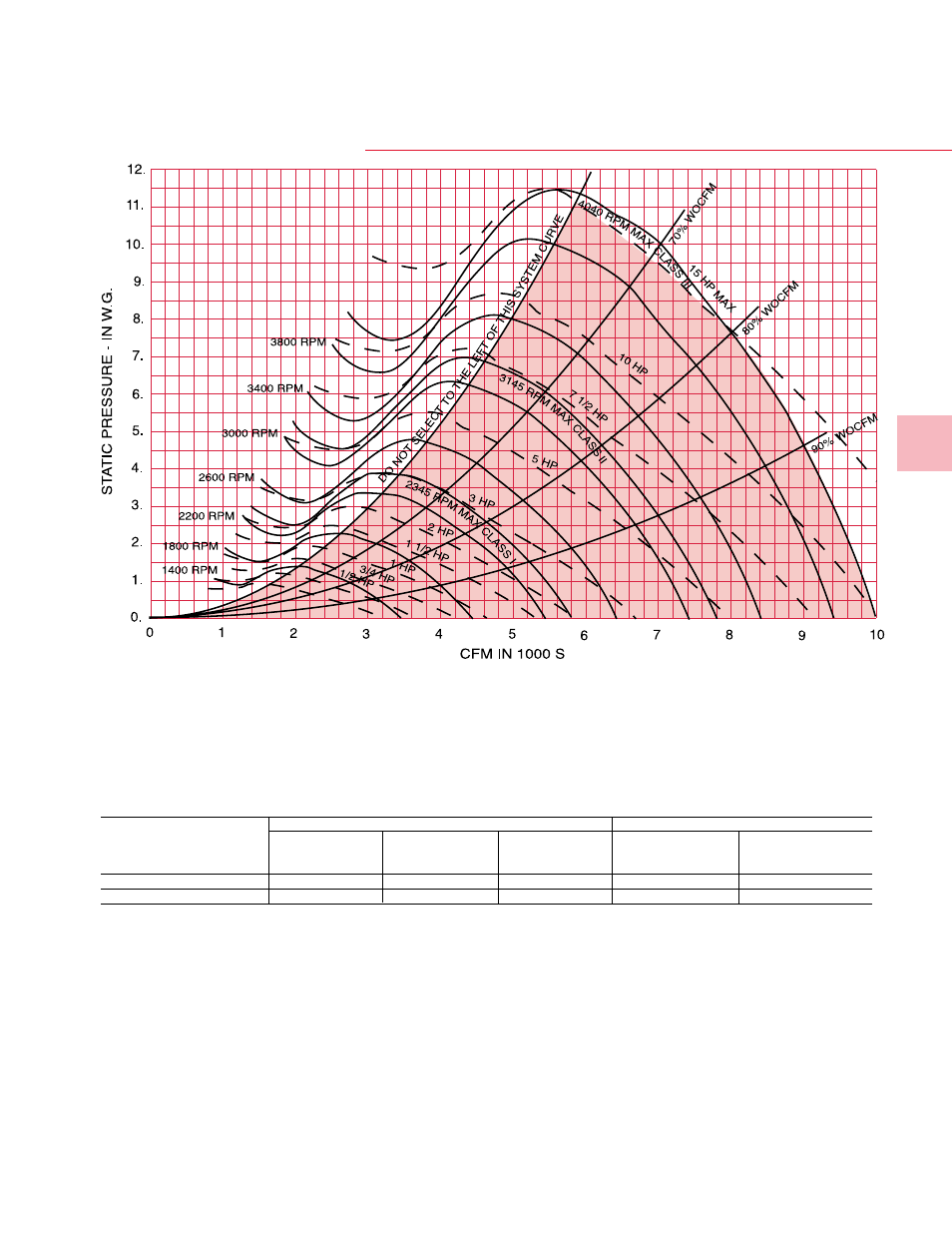

Performance
Data Q Fan and
Super Q II
Size 19
Standard fans can be selected ONLY in the shaded area.
Thrust restrains are to be used with fans Class 3 or motors 40 hp and up.
Minimum and Maximum Motor HP Ranges
Q Fan Size 19” Super Q Fan Size 19”
Min - Max Min - Max Min - Max Min - Max Min - Max
Motor HP Motor HP Motor HP Motor HP Motor HP
Class 1 Class 2 Class 3 Class 1 Class 2
Arrangement 9 1 - 3 3 - 7.5 7.5 - 15 1 - 3 3 - 7.5
Arrangement 1 — — 7.5 - 15 NA NA
____ Fan RPM Line
- - -
Motor HP Line
