ATX 12V 2.2 & EPS 12V Version ATX 12V 2.2 Version & EPS 12V
6.

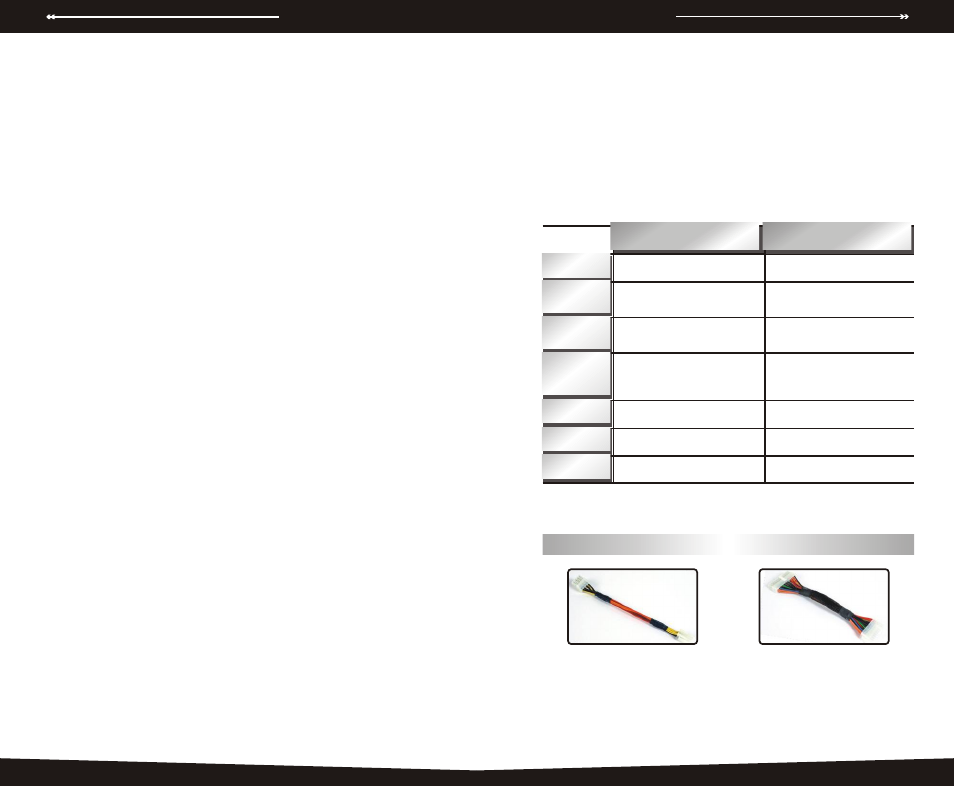

Cable Retail Package(Optional)
4pin - 8pin 20pin - 24pin
Plastic
Black
Adaptor Cable
Plastic
Red
(A)4pin-8pin (B)20pin-24pin
P/N:A2169 PSU Adaptor Cable
Specification
(A)
Model
Weight
Cable
sleeving
color
Dimension
(mm)
Connector
type
Material
Voltage
(B)
Adaptor Cable
193mm 198mm
16 g 58 g
12 V 3.3V,5V,+12v,-12V
5.
Trouble Shooting
C
ondition 1:
No DC output. The fan or fans are motionlessCheck:
1-1 Is the AC inlet plug firmly plugged into the PSU inlet
socket?
1-2 Is the wall socket, extension power cord, power strip
or surge protector in use, fully functional and wall power
switch turned 'ON'?
1-3 Is the Main Board socket (24pin) plug fully and firmly
inserted?
C
ondition 2:
The fan or fans began rotating and then stopped. The system
hangs without proceeding any further.
Check:
2-1 Are the peripheral connectors firmly plugged into
accessory devices, such as the main hard drive, CD ROM
, etc?
2-2 If a plug has been inadvertently connected in an off-set or
reversed position, unplug the AC power source, reconnect
the offending connectors and then wait for 30 seconds
before replug in the AC power source and try again.
Note:
If the power supply still cannot or is still unable to power up
after following the above instruction, please send the unit back
to your dealer or retailer for after sales service.
Toughpower 750W Toughpower 750W 15 14
170 X 140 mm
