56

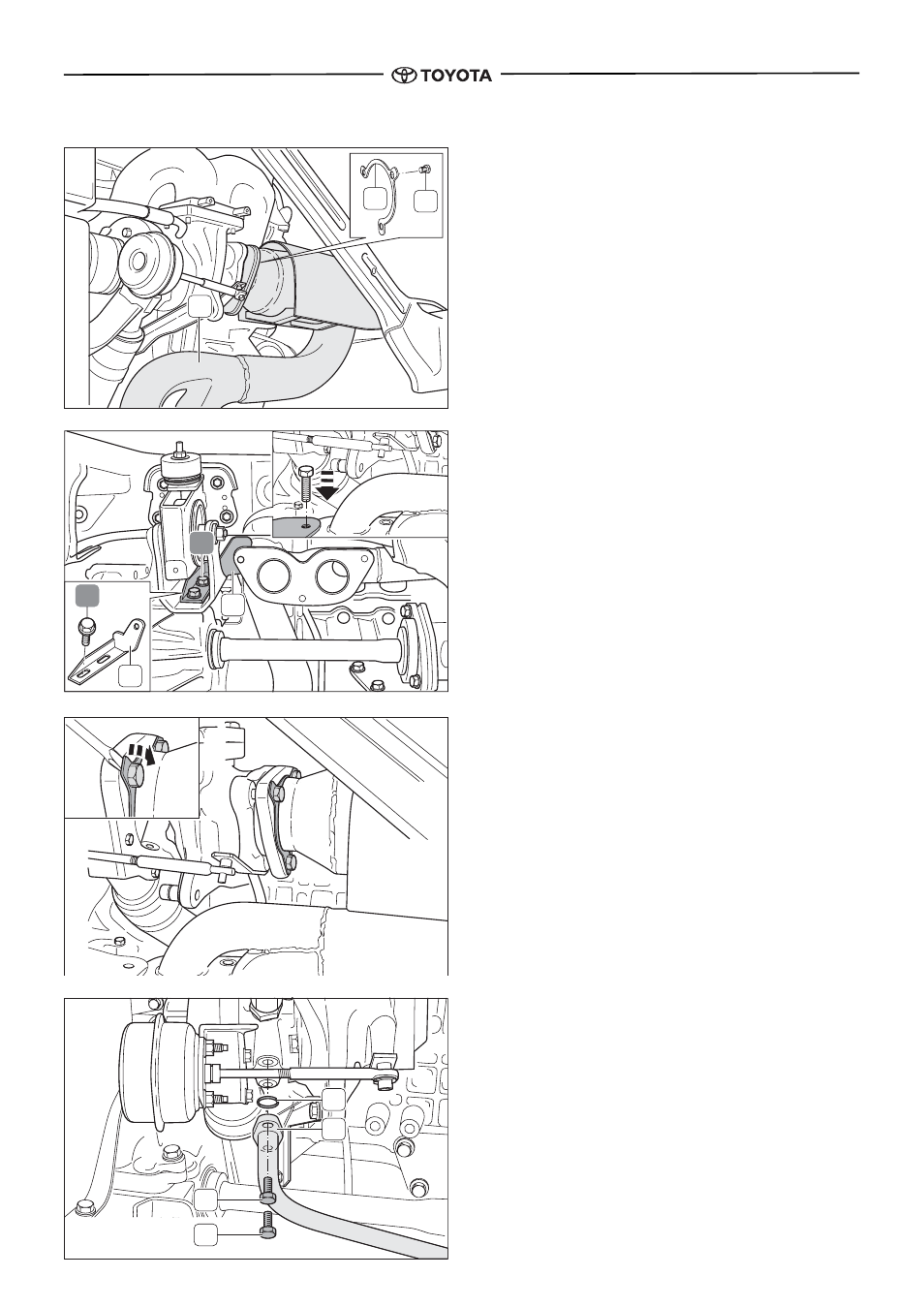

12. INSTALL EXHAUST PIPE PRE-CATALYSER.
(a) Position the exhaust pipe next to the turbo outlet side.
K: Exhaust pipe pre catalyser (10-1)
(b) Install the exhaust pipe onto the turbo charger using
the locking plate and bolts.(handtighten)
K: Locking plate No. 2 (4-4)
K: Bolt (3 pcs.) (4-1)
13. INSTALL EXHAUST PIPE BRACKET.
(a) Remove the 2 bolts of the gearbox mounting bracket.
R : Bolt (2 pcs.)
(b) Install the exhaust pipe bracket using the bolts.
K: Bracket (5-1)
Torque: 24 Nm
NOTICE: Temporarily install a bolt onto the bracket
and exhaust flange, for positioning the
outlet pipe.
(c) Tighten the 3 exhaust bolts.
Torque:16 Nm
(d) Bend the locking plates against the bolt heads to
secure the bolts.
14. INSTALL OIL RETURN PIPE.
(a) Install the oil return pipe onto the turbo charger using 2
bolts and a gasket.
K: Oil return pipe (14-4)
K: Bolt (2 pcs.) (14-3)
K: O-ring (14-8)
Torque: 20 Nm
CAUTION: Move to the right to have maximum
space to catalytic converter.
K
3x
K K
2x R
K
R
K
B
3x
K
K
K
K
