2.3 Rear panel connections 9
2.3 Rear panel connections

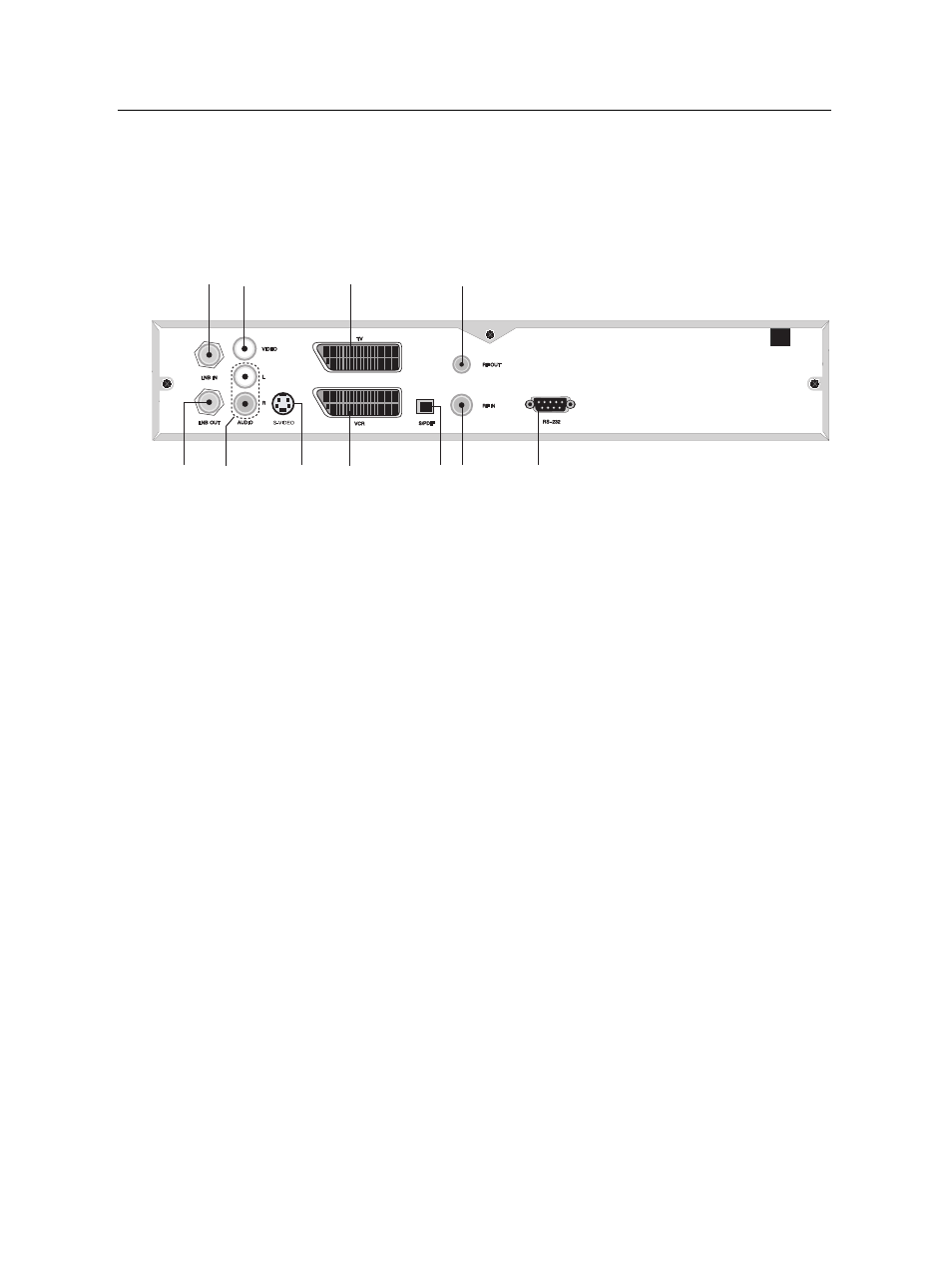

The TF 5000CI / TF 5100 CI has some connections on the back
panel.
1
2
3
4
5
6 7 8 9
10
11
Check up what connections your television set has in compar-
ison with the digital receiver.
1 LNB IN Broadcasting input socket
2 LNB OUT Broadcasting output socket through the LNB
IN
socket for another digital receiver.
3 VIDEO Composite video output socket for the tele-
vision set (Yellow)
4 AUDIO L/R Stereo audio output socket for the television
set or audio system. (Red/White)
5 TV Audio and video output socket for the tele-
vision set.
6 VCR Audio and video input / output socket for
the video cassette recorder or suchlike.
7 S-VIDEO Super video output socket for the television
set.
8 S/PDIF Dolby digital output socket for the audio sys-
tem.
9 RF IN Analog television input socket.
