Connections and initial set up
4

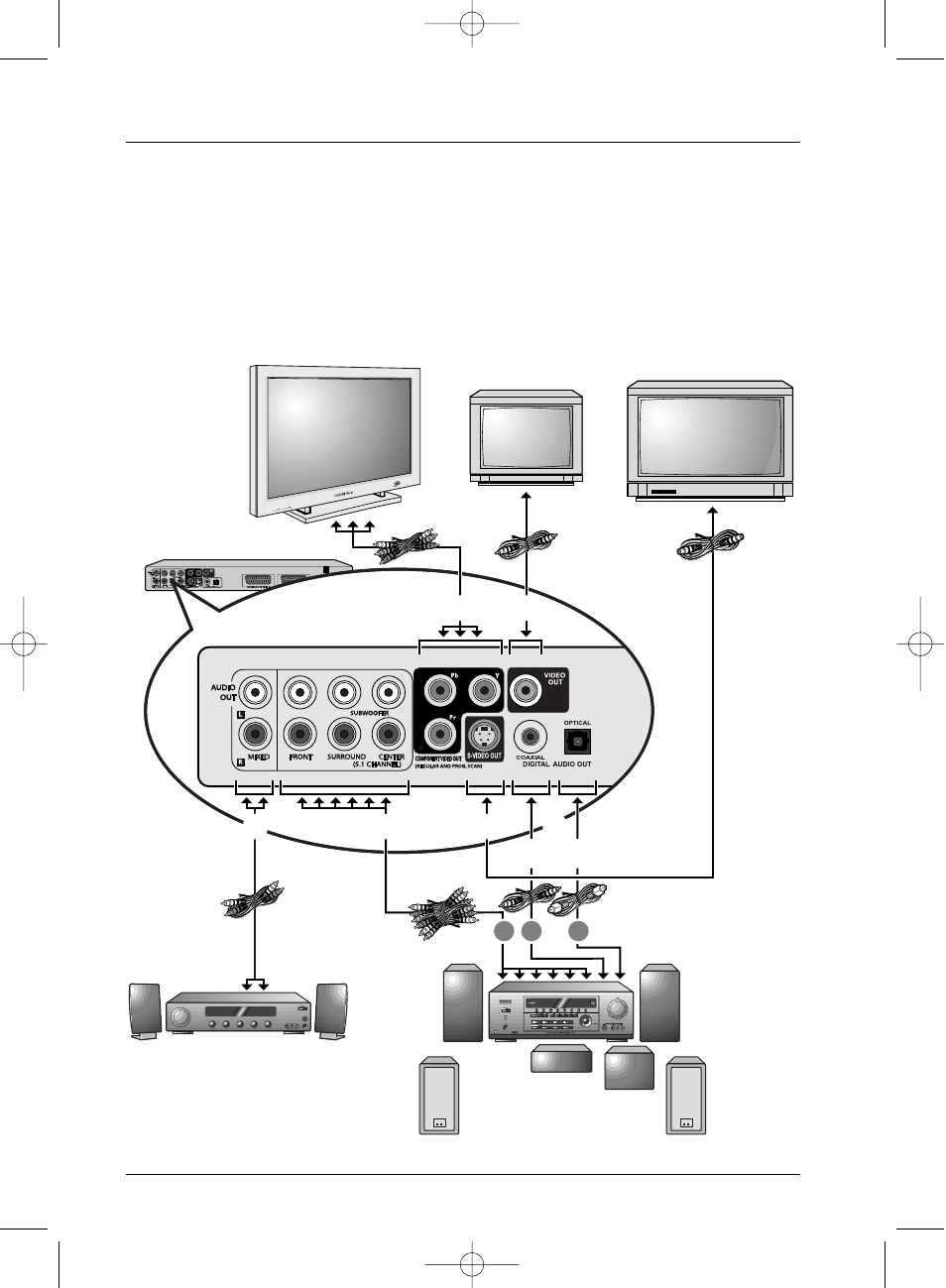

Other Audio - Video connections
If there is no Scart-Peritel connector available on the television set, check if there is another
Video connector (Components, S-Video or Composite) to connect your player to using the
corresponding connectors (see below). In this case do not forget to also connect the Audio out
socket (AUDIO OUT) to the Audio in socket (AUDIO IN) on your TV set.
Note: if your television is equipped with Component sockets and if you choose these connections, you must
adjust the output signal from your Scart-Peritel socket from RGB to YUV and select Progressive Scan
(see page 29). For more information about signals, cables and Audio/Video sockets refer to pages 6 and 7.
Television set
Television set
Plasma / LCD
Screen
5.1 Audio/Video
Amplifier
RIGHT
YUV (Components)
CVBS
(Composite Video)
Analogue
(Audio DVD discs)
Analogue
LEFT
FRONT
-
RIGHT
CENTER
SUBWOOFER
REAR
-
RIGHT
FRONT
-
LEFT
REAR
-
LEFT
Stereo Amplifier
DTH 720
1
4
5
2
6
3
A B
C
Y/C (S-Video)
Digital
(Video DVD discs)
