DIMENSIONAL DATA
5
From Dwg. 21D664
MODEL
A
B
C
D
WCY024G
WCY030G
56-1/2
36
29-3/16
12-15/16
WCO36G
WCY042G
64
36
29-3/16
14-1/2
WCY048G
WCY060G
65-1/8
45
33-3/8
14-13/16
RECOMMENDED SERVICE CLEARANCE
BACK
* 6.0"
LEFT SIDE
30.0"
RIGHT SIDE
24.0"
FRONT SIDE
30.0"
* 18" WITH FRESH AIR ACCESSORY
* 30" WITH ECONOMIZER
CLEARANCE TO
COMBUSTIBLE MATERIAL
BOTTOM
0.0"
BACK
1.0"
LEFT SIDE
6.0"
RIGHT SIDE
6.0"
FRONT SIDE
12.0"
TOP
36.0"

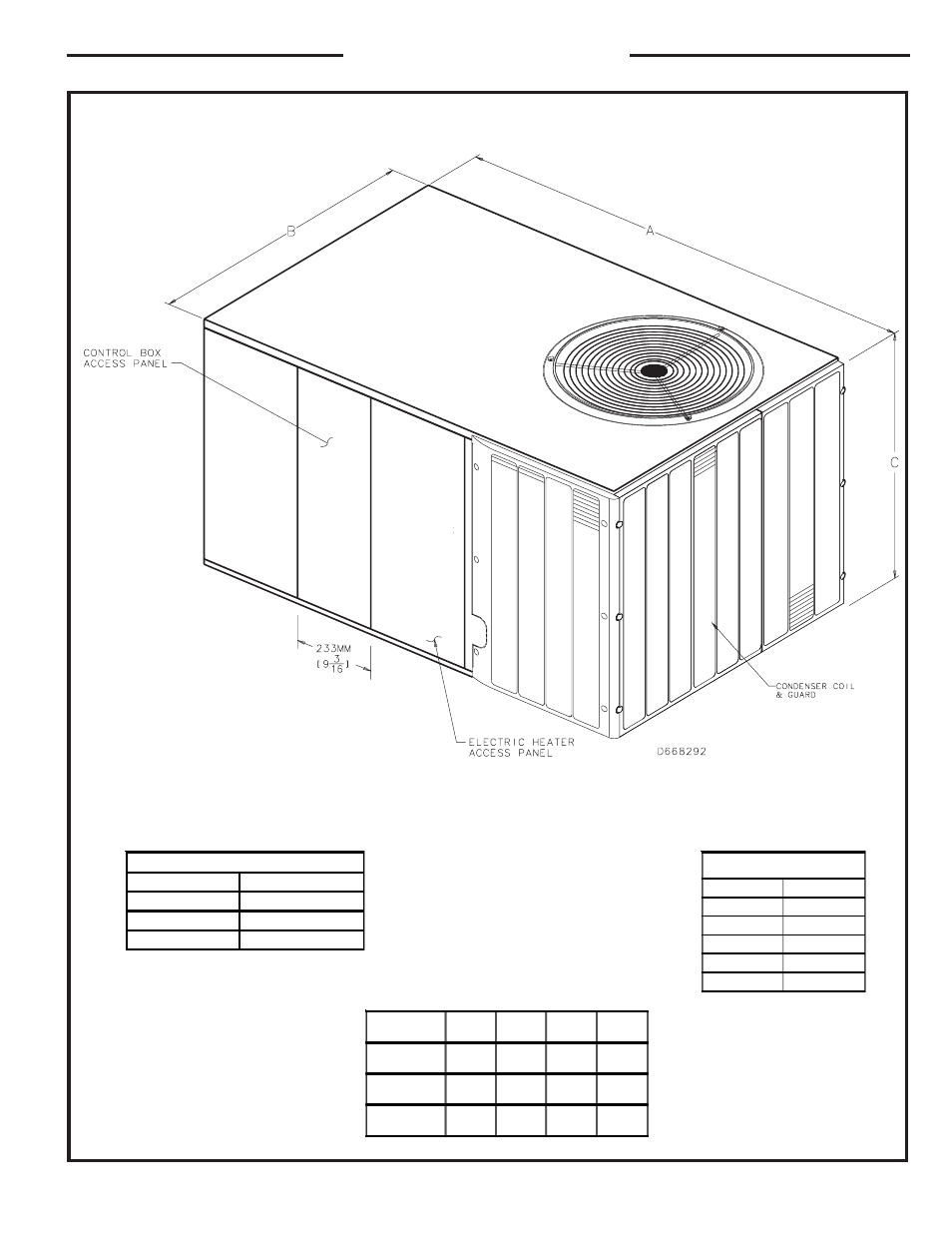

WCY024-060G OUTLINE - FRONT
