Reverse Clutch Cable
Carefully unwrap the reverse clutch cable (Red) from its 1.
shipping position. Pull the cable up through the top hole
in the cable bracket and push the cable connector up
through the hole in the bracket until the groove in the
connector snaps into place. See Fig. 3-4.
NOTE: Be sure to select the cable marked with red and be
sure that the reverse cable is placed into the top hole in the
cable bracket.
Place the Z-connecter into the hole in the reverse clutch
2.
control. See Fig. 3-4.
Forward Clutch Cable
Carefully unwrap the forward clutch cable (Black) from its 1.
shipping position. Pull the cable up through the bottom
hole of the cable bracket and push the cable connector
up through the hole in the bracket until the grove in the
connector snaps into place. See Fig. 3-4.
NOTE: Be sure to select the cable marked with black and be
sure the forward cable is placed into the bottom hole in the
cable bracket.
Place the Z-connector into the hole in the forward clutch
2.
bail. See Fig. 3-4.
Set-Up
Tire Pressure
Check the air pressure with a tire guage. Deflate or inflate the
tires equally to between 15 and 20 PSI.
NOTE: Be sure that both tires are inflated equally or the tiller will
pull to one side.
Gas & Oil Fill Up
WARNING! Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and any other
sources of ignition.
Service the engine with gasoline and oil as instructed in the
Engine Operator’s Manual packed seperately with your tiller.
Read the instructions carefully.

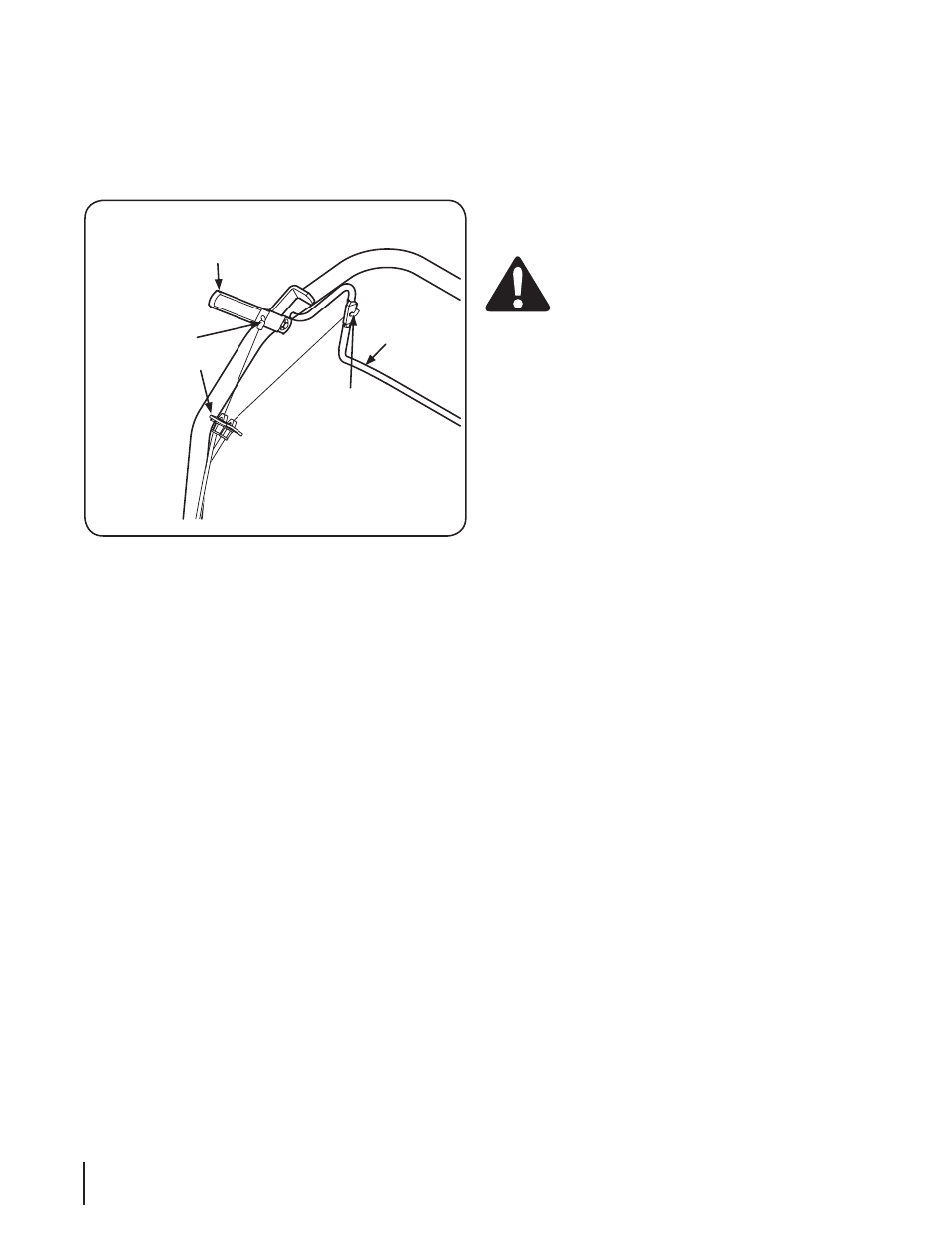

Figure 3-4
Clutch Bail
Forward Clutch
Cable (Black)
Reverse
Clutch
Lever
Reverse Clutch
Cable (Red)
Cable Bracket
