8
SCART-socket
(for VCR/DECODER) (L2)

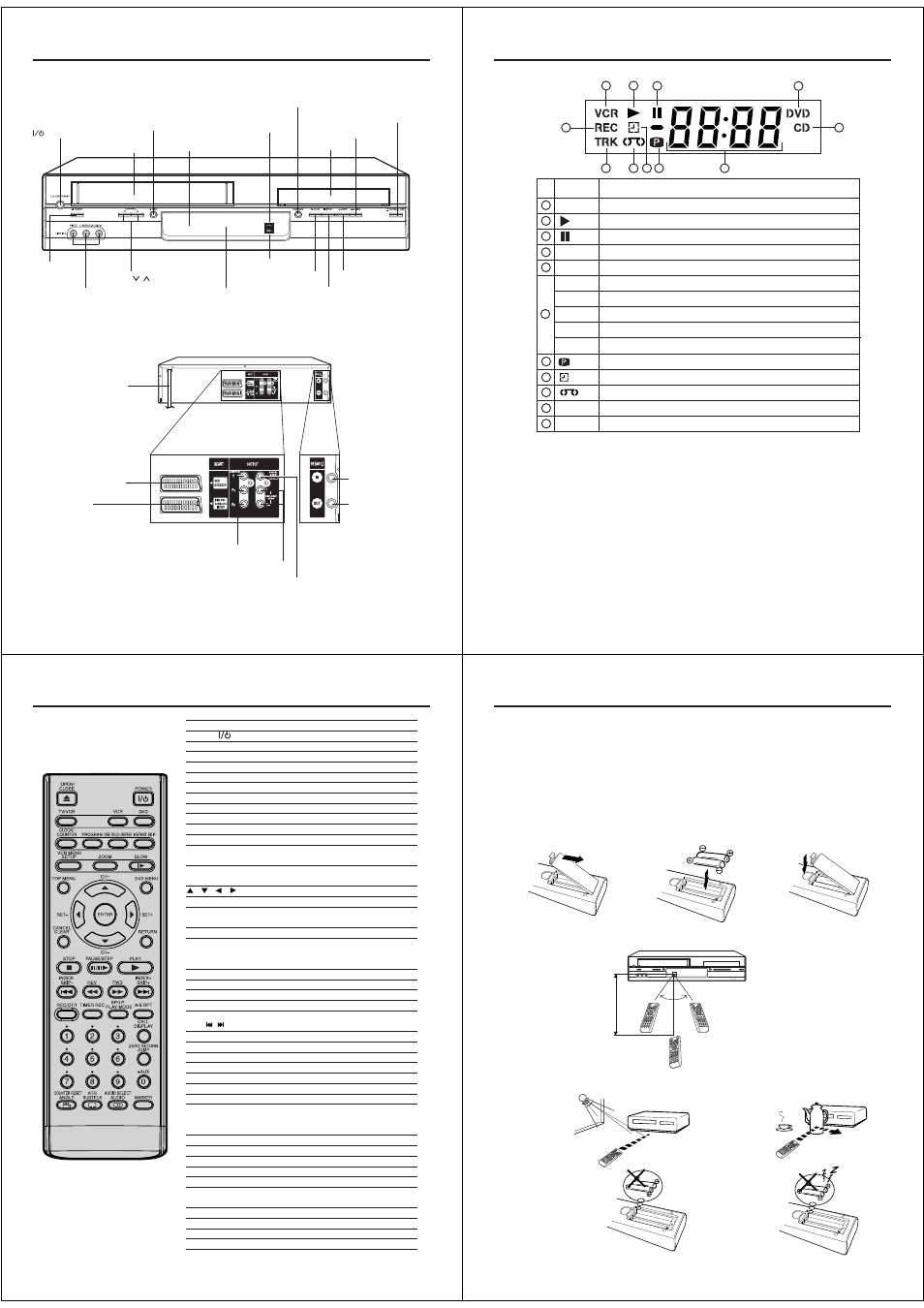

Parts and functions
Front
Rear
AC mains lead
COAXIAL DIGITAL AUDIO OUT jack
RF IN jack
AUDIO (L/R) OUT jacks
RF OUT jack
SCART-socket
(for RGB OUT,
Composite IN/OUT) (L1)
COMPONENT VIDEO OUT(Y/P B /P R ) jacks
ON/STANDBY button
AUDIO (L/R)/VIDEO IN
(LINE IN 3) jacks
EJECT
button
Disc tray
Display window
REC button
CHANNEL / buttons
OPEN/CLOSE button
Remote sensor
VCR mode indicator
DVD mode indicator
Cassette loading slot
VCR/DVD mode selector button
STOP button
PLAY button REV button
FWD button
9
No. Display
VCR mode of TV/VCR switch
Display
VCR
DVD
CD
10 : 00
01 : 00
2
L1/L2/L3
TRK
CH 2
Playback (lights) / Auto resume (flashes)
Still picture
DVD disc is inserted.
VCD/CD is inserted.
Clock display (colon[ : ] flashes)
Counter display by hour/minute at VCR/DVD / by minute/second at CD
Track number display for CD
TV channel position display
External input display
Timer recording display
Video tape is in the unit
Track display for CD
Normal recording display (flashes during One-touch Timer Recording - OTR)
Note:
Some discs may not playback correctly, or chapter number, playback time, etc. may not be displayed.
Display window
1
2
3
4
5
6
8
9
10
11
1 2 3
8 9 10
11
4
6
5
Description
REC
7
Progressive indicator 7
10
OPEN/CLOSE Open or Close the disc tray 33
POWER Power on/off 16
TV/VCR Switch to TV only at Scart connection 26
VCR Select to operate VCR 16
DVD Select to operate DVD 33
CLOCK/COUNTER Change the front Display mode 23
PROGRAM Confirmation of Timer-Recording 29
ONE TOUCH REPEAT Skip back about 10 seconds of DVD/VCD/CD playback 35
INSTANT SKIP
Skip the unwanted short material of a tape 21
VCR MENU/SETUP Display menu of setup 16,49
ZOOM Zoom 36
SLOW Slow motion playback 21,35
TOP MENU Select title of a DVD disc/
View JPEG files in a file browser
40,45
DVD MENU Select menu of a DVD disc/
View JPEG files in a thumbnail list
40,45
/ / / Cursor buttons 17
CH +/– Select channel of the VCR 25
ENTER Enter information in the menu
Select option in the menu
16,29
SET –/+ Manual tracking 21
CANCEL/CLEAR Delete Timer program 29
Skip channel/Cancel input data in the setting
mode
15,36,37
RETURN Exit setup menu 49,54
STOP Stop 20,33
PAUSE/STEP Still picture/Recording pause on/off 21,25,34,35
PLAY Playback 20,33
INDEX –/+ Search for the INDEX mark of a tape 24
SKIP / Skip chapter/track to forward or reverse direction 35
REV Rewind/Review playback 20,21,35
FWD Fast Forward/Forward search playback 20,21,35
REC/OTR Recording/OTR 25,27
TIMER REC Timer recording On/Off 27,29
SP/LP Sets the tape speed for recording 25
PLAY MODE Select playback mode 38,39
A-B RPT Repeat playback between A and B (DVD/VCD/CD) 38
0-9 Direct channel selection of TV 15,25
Input setting 36
Enter a security code 52,53
CALL/DISPLAY Display VCR or DVD operation status 23,26,42
ZERO RETURN Stop the tape when the counter reaches 00:00 23
JUMP Jump to desired scene 36
AUX Scart Input or AV-Front input 13,32
COUNTER RESET Reset the counter to 00:00 23
ANGLE Change playback angle of a DVD disc 40
Rotate JPEG CD image 45
ATR Auto tracking 21
SUBTITLE Set Subtitle of a DVD disc 42
AUDIO SELECT Switches sound between mono and stereo 31
AUDIO Change soundtrack language of DVD 41
MARKER Mark/Resume from the desired scenes
(DVD/VCD)
37
Page
Remote control
11
Remote control
1 2 3
Replace the compartment
cover. Install two "R03/AAA" batteries
(supplied), paying attention to the
polarity diagram in the battery
compartment. Open the battery compart-
ment cover in the direction of
the arrow.
How to install the batteries
Use micro batteries type UM-4 (R03/AAA-Size).
These batteries are offered as carbon / zinc-type or as alkaline-type. You may use both, but do not mix types. The
alkaline type lasts longer compared to the carbon / zinc type but is more expensive.
Note: Flat, weak batteries will leak. Corrosive electrolyte will damage the remote control.
Leak proof batteries will not leak immediately when they are flat. As long as the remote control is still working,
there is no danger of leakage. To prevent damage, remove the batteries if you do not use the remote control
for a long period of time.
Damage because of leakage is not covered by the guarantee.
Distance of Remote
Control Operation
Effective angle:
approx. 60°
approx.
7m
Point the remote
control directly at the
remote sensor.
If bright sunlight
directly beams
onto the unit
front. If an obstacle is
placed between the
unit and the remote
control.
The remote control will not work properly in the following cases:
If the batteries have not
been installed according to
their polarities. If the batteries are
weak.
