48
Equipment
connections
Toshiba 32/37WL58AET (E)
Equipment connections
Back connections

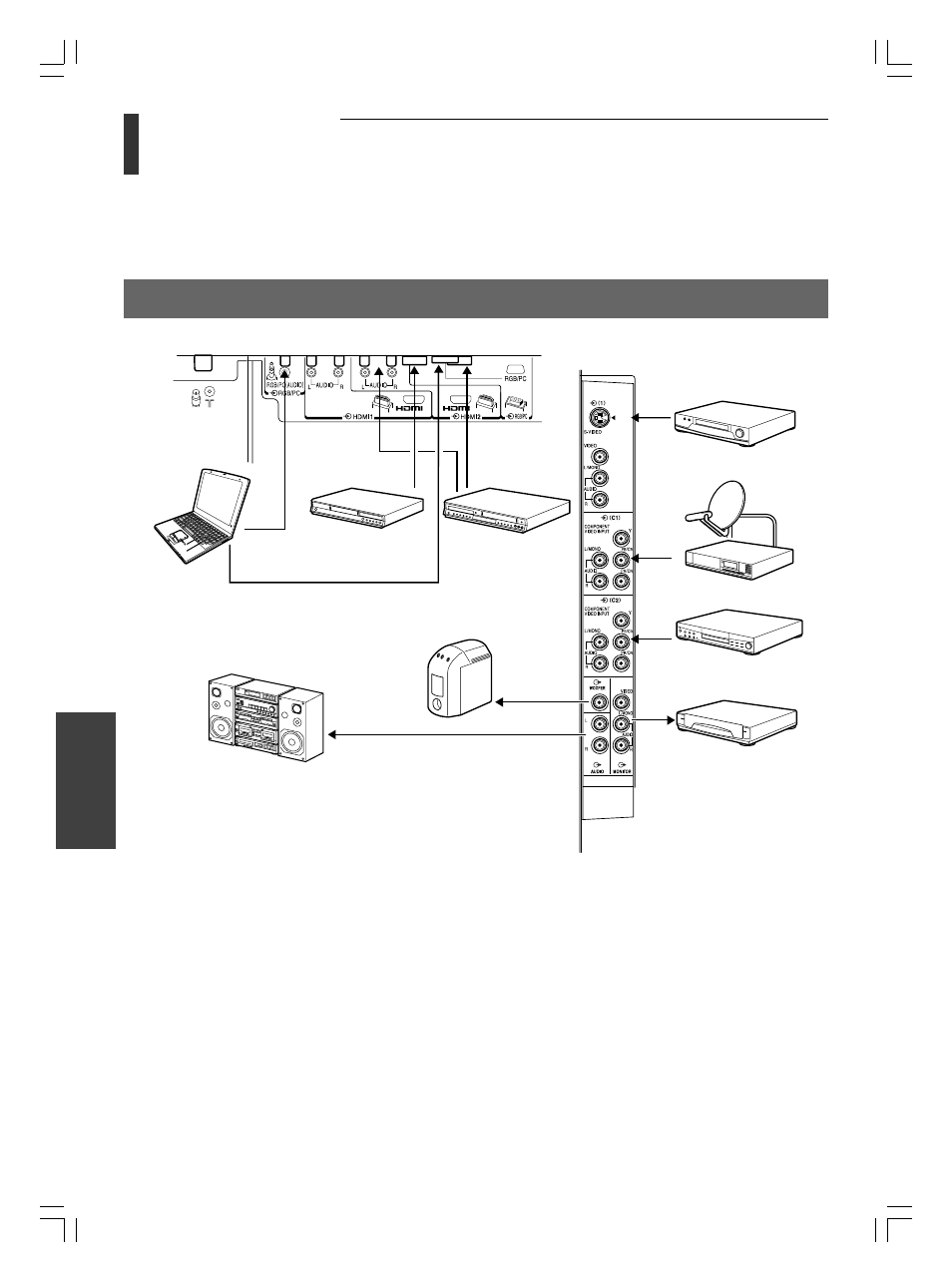

Connection example
Computer
DVD video player
(with component
video outputs)
DVI device
(see page 52)
Audio system
(see page 26, 27)
Woofer system with
amplifier (see page 28)
• Before connecting any external equipment, turn off all main power switches.
• Before connecting any external equipment, remove the back terminal cover (see page 10).
• The unauthorized recording of television programs, DVDs, video tapes and other materials may infringe upon the
provisions of copyright laws.
• Connect either the S-VIDEO input terminal or VIDEO input terminal, whichever terminal is used. Never connect
both of these terminals.
• There is a fixed/variable external audio output which enables the connection of a suitable audio system. The
WOOFER OUT terminal allows an external active Woofer system to be connected.
• The COMPONENT VIDEO INPUT consists of three component video signals (Y, P
B
/C
B
, P
R
/C
R
) and provides the
best picture performance. These terminals can only be used with the component video compatible equipment, e.g.
DVD video player, etc.
• Additional equipment and cables shown are not supplied with this TV.
VCR
(S-Video or Normal )
TV back view
Set Top Box
HDMI device
(see page 52)
VCR (Recording)
TV right side view
