4
Driver Installation for Windows XP, Linux Kernel 2.4 or Later
No driver is needed. Turn off the computer and refer to Hardware Setup below to install the
Internal 6-in-1 Card Reader into your PC.
Hardware Setup
1. Install the Internal 6-in-1 Card Reader into an available 3.5” drive bay.
2. Find the layout of the USB pin-header in the owner’s manual of your motherboard.

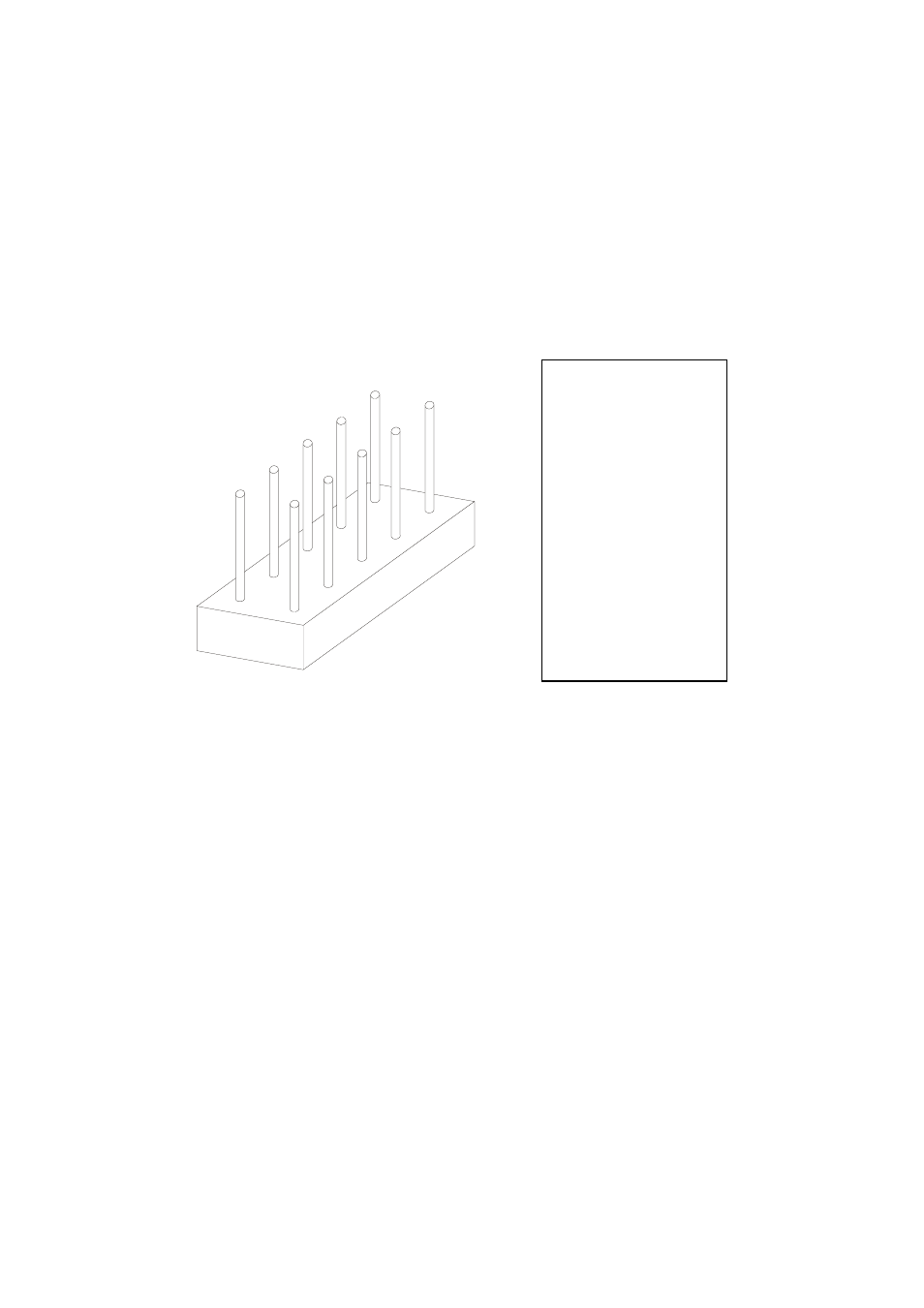

3. If the layout of the USB pin-header is as shown below, it matches the default setting
of the USB connector.
1
2
3
4
5
10
9
8
7
6
If the layout of the USB pin-header is not as shown above, skip step 4 and go
directly to step 5.
4. Plug the USB connecter of the Internal 6-in-1 Card Reader into the USB
pin-header on the motherboard, with the red wire seated in pin 1 or pin 6. Hardware
setup is complete.
Pin 1: USB Power
Pin 2: USB -
Pin 3: USB +
Pin 4: GND
Pin 5: NC/USBOC
Pin 6: USB Power
Pin 7: USB -
Pin 8: USB +
Pin 9: GND
Pin 10: NC (No pin)
