Toshiba CARRIER RAV-SP300AT2-UL - Manual (Page 108)

– 108 –

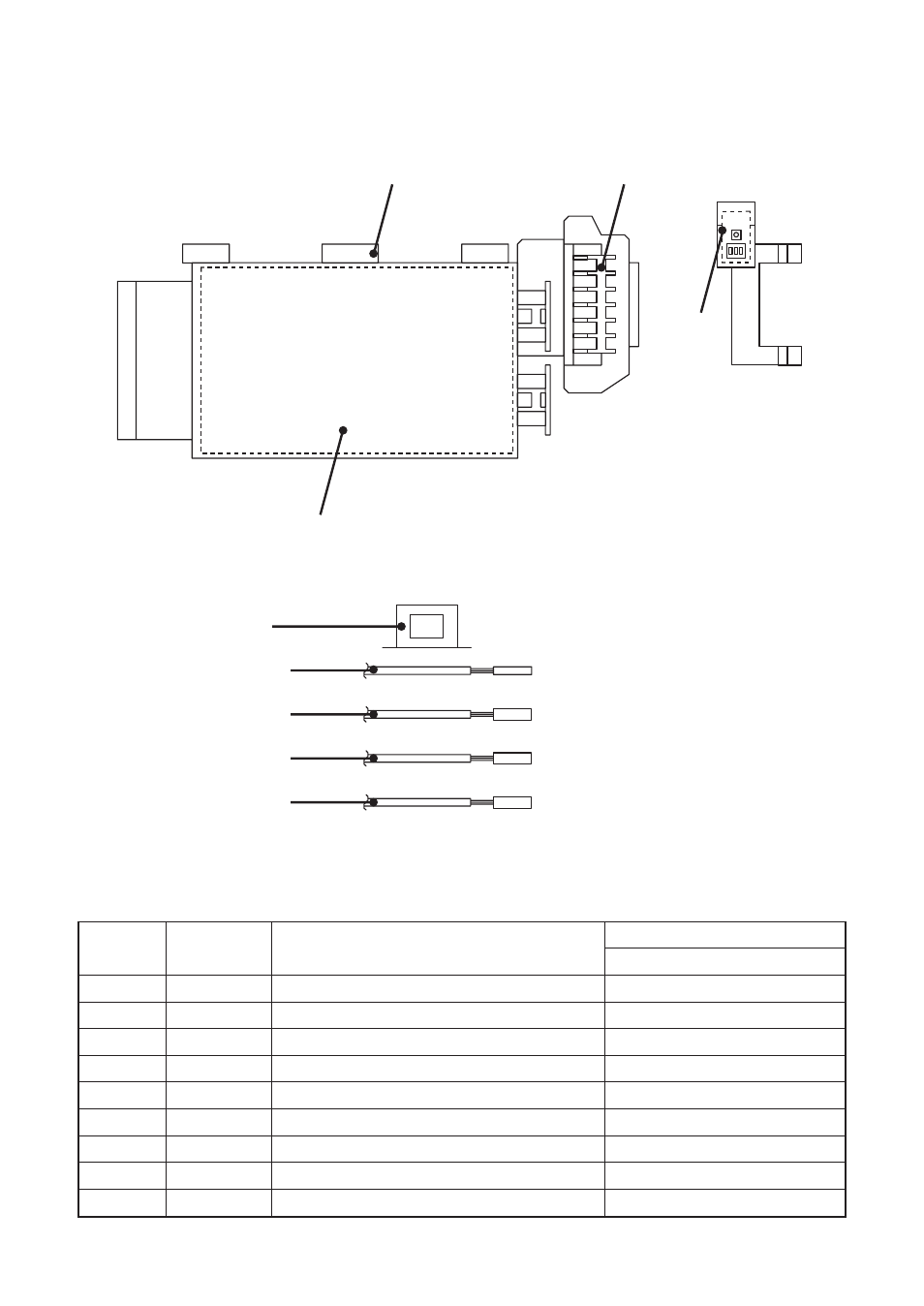

Location
Part No. Description
No.
701 43050422 Sensor, TE
702 43050423 Sensor, TS
703 43050427 Sensor, TO
704 43050430 Sensor, TD
705 43162058 Base, P.C.board
706 43160608 Terminal block, 6P, 20A, AC250V
707 43158192 Reactor, CH-43-Z-T, RoHs
708 4316V293 P.C. board Ass’y, SW, MCC-1530
709 4316V412 P.C. board Ass’y, MCC-5009
Model Name
RAV-SP180AT2-UL
1
1
1
1
1
1
1
1
1
705 706
708
709
Reactor
TD sensor
TS sensor
TE sensor
TO sensor
707
704
702
701
703
