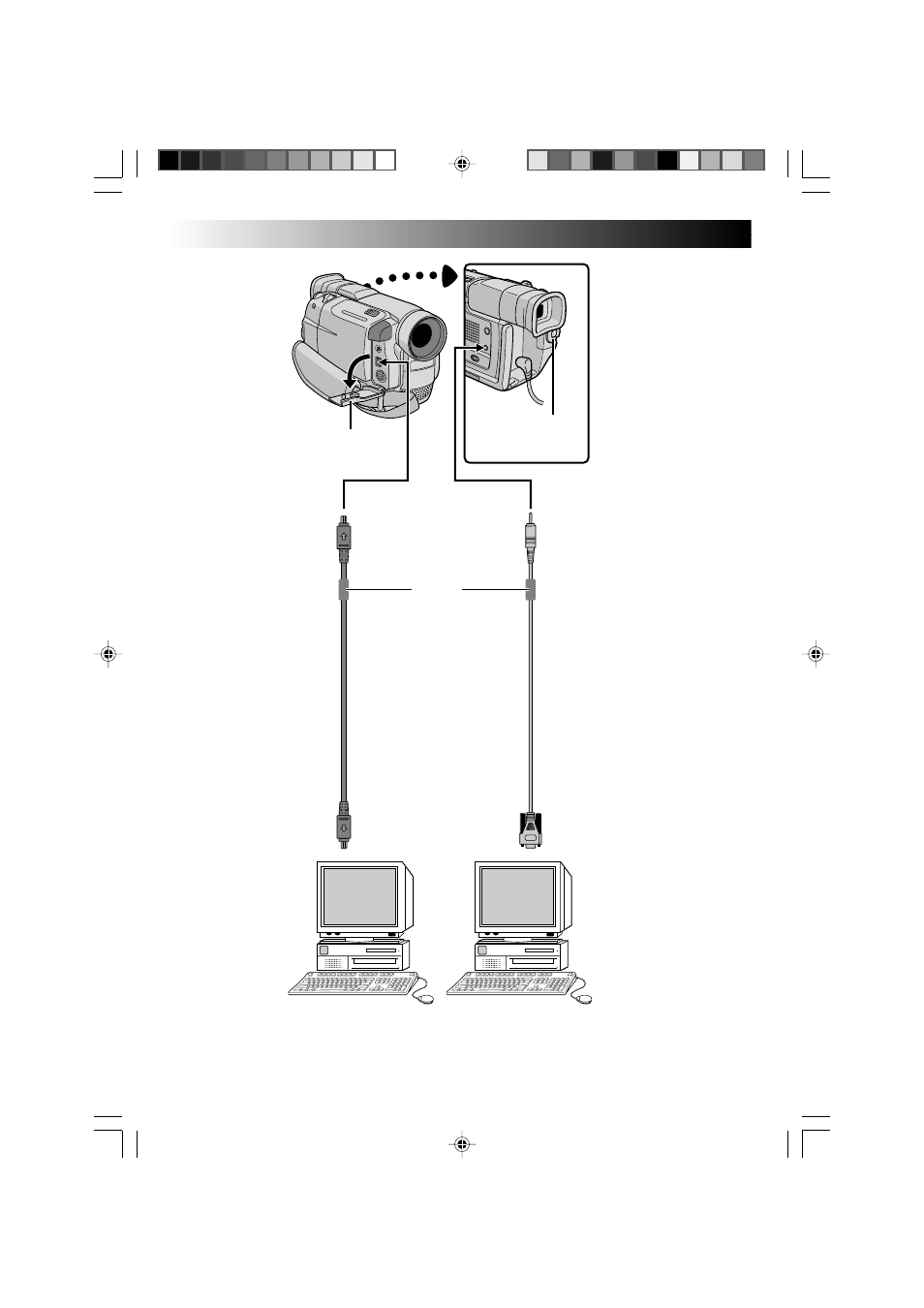

CONNECTIONS Advanced Connections
To DV IN/OUT
To
RS-232C
DV cable**
To DV
connector
PC
connection
cable
(provided)
To PC
(DIGITAL
PHOTO)
Power Switch
PC with DV
connector-equipped
capture board PC
Connector
cover*
Core filter
* When connecting the cable, open this cover.
** Use the DV cable provided with the capture
board.
