26

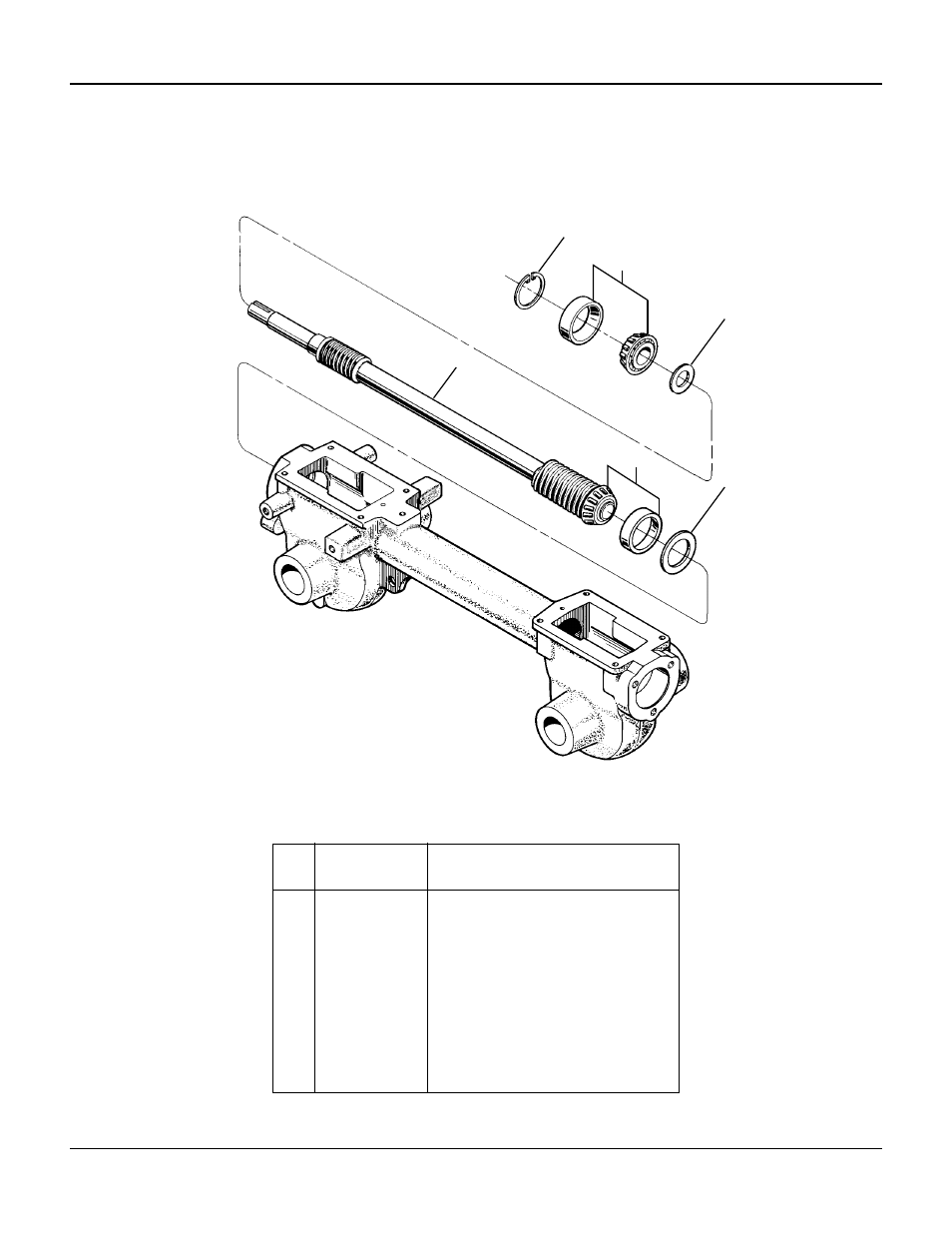

MODELS 630C, 634F & 634A
* Use as required to obtain between .005” and .015” allowable end-play.
REF
NO.
PART NO. DESCRIPTION
1 GW-9517 Snap Ring
2 GW-1714 Bearing, Tapered Roller (with race)
3 GW-50043 Support Washer, Rear
4 711-04109 Drive Shaft (A) (B) (C)
5 GW-1224-1* Shim, Rear Bearing Cap, .010" thick
GW-1224-2* Shim, same as above, except .030" thick
GW-1224-3* Shim, same as above, except .005" thick
GW-1224-4* Shim, same as above, except .062" thick
— GW-1325C Shim Set (Incl. the following shims:
two #1224-1, two 1224-2 & one #1224-4)
(A) For Model 630C
(B) For Model 634F
(C) For Model 634A
3
4
5
2
2
1
