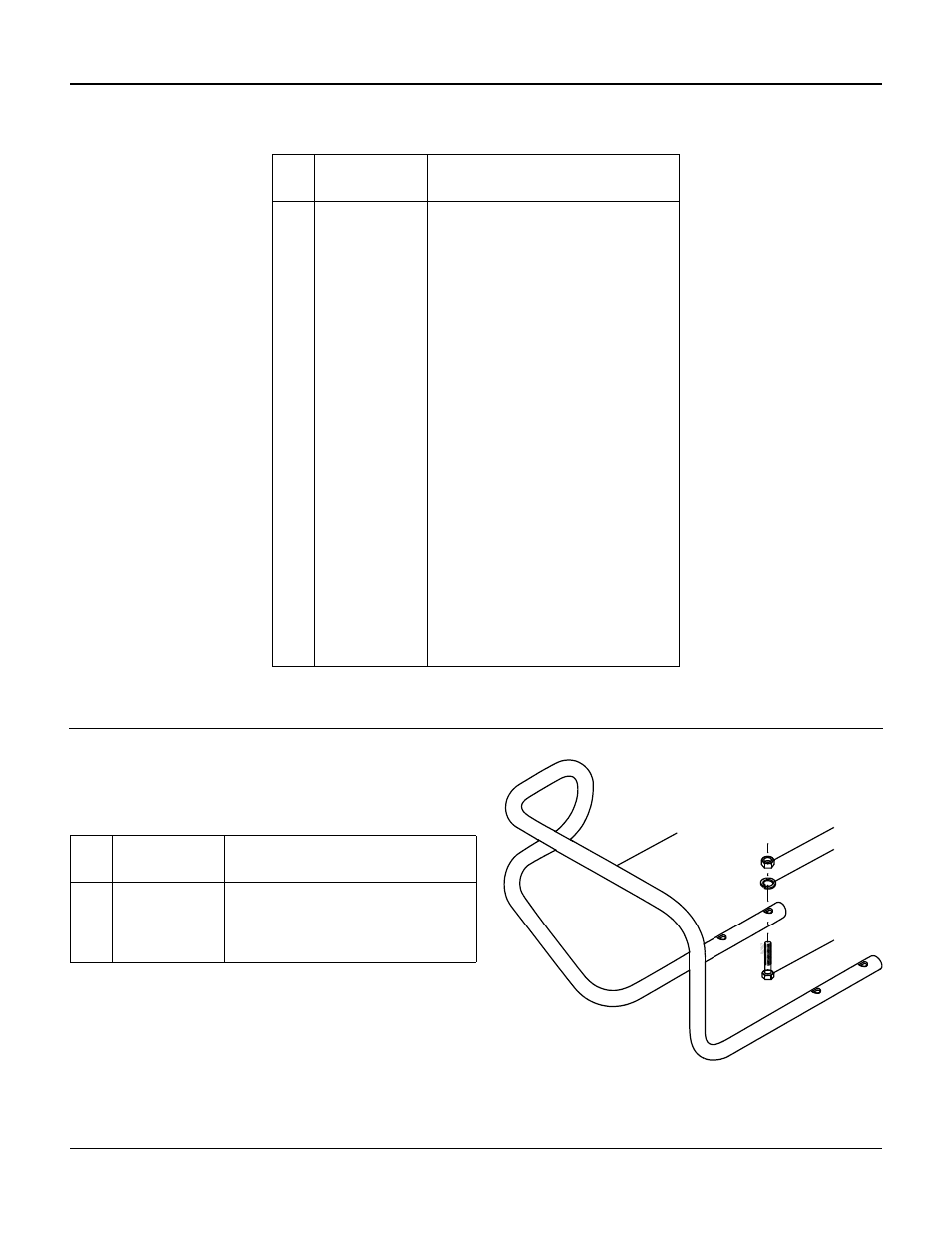

MODELS 630C, 634F & 634A
(A) For Model 630C
(B) For Model 634F
(C) For Model 634A
REF
NO.
PART NO. DESCRIPTION
1 1916719 Cable Assembly, Reverse Clutch(B) (C)
2 1916755 Upper Handlebar
3 747-04210 Bail, Forward Clutch
4 1918745 Cable Assembly, Forward Clutch
5 710-0599 Screw, Self-Tapping,1/4-20 x 1/2
6 710-3008 Screw, Hex, 5/16-18 x 3/4
7 712-3009 Hex Lock Nut, 5/16-18
8 786-04188 Handlebar Support
9 GW-55043 Lower Handlebar
10 786-04200 Panel
11 GW-55044 Tab, Conduit Mount
12 GW-9855 Screw, #10-24 x 2
13 725-0157 Cable Tie
14 736-3050 Flat Washer, 3/8
15 786-04040 Bracket, Reverse Clutch Cable(B) (C)
16 732-04185 Spring, Forward Clutch
17 710-0106 Hex Hd. Screw, 1/4-20 x 1-1/4
18 710-0216 Screw, Hex, 3/8-16 x 3/4
20 710-0805 Screw, Hex, 5/16-18 x 1-1/2
21 712-0121 Hex Nut, #10-24
22 712-0291 Hex Lock Nut, 1/4-20
23 712-3000 Hex Nut, 3/8-16
25 736-0119 Lock Washer, 5/16
REF
NO.
PART NO. DESCRIPTION
1 1918749 Bumper (C)
2 710-0395 Hex Screw, 5/16-18 x 2-1/4 (C)
3 712-0267 Nut, Hex, 5/16-18 (C)
4 736-0119 Lock Washer, 5/16 (C)
1
4
3
2
