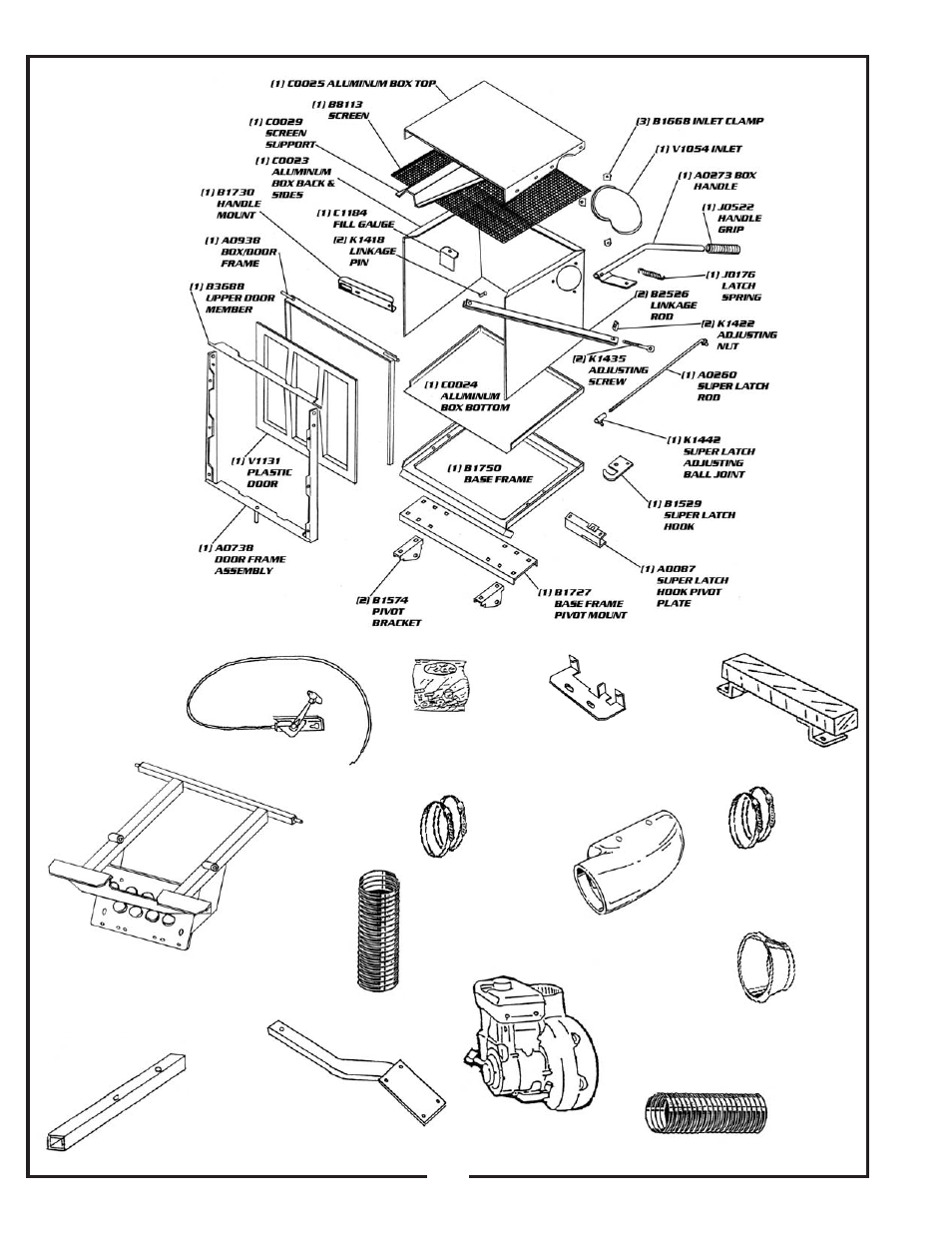

Figure 8 Aluminum
Grass Container
Exploded View
Figure 9 Misc.
Parts Exploded
View
(1)
HB0175
HARDWARE
BAG
(1)
8” x 40”
LOWER
HOSE
(1)
ENGINE/
BLOWER/
BLADE
ASSEMBLY
(2)
J6006
7”-8”
HOSE CLAMP
(2)
J6011
5”-6”
HOSE CLAMP
(1)
E6009
8”
BLOWER
CONE
(1)
A0403
MAIN FRAME
ASSEMBLY
(1)
A0318
ENGINE
MOUNT
TUBE
(1)
A0507
WEIGHT
ASSEMBLY
(1)
A0060
SHORT THROTTLE
CABLE KIT
(1)
B1117
OUTER
ENGINE
MOUNT
TUBE
(1)
B1810
BOOT PLATE
(1)
E1039
BOOT
(1)
6” x 32”
UPPER
HOSE
