TD-W8970N Wireless N ADSL2+ Modem Router User Guide
)
Note:
These clients may obtain public IP addresses.
5. Click Save/Apply to make the entry effective immediately.
)
Note:
If a vendor ID is configured for a specific client device, please REBOOT the client device attached
to the modem to allow it to obtain an appropriate IP address.

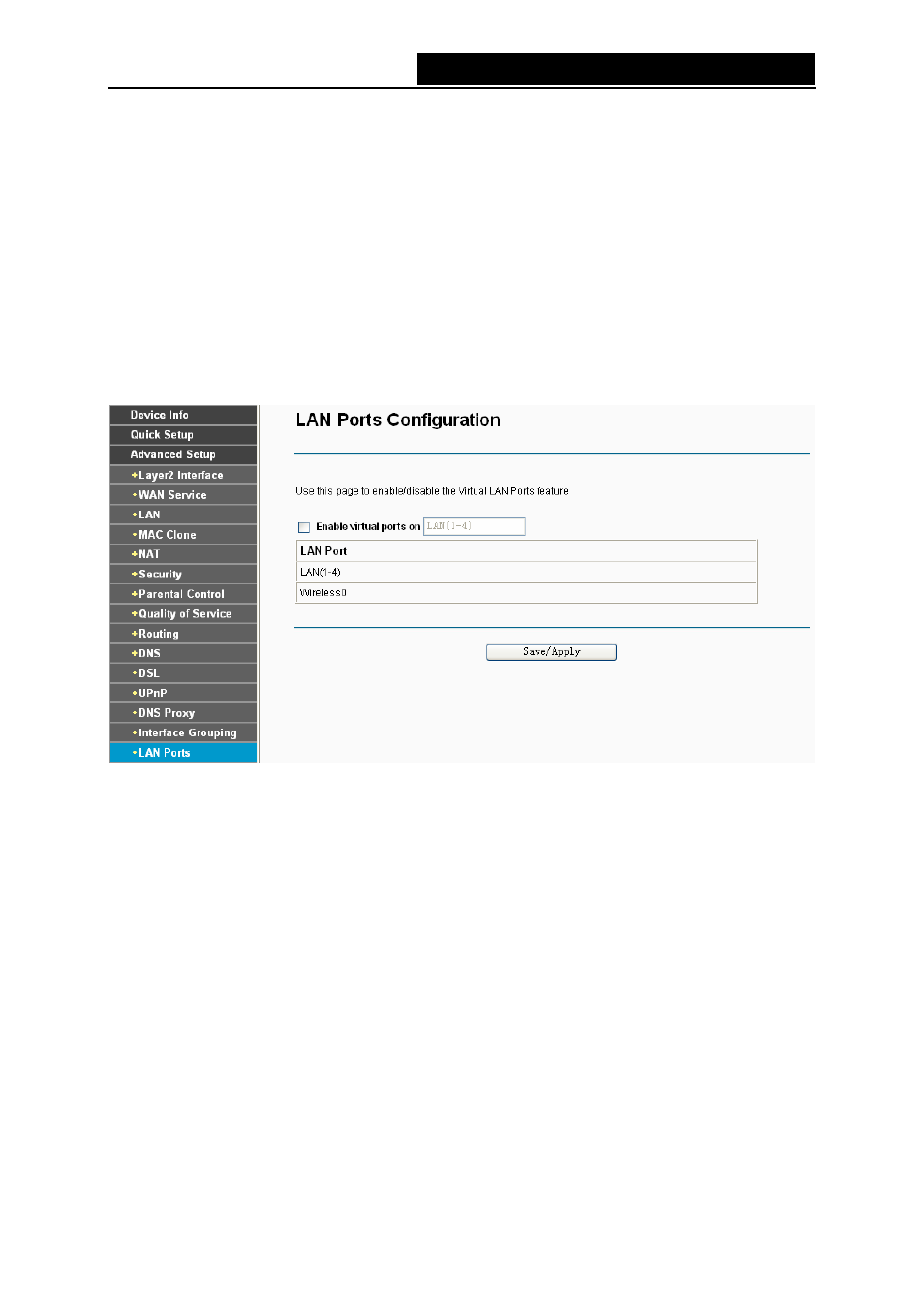

4.4.15 LAN Ports
Choose “Advanced Setup”Æ“LAN Ports”, you can Enable/Disable the Virtual LAN Ports feature
by selecting the checkbox on the screen.
Figure 4-61
4.4.16 IPSec
Choose “Advanced Setup”Æ“IPSec”, you can Add/Remove or Enable/Disable the IPSec tunnel
connections on the screen as shown in Figure 4-62.
59
