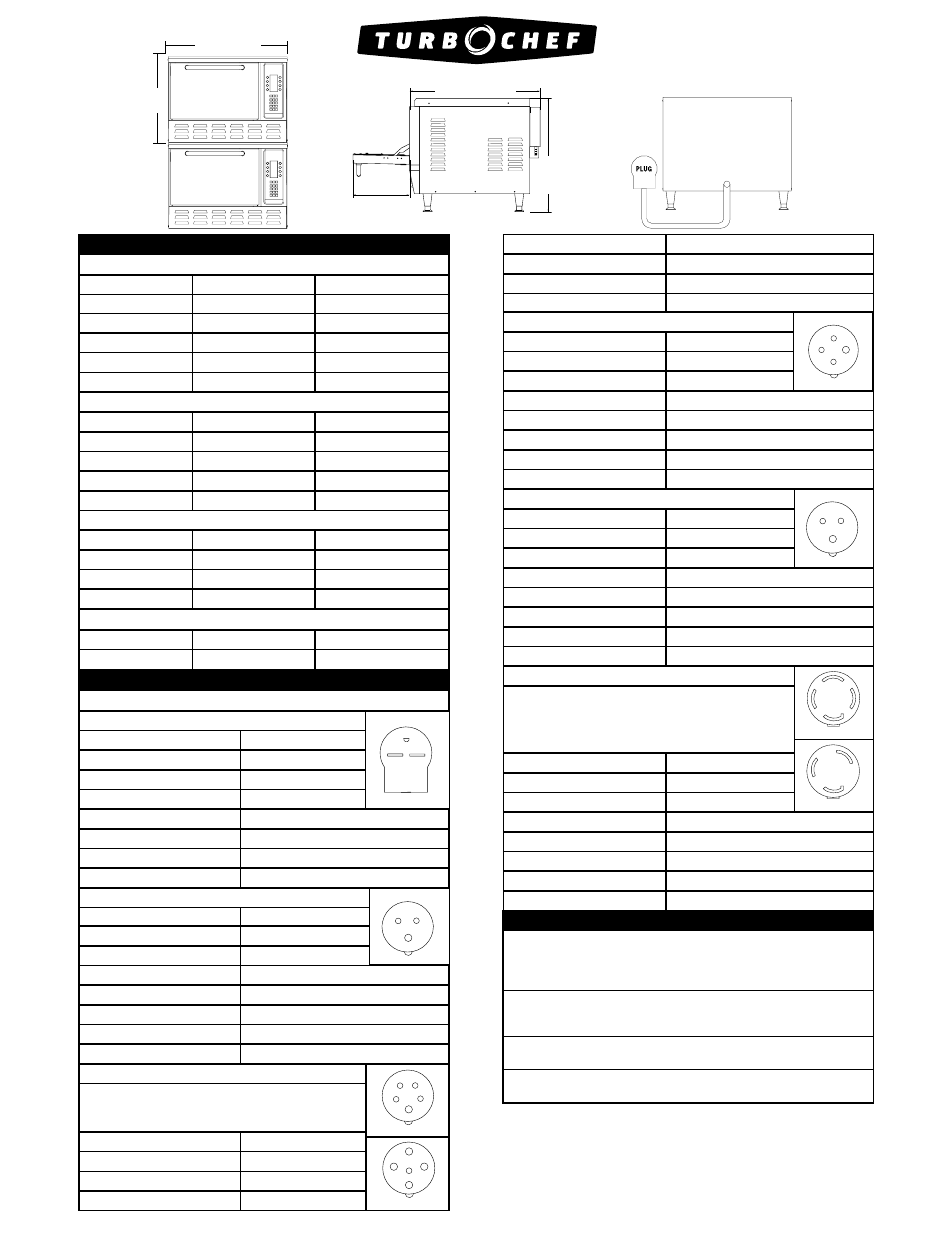

Dimensions
single Units
height 19” 483 mm
on legs 23” 584 mm
Width 26” 660 mm
depth 25.7” 653 mm
with handle 28.2” 716 mm
Weight 190 lbs. 86 kg
stacked Units (stacking Kit Required)
height 38” 965 mm
Width 26” 660 mm
depth 25.7” 653 mm
with handle 28.2” 716 mm
Weight 380 lbs. 172 kg
Cook Chamber
height 8” 203 mm
Width 15.5” 394 mm
depth 14.7” 373 mm
Volume 1.05 cu.ft. 29.9 liters
Wall Clearance (Oven not intended for built-in installation)
Top 4” 102 mm
sides 2” 51 mm
eleCtriCal speCifiCations
nortH ameriCa
NGC (NGC-1180-1)
Phase 1 Phase
Voltage 208/240 VAC
Frequency 60 hz
Current 30 amp
Max Circuit Requirement 30 amp
Plug/Cord NEMA 6-30P; 1.5m, h07RN-F
Max Input 5990/6675 watts
Microwave Input Power 3500 watts
NGCBK (NGC-1180-1K-2020)
Phase 1 Phase
Voltage 220 VAC
Frequency 60 hz
Current 30 amp
Max Circuit Requirement 30 amp
Plug IEC 309, 3-pin, 32 amp
Max Input 6700 watts
Microwave Input Power 3500 watts
eUrope/asia-paCifiC
NGCEW (NGC-1180-1W for standard)
NGCEW (NGC-1180-1W-2024 for Australia/New Zealand)*
NGCKW (NGC-1180-1W-2004 for south Korea)**
Phase 3 Phase
Voltage 400 VAC
Frequency 50 hz or 60 hz**
Current 16 amp
Max Circuit Requirement 20 amp
Plug IEC 309, 5-pin, 32 amp
Max Input 10500 watts
Microwave Input Power 3500 watts
NGCEd (NGC-1180-1d)
Phase 3 Phase
Voltage 230 VAC
Frequency 50 hz
Current 30 amp
Max Circuit Requirement 32 amp
Plug IEC 309, 4-pin, 32 amp
Max Input 10500 watts
Microwave Input Power 3500 watts
NGCuK (NGC-1180-1K)
Phase 1 Phase
Voltage 230 VAC
Frequency 50 hz
Current 30 amp
Max Circuit Requirement 32 amp
Plug IEC 309, 3-pin, 32 amp
Max Input 6700 watts
Microwave Input Power 3500 watts
Japan
NGCJd - 50hz/ 3 Phase (NGC-1180-1d-2005-1)
NGCJd - 60hz/ 3 Phase (NGC-1180-1d-2005-2)
NGCJK - 50hz/ 1 Phase (NGC-1180-1K-2005-3)
NGCJK - 60hz/ 1 Phase (NGC-1180-1K-2005-4)
Phase 1 or 3 Phase
Voltage 200 VAC
Frequency 50 or 60 hz
Current 30 amp
Max Circuit Requirement 30 amp
Plug PsE-marked, 3 or 4-blade, 30 amp
Max Input 10500 or 6700 watts
Microwave Input Power 3500 watts
sHippinG information
U.s.: All ovens shipped within the u.s. are packaged in a double-wall cor-
rugated box banded to a wooden skid.
international: All International ovens shipped via Air or Less than Con-
tainer Loads are packaged in wooden crates.
Box size: 34” x 30” x 30” (864 mm x 762 mm x 762 mm)
Crate size: 37”x 33” x 34” (940 mm x 838 mm x 864 mm)
Item class: 85 NMFC #26770 hs code 8419.81
Approximate boxed weight: 260 lb. (118 kg)
Approximate crated weight: 320 lb. (145 kg)
Minimum entry clearance required for box: 30.5” (775 mm)
Minimum entry clearance required for crate: 33.5” (851 mm)
*All Au-New Zealand ovens with clips allow for 5 pin plug.
TurboChef recommends installing a type d circuit breaker for all installations.
standard
Australia/New Zealand
3-Phase
1-Phase
TORNA
d
O ®
26” (660 mm)
11.25” (286 mm)
25.7” (653 mm)
23”
(584 mm)
19”
(483 mm)
