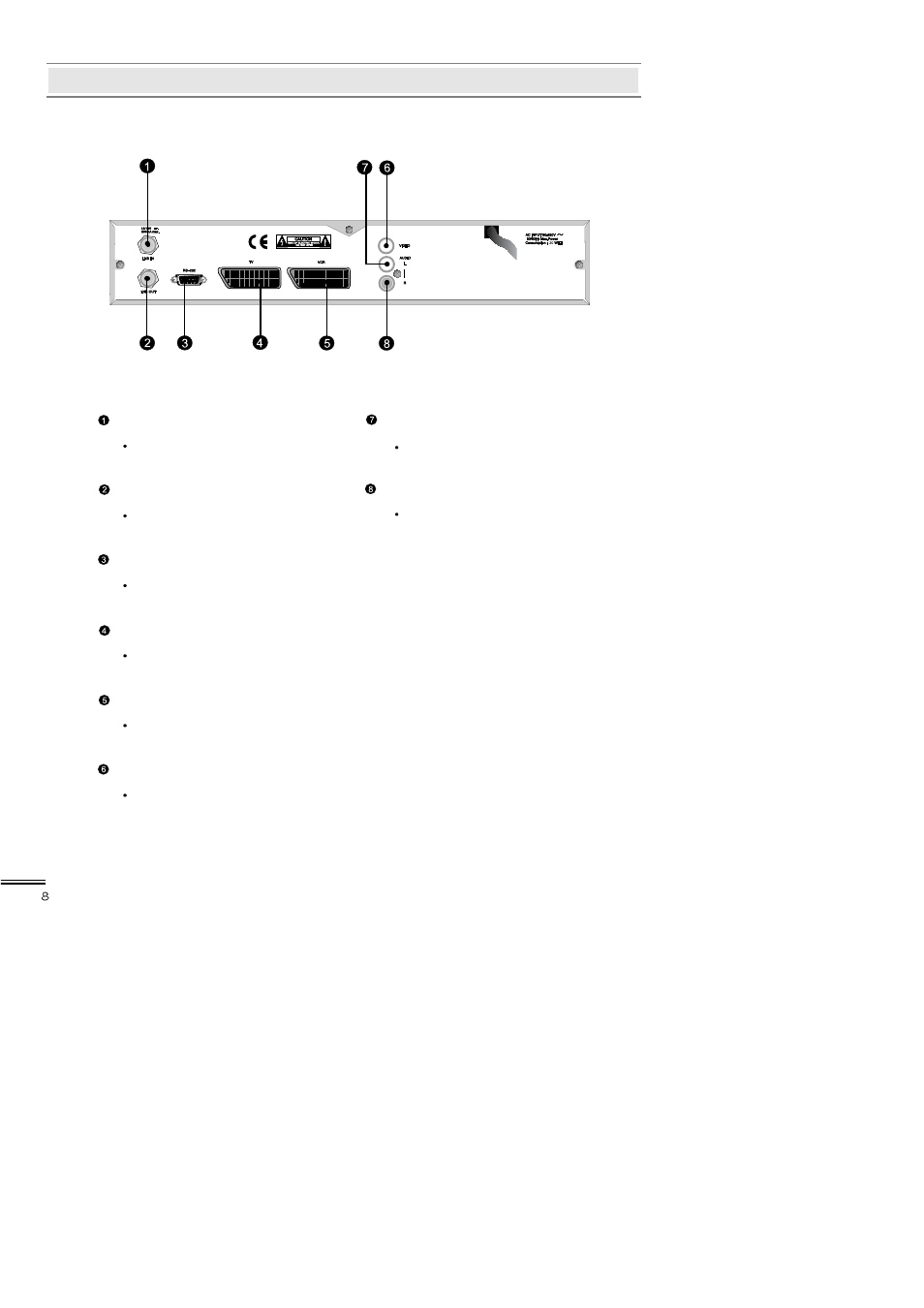

FRONT / REAR PANELS
LNB IN
Connects the satellite antenna cable.
LNB OUT
Use it to connect to another STB.
RS232
Upgrades the STB Program & software
TV SCART
Connects the TV SCART
VCR SCART
Connects the VCR SCART
VIDEO OUTPUT
Video output
AUDIO-LEFT OUTPUT
Audio output.(WHITE)
AUDIO-RIGHT OUTPUT
Audio output.(RED)
FRONT
/REA
R
P
A
NEL
S
(SCART model)
