TPA2008D2 EVM PCB Layers
3-3 Reference
3.2 TPA2008D2 EVM PCB Layers

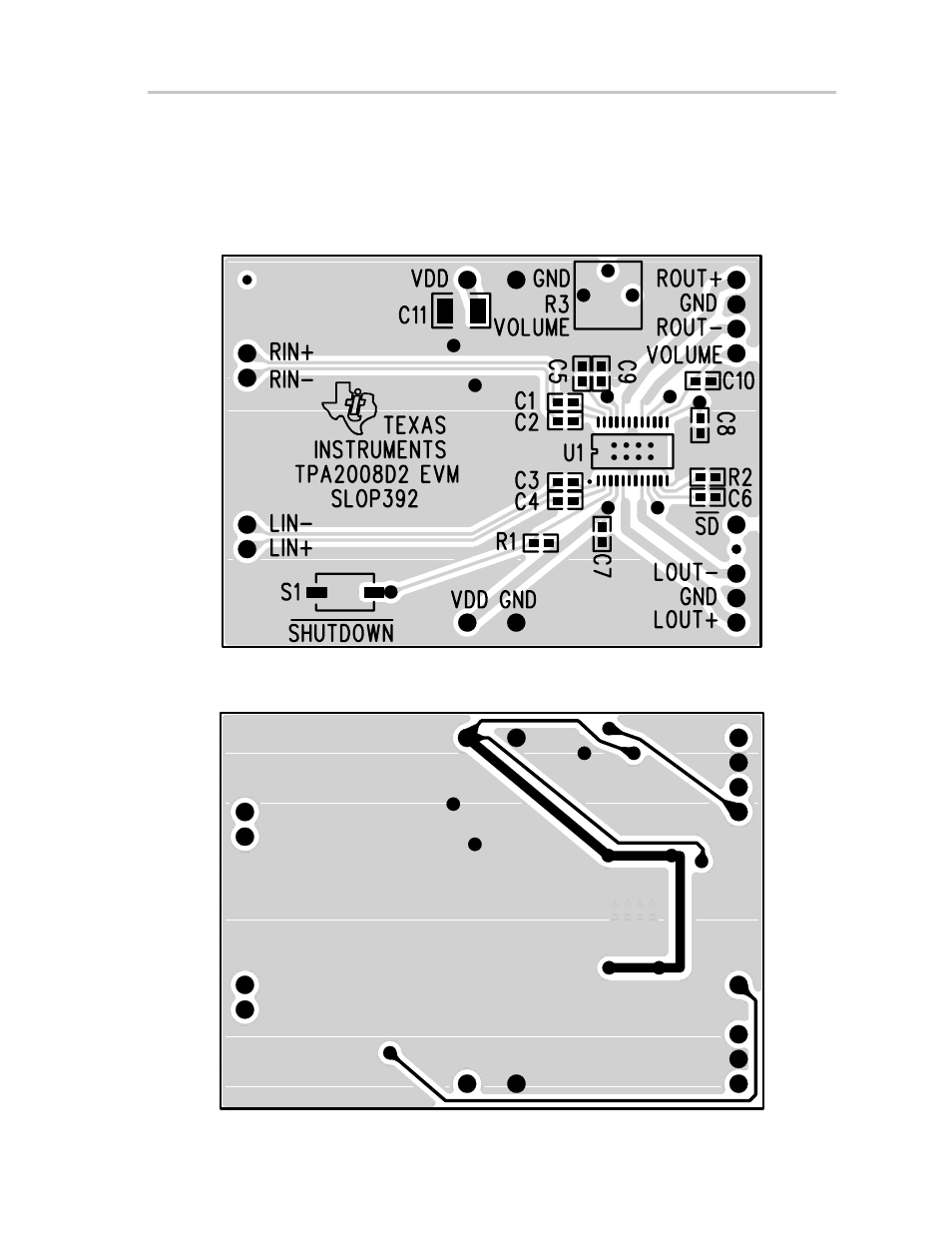

Figure 3–2 and Figure 3–3 depict the TPA2008D2 EVM PCB layers. These
drawings are not to scale. Gerber plots can be obtained from any TI sales
office.
Figure 3–2. TPA2008D2 EVM Top Assembly
Figure 3–3. TPA2008D2 EVM Bottom Assembly
