Antenna connections, Component video out – Toshiba SD-C67HTSU User Manual
Page 14
14
+
-
FRONT REAR SUB REAR FRONT
R R WOOFER CENTER L L
MONITOR
OUT
COMPONENT
VIDEO OUT
AV IN
L
R
S-VIDEO
OUT
OPTICAL IN
1080i
HDMI
FM
AM
SPEAKERS
AUDIO
Y
Pb
Pr
VIDEO
COAXIAL
IN

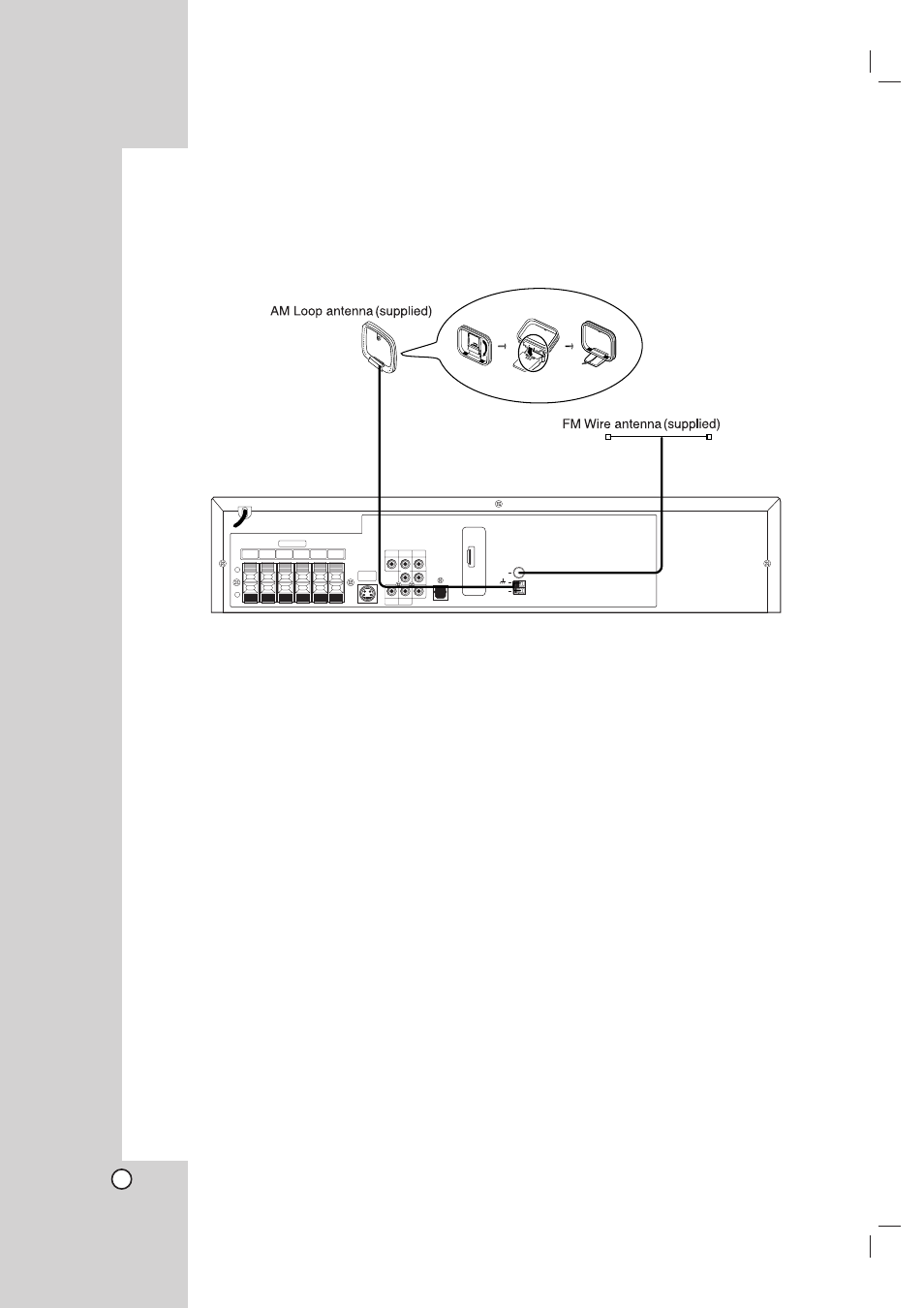

Antenna Connections
Connect the supplied FM/AM antenna for listening to the radio.
Connect the AM Loop antenna to the AM antenna connector.
Connect he FM Wire antenna to the FM antenna connector.
Notes:
To prevent noise pickup, keep the AM Loop antenna away from the DVD/CD receiver and other components.
Be sure to fully extend the FM wire antenna.
After connecting the FM Wire antenna, keep it as horizontal as possible.
