Toastmaster CONVEYOR TC2000 - Manual (Page 5)

5
TSTAT
N.O.
TSTAT
N.C.
FAN
MOTOR
FUSE 0.25 A
RFI FILTER
CONVEYOR
SPEED
CONTROLLER
UPPER HEATING ELEMENT
LOWER HEATING ELEMENT
POT
100K Ω
UPPER TEMP
CONTROL
LOWER TEMP
CONTROL
C
TERMINAL
BLOCK
POT 1
100K Ω
UPR
TEMP
CTRL
UPPER
HEATING ELEMENT
POT 2
100K Ω
LWR
TEMP
CTRL
LOWER
HEATING ELEMENT
CONTACTOR
TSTAT
N.O.
TSTAT
N.C.
FAN
POWER
ON/OFF
(I/O)
SWITCH
RFI
FILTER
MOTOR
FUSE
0.25 A
CONVEYOR
SPEED
CONTROLLER

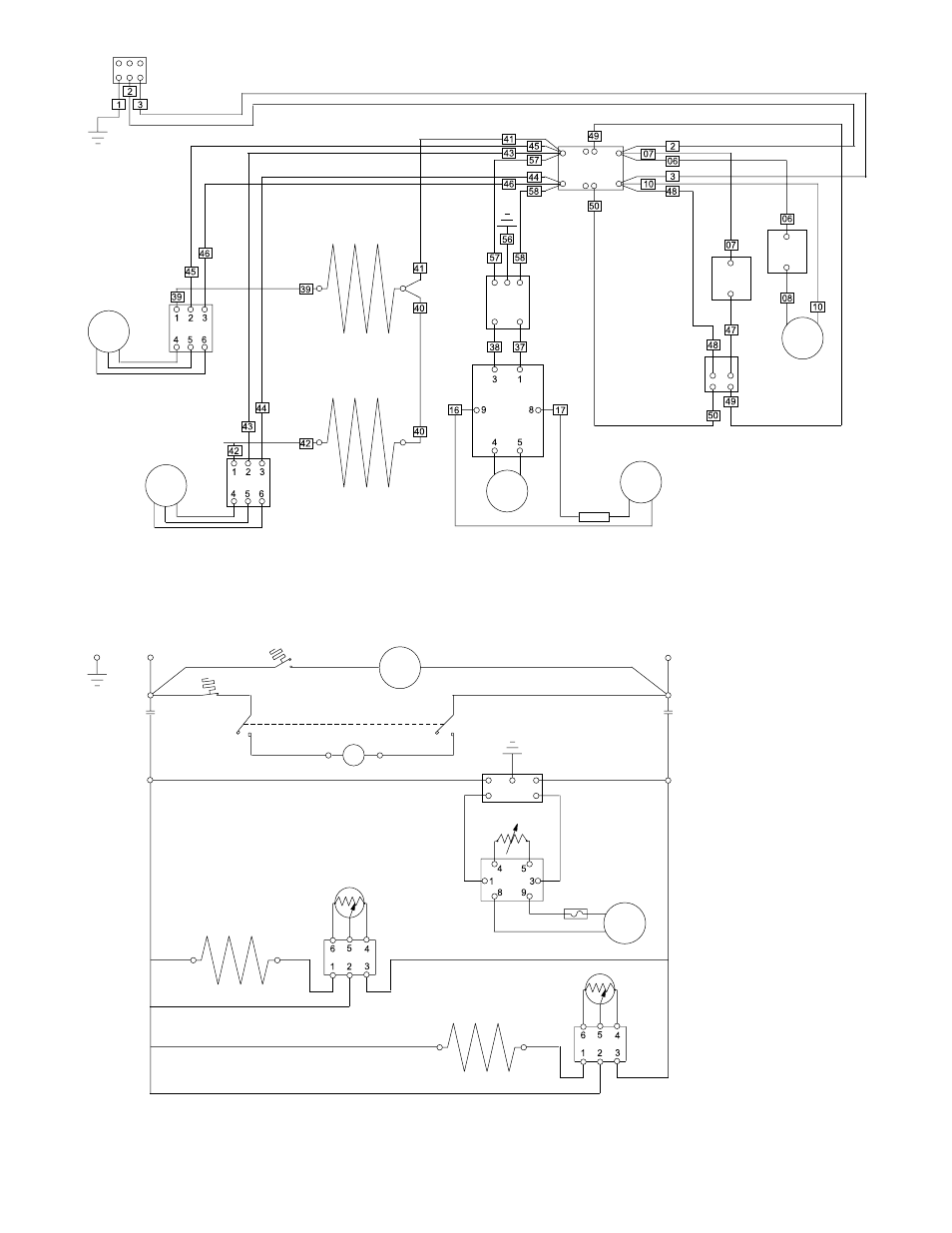

Wiring Diagram - Model TC2000, 230V, 1-Phase
Electrical Schematic - Model TC2000, 230V, 1-Phase Electrical
Specifications:
230V, 50Hz, 1 Ph,
5.0kW, 21.7A
Cord and Plug
Information:
Kabelmetal-type
HO7RN-F cord with
3 x 4,0mm conductors and
moulded-on IEC 309 plug.
Plug is rated 230VAC/32A.
POT
1M Ω
N L E
POWER ON/OFF (I/O) SWITCH
2 POLE
POT
1M Ω
POT
100K Ω
(L1)
C2
(L2)
C1
