The following table gives the predicted downward angle of TQ-445 enclosures when using the FB-
12 flybar.
Attachment position Vertical angle (negative angle denotes upwards)
Hole number 1 (front of cabinet) -29 °
Hole number 2 -23 °
Hole number 3 -17 °
Hole number 4 -10 °
Hole number 5 -3 °
Hole number 6 4 °
Hole number 7 11 °
Hole number 8 18 °
Hole number 9 24 °
Hole number 10 30 °
Hole number 11 35 °
Hole number 12 (rear of cabinet) 40 °
Flying frames enable Qlight™ series loudspeakers to be suspended from ceilings and lighting
grids with virtually unlimited angle adjustment, including upward angles. These are available for
the TQ-308, TQ-310, TQ-315 and TQ-445. To fit, remove the countersunk screws from the sides of
the cabinet, position the frame and secure with the bolts provided. Angle the loudspeaker as
required and tighten the handwheels.

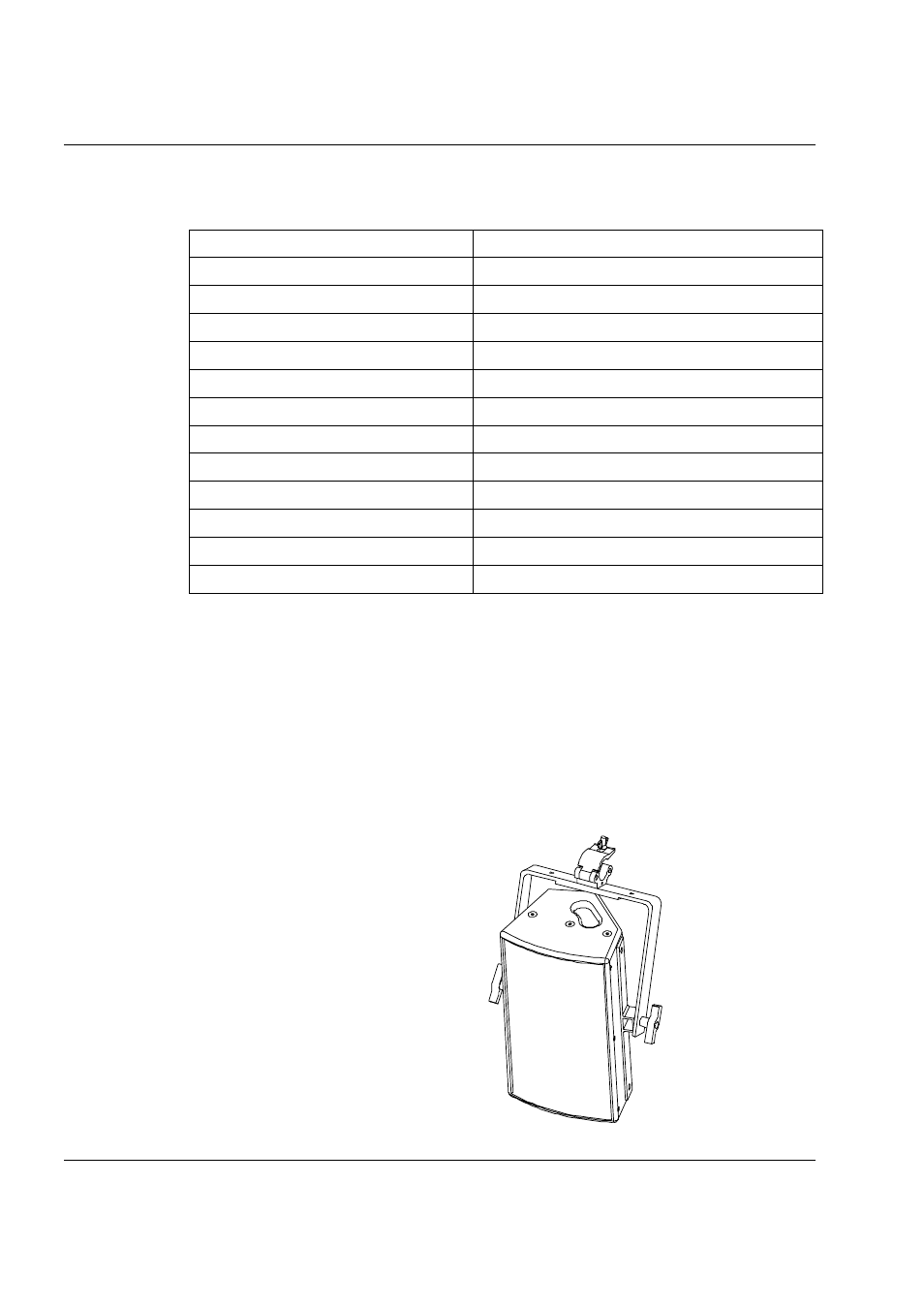

FH-308 flying frame
