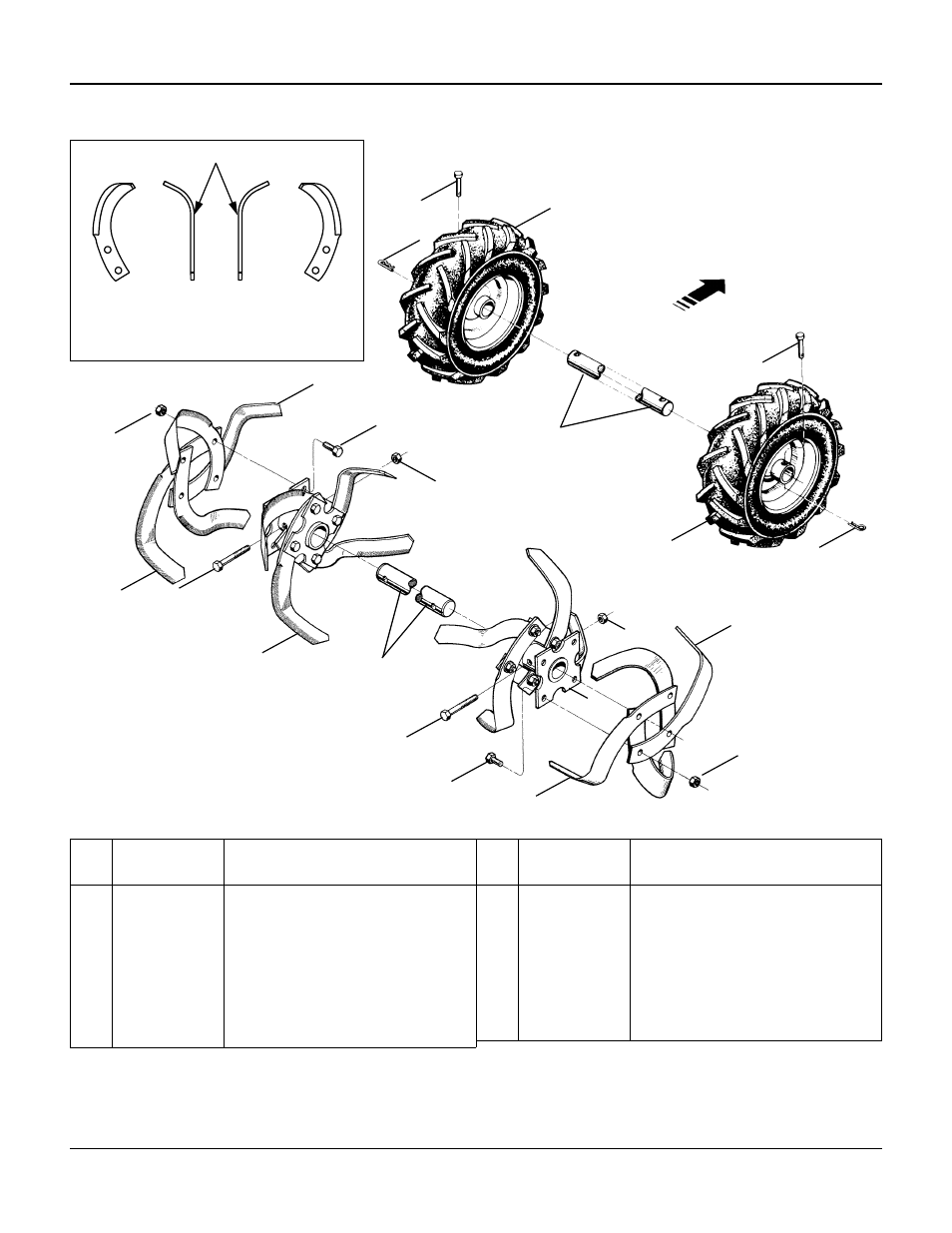

MODELS 630C, 634A & 634K
FRONT
REF
NO.
PART NO. DESCRIPTION
1 710-0514 Hex Hd. Screw, 3/8-16 x 1, Grade 5
2 GW-50049-02 Single Bolo Tine - Left Hand (A) (B)
3 712-3000 Hex Lock Nut, 3/8-16
4 710-0347 Hex Hd. Screw, 3/8-16 x 1-3/4
5 GW-50049-01 Single Bolo Tine - Right Hand (A) (B)
6 1916747 Tine Holder (B)
1915075 Tine Holder (A)
7 1917487 Wheel & Tire Ass’y — Left/Right Side (B)
734-04162 Wheel & Tire Ass’y — Left Side Only (A)
8 734-04161 Wheel & Tire Ass’y — Right Side Only (A)
9 GW-9380 Clevis Pin,.312" x 1-3/4"
10 GW-9338 Hair Pin Cotter
11 712-04065 Flange Lock Nut, 3/8-16 (A)
— GW-1901 Bolo Tine Replacement Set (Incl. eight
right-hand tines, eight left-hand tines and
required hardware. (A) (B)
REF
NO.
PART NO. DESCRIPTION
10
9 7
9
10
7, 8
WHEEL SHAFT
3
5
TINE SHAFT
3 (B)
1
6
4
4
2
5
2
1
3 (B)
3
2
RIGHT-HAND TINE LEFT-HAND TINE
NOTE: Identify Left and Right sides of tiller by standing in
operator position and facing direction of forward travel.
Hold Tines With Blunt End Toward You
11 (A)
11 (A)
(A) For Model 630C
(B) For Model 634A
and 634K
