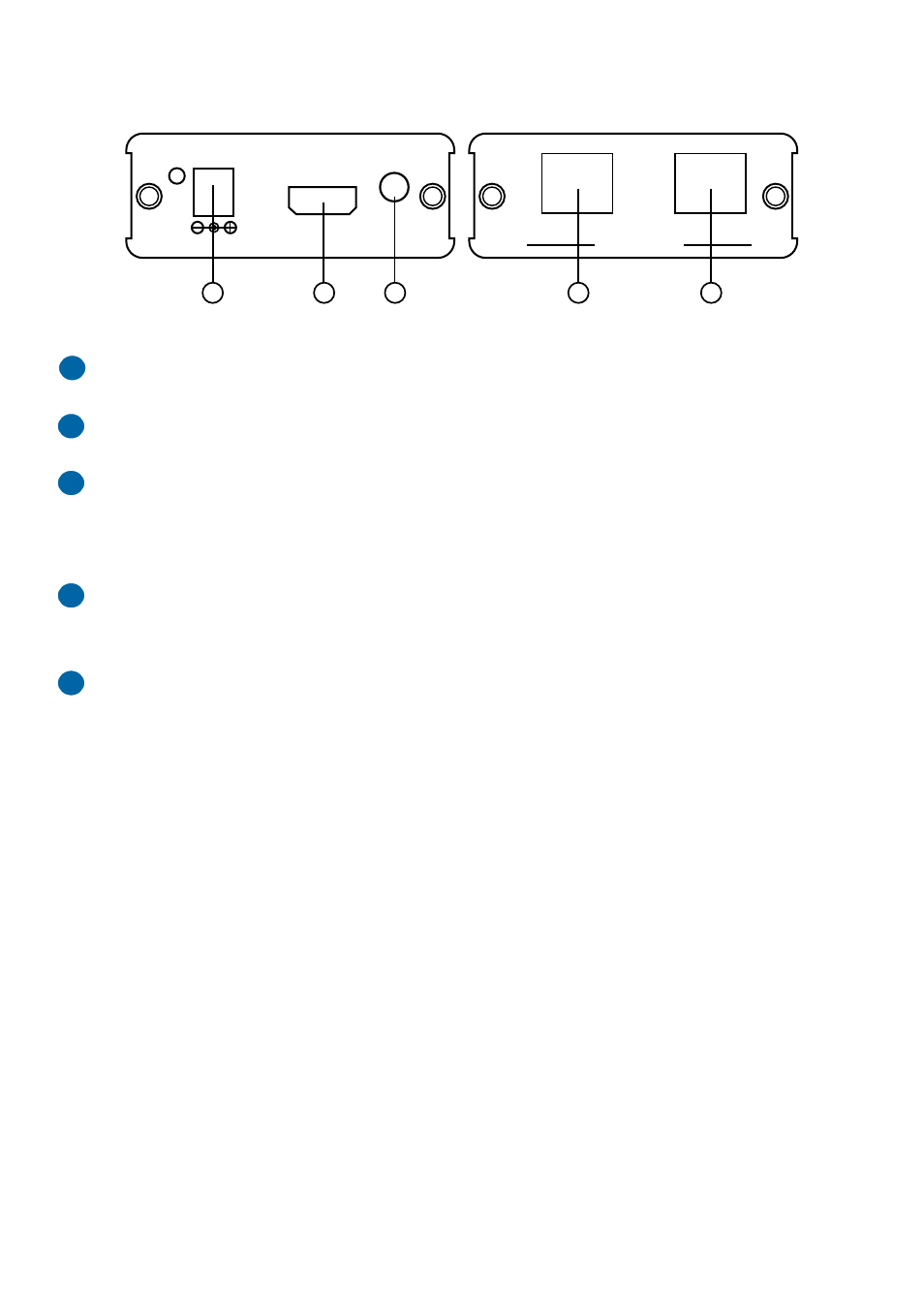

4.2 Receiver
4
Power 5V: Connect the 5 volt power supply included in box
HDMI Output: Connect an HDMI cable from your Display
IR Receiver: Connect the IR receiver cable (included) to this input. Place the
eye in front of the display, then use the existing remote to control the source
equipment. The IR receiver accepts a frequency range from 20 KHz to 60 KHz.
VIDEO CAT6 Input: Connect the Video output of the Transmitter to the video
input of the Receiver using CAT6E / 23AWG / solid cable.
DDC CAT6 Input: Connect the DDC output of the Transmitter to the DDC input
of the Receiver using CAT6 cable. CAT5 cable can be used if available with the
same result.
1
2
POWER 5V
VIDEO DOC
HDMI INPUT
Transmitter
1 2 3
CAT6 OUTPUT
4 5
1 2 3 4 5
POWER 5V
HDMI OUTPUT
VIDEO DOC
CAT6 INPUT
3
4
5
