Standard Blower Package
The TEFC energy efficient blower is designed for horizontal air
flow and mates with the air purification system to provide a
uniform distribution of air. The blower wheel is steel, backward
inclined, welded construction.
Optional UpBlast Blower
The NFPA 96 UpBlast fan is designed to mate with the air purifica-
tion system and provide uniform air distribution. It is a centrifugal
UpBlast exhaust fan, with drain, in compliance with UL 762 for
kitchen exhaust applications containing grease-laden air. The blower
wheel is steel, backward inclined, welded construction.
Side Access Filter Housing
The flexibility of the Media section provides an efficient means
for high efficiency filtration, as a prefilter or after filter, depend-
ing on your requirement. This section is designed to house a
variety of mechanical filters that may be required in your appli-
cation. The housing allows for various filter combinations that
are tailored to your specific needs, such as HEPAs, 95% bags,
mini-pleated cartridges or other media. The heavy-guage dual-
access housings are supplied with industrial-grade hardware.
Side Access/Final Filter Section
Unlike particulate filters, odors in the form of undesirable gases
and vapors are most commonly removed from the air stream
by the process of adsorption that is enhanced by multi-
faceted porous surfaces of certain materials. Filter trays of
activated carbon or optional potassium permanganate
pellets effectively facilitate the adsorption of these odors and
gaseous contaminates.

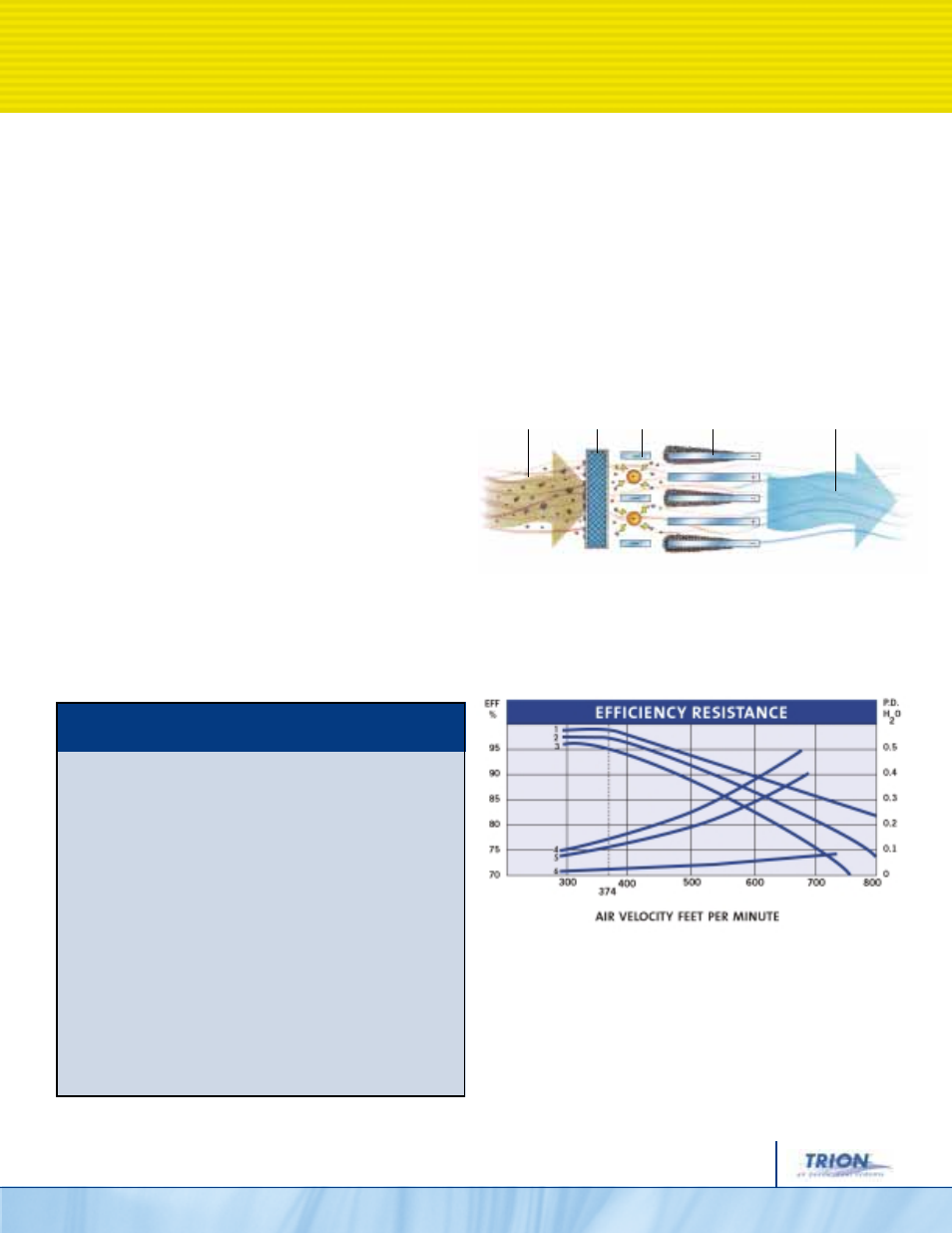

Efficiency-Curves 1, 2 and 3
1. Overall DOP (Dioctylphthalate) efficiency
using 10 Stage Cascade Impactor
2. ASHRAE Standard 52 Dust Spot Test
Method Atmospheric Air
3. 0.3 Micron DOP efficiency using 10
Stage Cascade Impactor
Pressure Drop Across Unit-Curves 4, 5 and 6
4. Cell with 40% open perforated plate front and rear
5. Cell with 1”metal mesh filter front and rear
6. Cell only
AIR VELOCITY FEET PER MINUTE
Principle of Operation
Dirty Air Pre-Filter Ionizer Collector Clean Air
Electronic Air Cleaning
