Design Efficiencies & Operational Reliability
3
• Trion Quality The same high quality that Trion provides on ALL of the US Navy submarine fleet
since 1947 as a sole supplier of air cleaning equipment to the world’s navies.
• NFPA Qualified Designed to NFPA 96 standards for kitchen exhaust.
• ETL Listed ETL approved to UL standard 867.
• Sectional Design Built-up design allows units to be tailored to your exact requirements.
• Smoke and Odor Control Components effectively remove both liquid and solid particulate as well as gas and odor.
• Complete System Design One central system to effectively treat virtually any application for kitchen or industrial exhaust air.
• High Efficiency Cleaning Up to 99% efficient, per DOP or ASHRAE test methods.
• Spiked Ionizer Design Eliminates common wire breakage and replacement, as seen in wire and other ionizer cell designs.
• Heavy Duty Cell Design The most durable and efficient cell design on the market insures long term performance and reliability.
• Automatic Cleaning Programmable Logic Controller (PLC) automates the cleaning process which reduces
maintenance costs and insures efficient air cleaning at all times.
• Simple to Service Designed for easy serviceability from either side of cabinet, as specified.
• Optional Fire Suppression Available on all systems to meet your specific requirements.
• Ease of Installation System design makes installation simple and requires no field assembly. Just attach your
ductwork, electrical connection and plumbing, and it’s done.
Return
Air
Make-up
Air Tempering
Coils
EAC with
Prefilters Conditioning
Coils
Clean
Conditional
Air
System
Blower
Fugitive Contaminate - Multiple Overhead
Discharge through Cental Trunk Line
Multiple Source Captured Contaminate
Hooded to Main Trunk Line
Multiple Source Captured Contaminate
Hooded to Common Mixing Plenum
Central System
Kitchen Exhaust
(Weatherproof)
Fugitive Contaminate - Low Column
Ducted Discharge

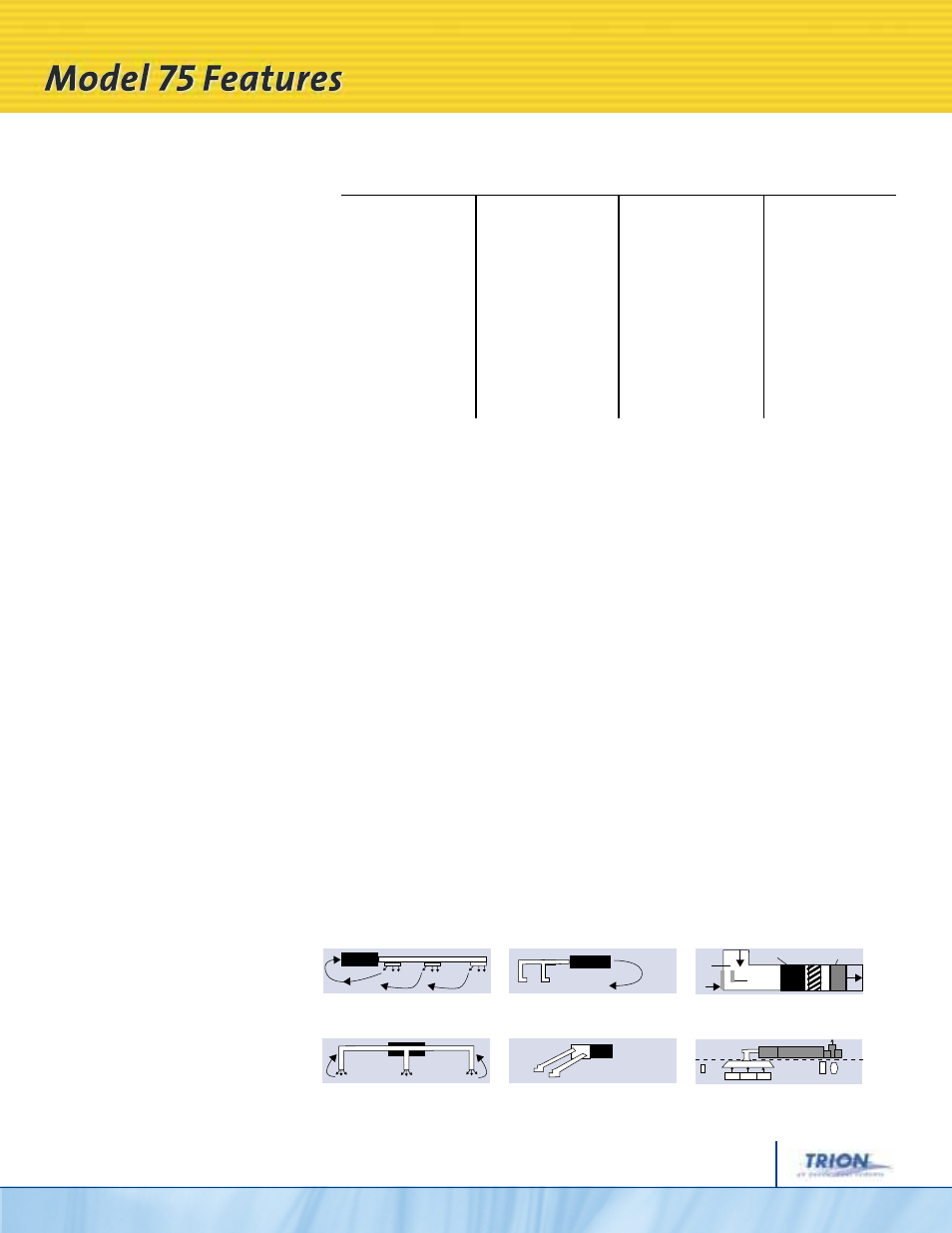

Typical System Arrangements
The Model 75 readily adapts to the
various air collection methods.
Feature/Benefits
• Customized for specific applications
• Effective on airborne solids, liquids
and odors
• Available in various capacity ranges
• Factory assembled, built-up construction
• Integral automatic cleaning system
• Optional fire suppression system
• ETL and UL listed
• Designed for: simplified installation,
ease in service, NFPA 96 standards
Model 75 Applications
Oil Mist:
Machine Shops
Cold Heading
Screw Machines
Foundry
Presses
Machining Centers
Heat Treating
Tenter Frames
Smoke:
Welding
Presses/Forging
Curing
Rubber
Manufacturing
Plasticisers
Heat Treating
Kitchen Exhaust:
Grease
Smoke
Odors
Wood-fired
Cookers
HVAC:
Clean Rooms
Return Air
Outside/Makeup Air
Lounges
Bars
Smoking Rooms
Casinos
Indoor Gun Ranges
