14
Index to Parts and Controls (Continued)
Introduction

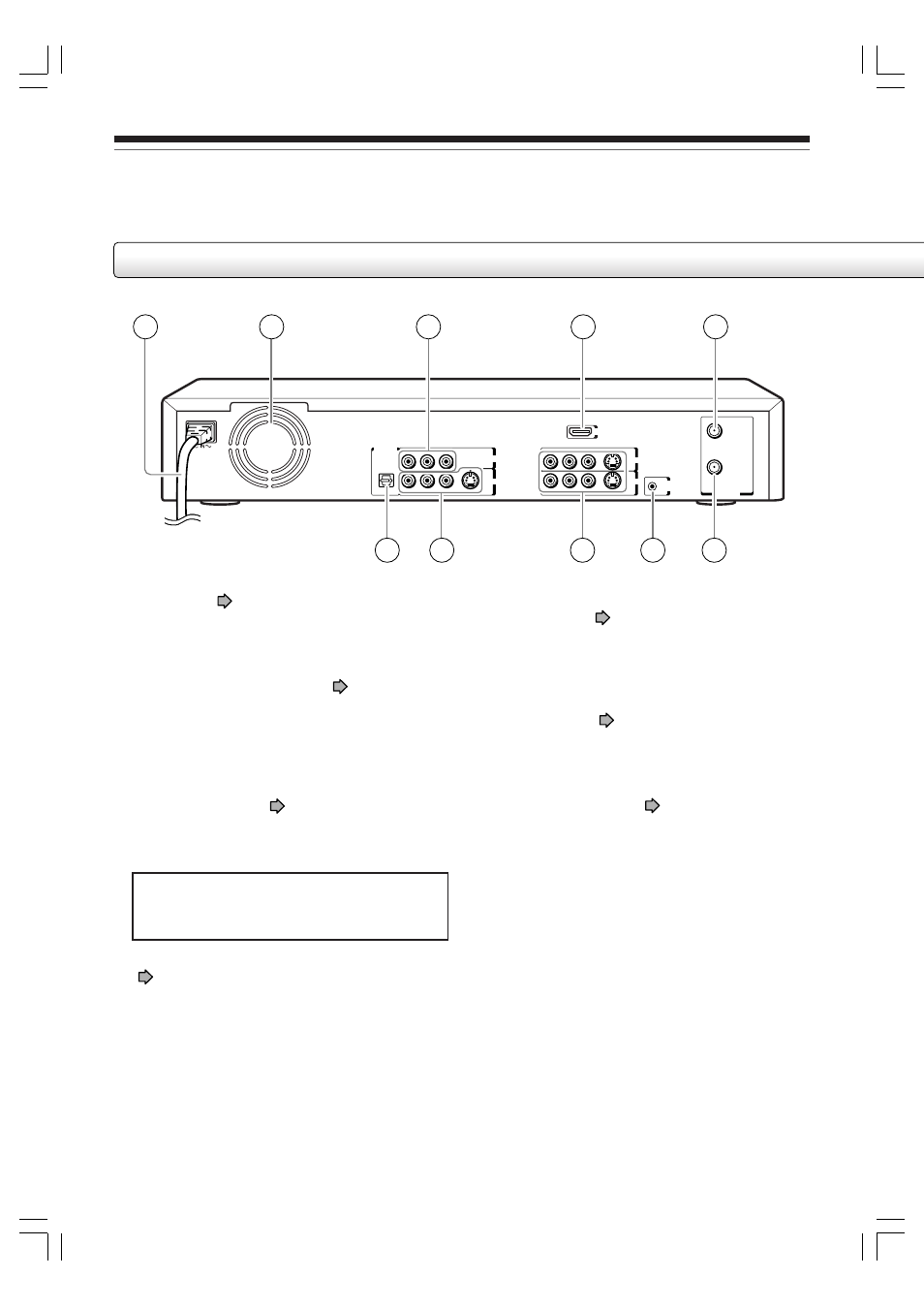

Rear panel
VHF / UHF
RF IN
(FROM ANT.)
R L VIDEO S-VIDEO
R L IR VIDEO S-VIDEO
CHANNEL
CHANGE
DIGITAL AUDIO
OUTPUT
BITSTREAM/PCM
OPTICAL R L VIDEO S-VIDEO
RF OUT
(TO TV)
Y P B P R
INPUT1 COMPONENT OUTPUT
OUTPUT INPUT3
HDMI OUTPUT
1 3 2 5 4
9 8 10 7 6
6 DIGITAL AUDIO OUT BITSTREAM/PCM
OPTICAL jack page 29 in “INSTALLATION
GUIDE”
Use this to connect the recorder to an audio
receiver equipped with an optical digital audio
input jack.
7 OUTPUT jacks
page 21, 23, 24, 28 in
“INSTALLATION GUIDE”
Outputs video and audio signals to a connected
TV or amplifier.
8 INPUT1/INPUT3 jacks page 39
Use this to connect the recorder to output jacks of
external devices such as another player or
camcorder.
1 Power cord page 21 in “INSTALLATION
GUIDE”
2 Ventilation fan
3 COMPONENT OUTPUT jacks page 28 in
“INSTALLATION GUIDE”
Outputs video signals to a connected TV or
monitor.
Connects to a TV or monitor equipped with
component video jacks.
4 HDMI OUTPUT jack page 26 in
“INSTALLATION GUIDE”
Use this to connect the recorder to a HDMI
compatible TV or monitor.
5 VHF/UHF RF IN (FROM ANT.) input socket
page 20 in “INSTALLATION GUIDE”
Connects to an antenna or cable signal.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
