Rs232 hardware connections – Theta Digital Intrepid User Manual

Page 17

background image

11

RS232 Hardware Connections

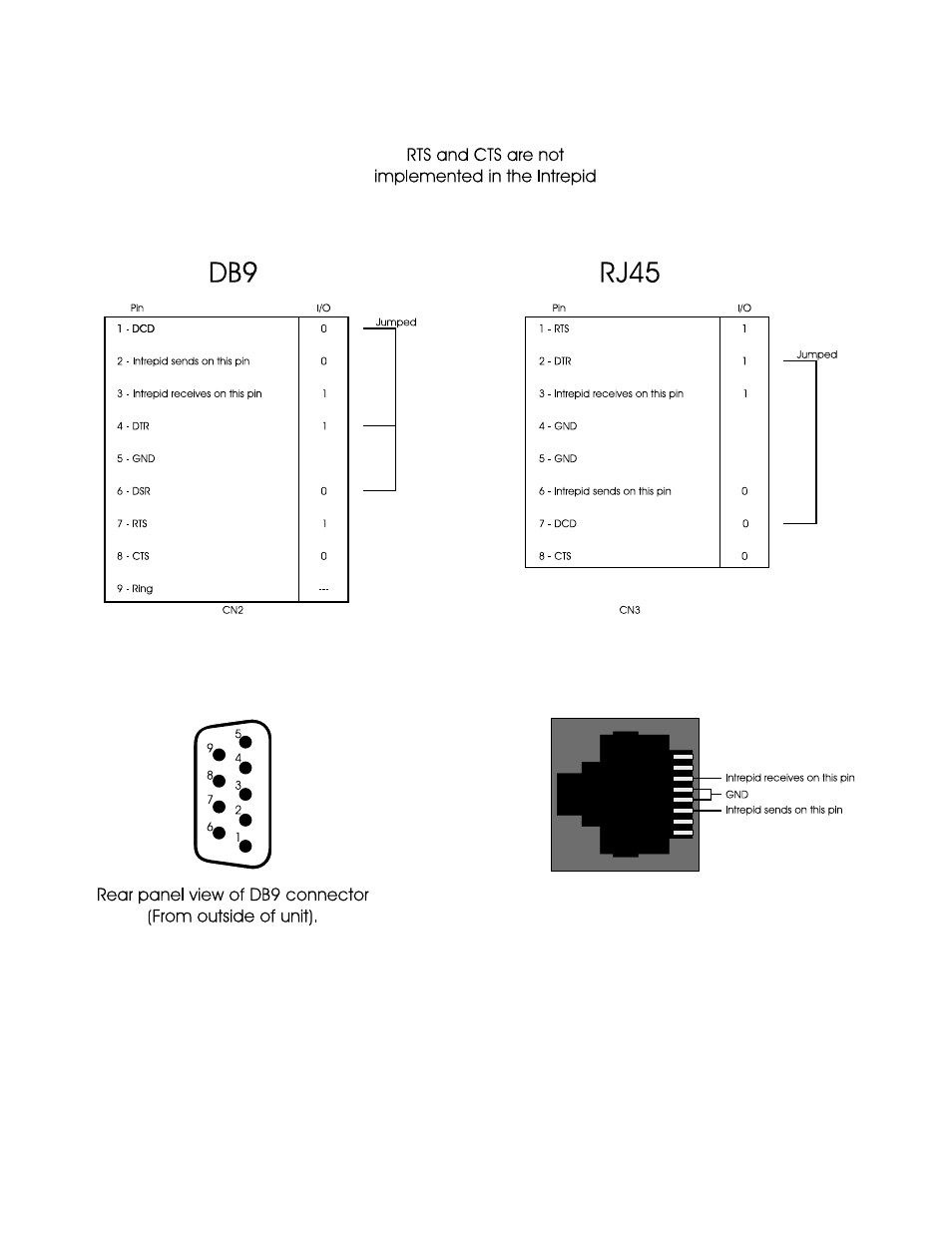

Figure 5 – Intrepid RS232 Jack Pinout
