13
Framing should be
constructed of 2 X 4
lumber or heavier.
Model A B C D E
VENTED VENTED
TOP REAR
QV-ST 46 40 1/4 41 1/2 23 1/4 45 29 7/8
QV-PIER 43 1/4 44 41 1/2 23 1/4 45 29 7/8

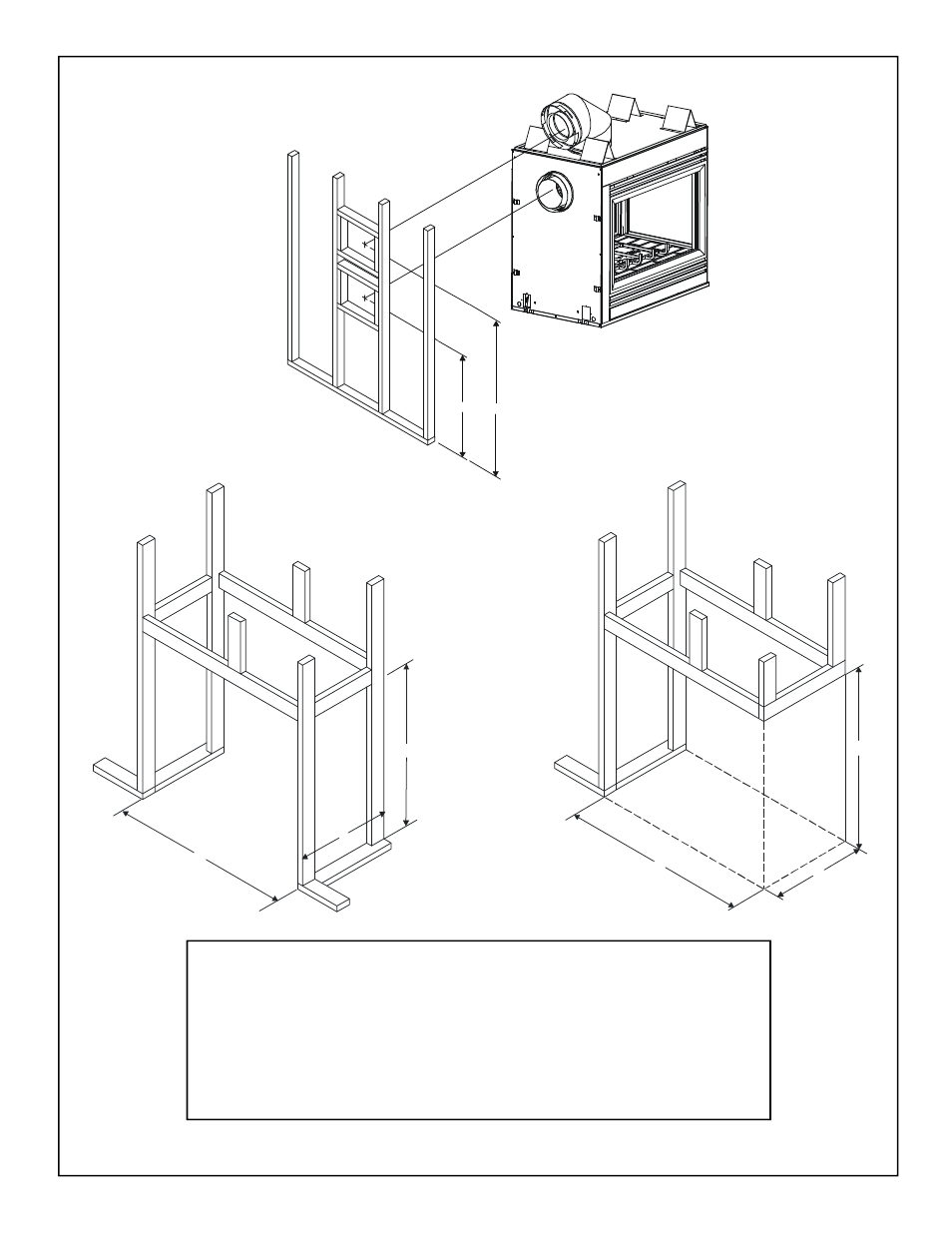

Figure 4. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Shows center of 12” x 12” vent framing holes
for top and rear venting. The center of the
hole is one inch (25.4mm) above the center
of the horizontal vent pipe.
B
C
A
A
C
B
D E
QV-ST
QV-PIER
