LISTINGS AND SPECIFICATIONS
QUADRA-FIRE 1100-I pellet inserts are safety tested and listed with Warnock Hersey International to UL 1482, ULC S627, APFI,
and Oregon Administrative rules 814-23-900 through 814-23-909.
INSTALLATION

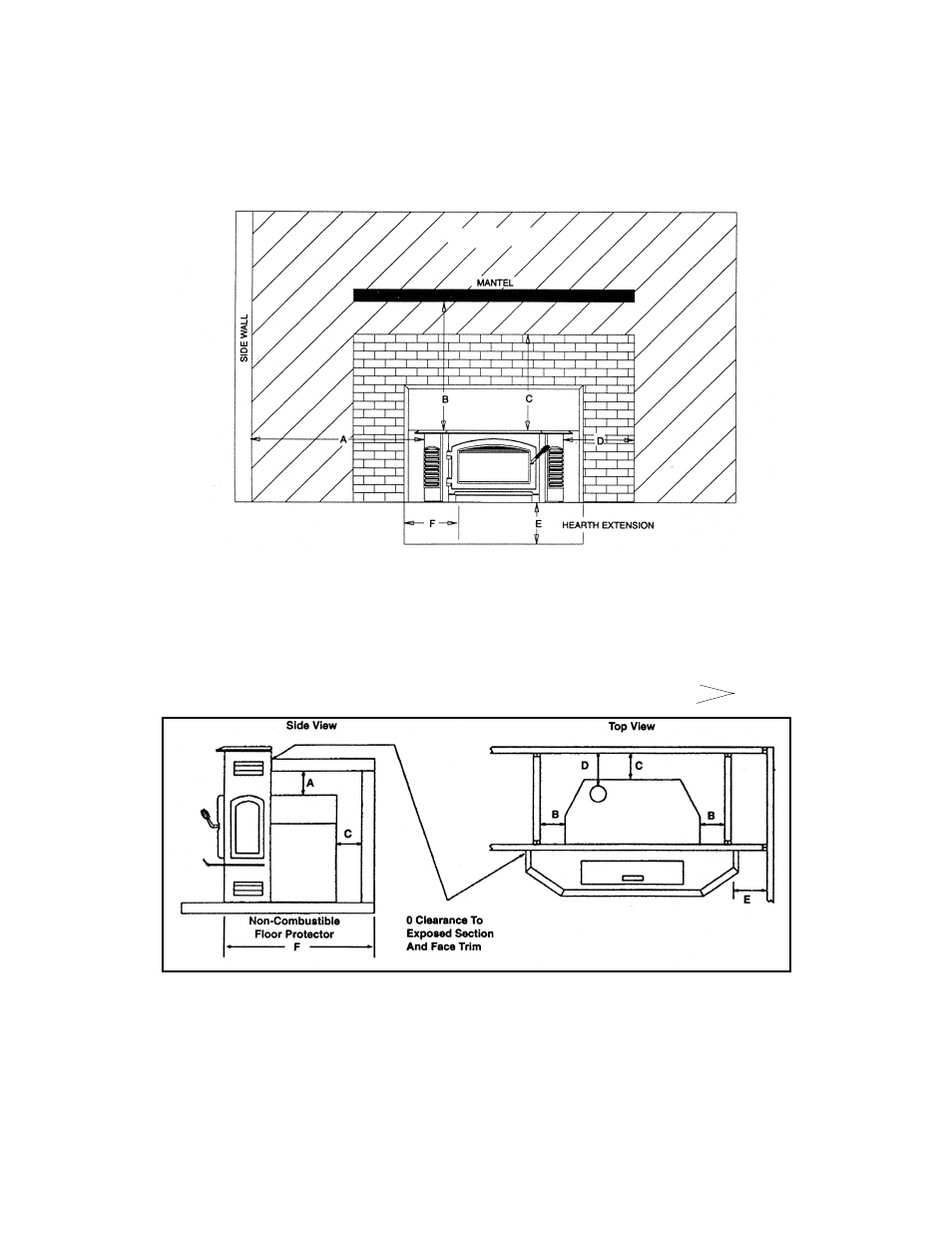

MASONRY AND ZERO CLEARANCE
A Insert side to combustible 2” (50mm)
B Insert top to mantel 9” (230mm)
C Insert top to face trim 0” (0mm)
D Insert side to face trim 0” (0mm)
E Floor protection/hearth extension 6” (150mm)
F Floor protection to the side of door 8” (200mm)
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
WHEN INSTALLED AS A BUILT-IN
A Top of inside shroud 2” (50mm)
B Sides of inside shroud 2” (50mm)
C Back of inside shroud 2” (50mm)
D Vent pipe to combustible 3” (75mm)
E Insert side to combustible 2” (50mm)
Page 6
Noncombustible material
such as brick, tile, etc.
FASCIA OR TRIM
