AD-S82 Response, Beamwidth, and Impedance Curves

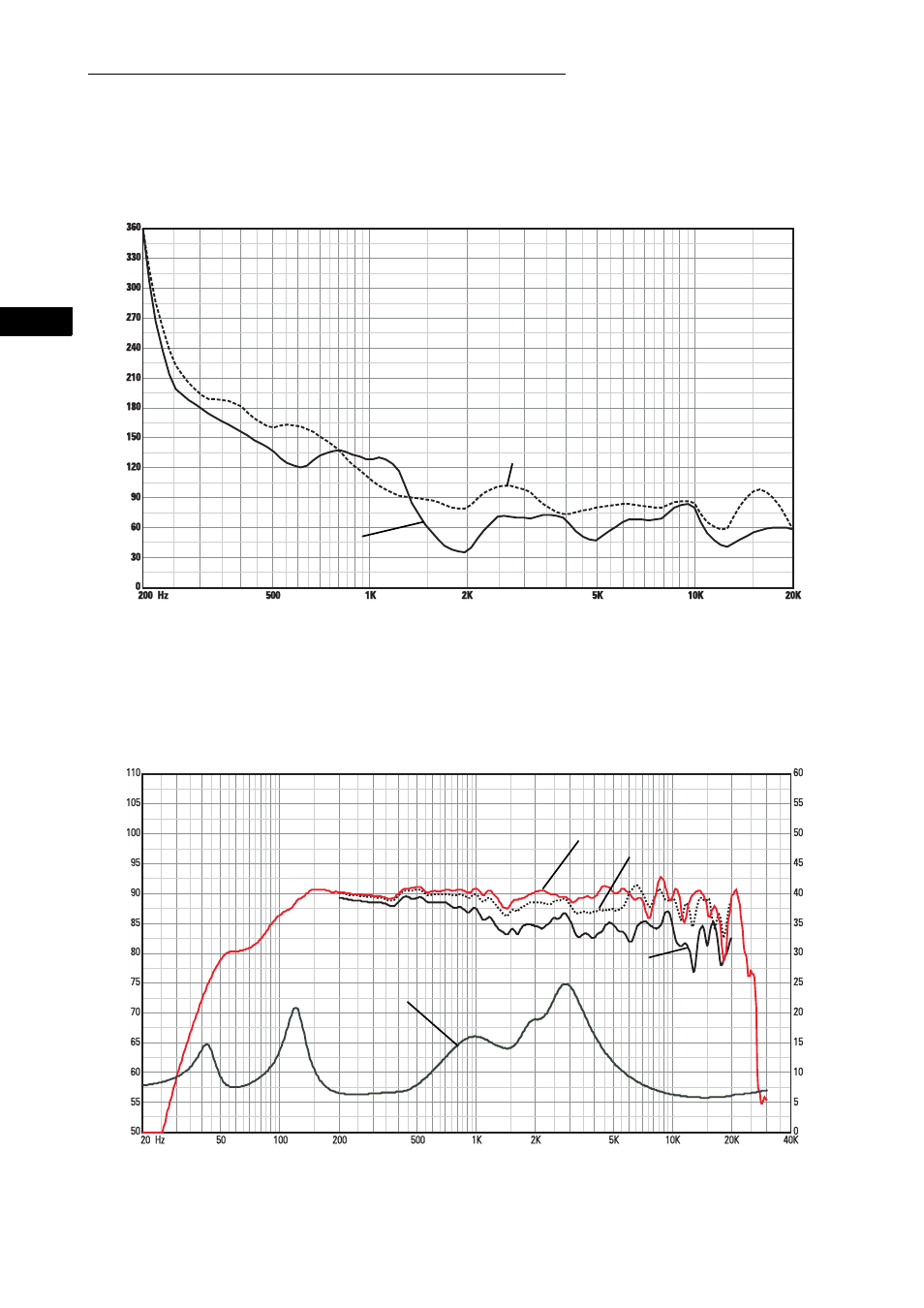

AD-S82 Horizontal and Vertical Beamwidth Vs. Frequency
Frequency (Hertz)
Horizontal
Vertical
Beam
wi
dth
(
deg
ree
s)
AD-S82 Response On-Axis, 20° Off-Axis, 40° Off-Axis, and Impedance Vs. Frequency
Frequency (Hertz)
SP
L (dB)
On Axis
20° Off Axis
40° Off Axis
Impedance
Im
ped
anc
e (oh
m
s)
