Section 6:
Appendix- DataPort Pin-out & Connector P-N’s

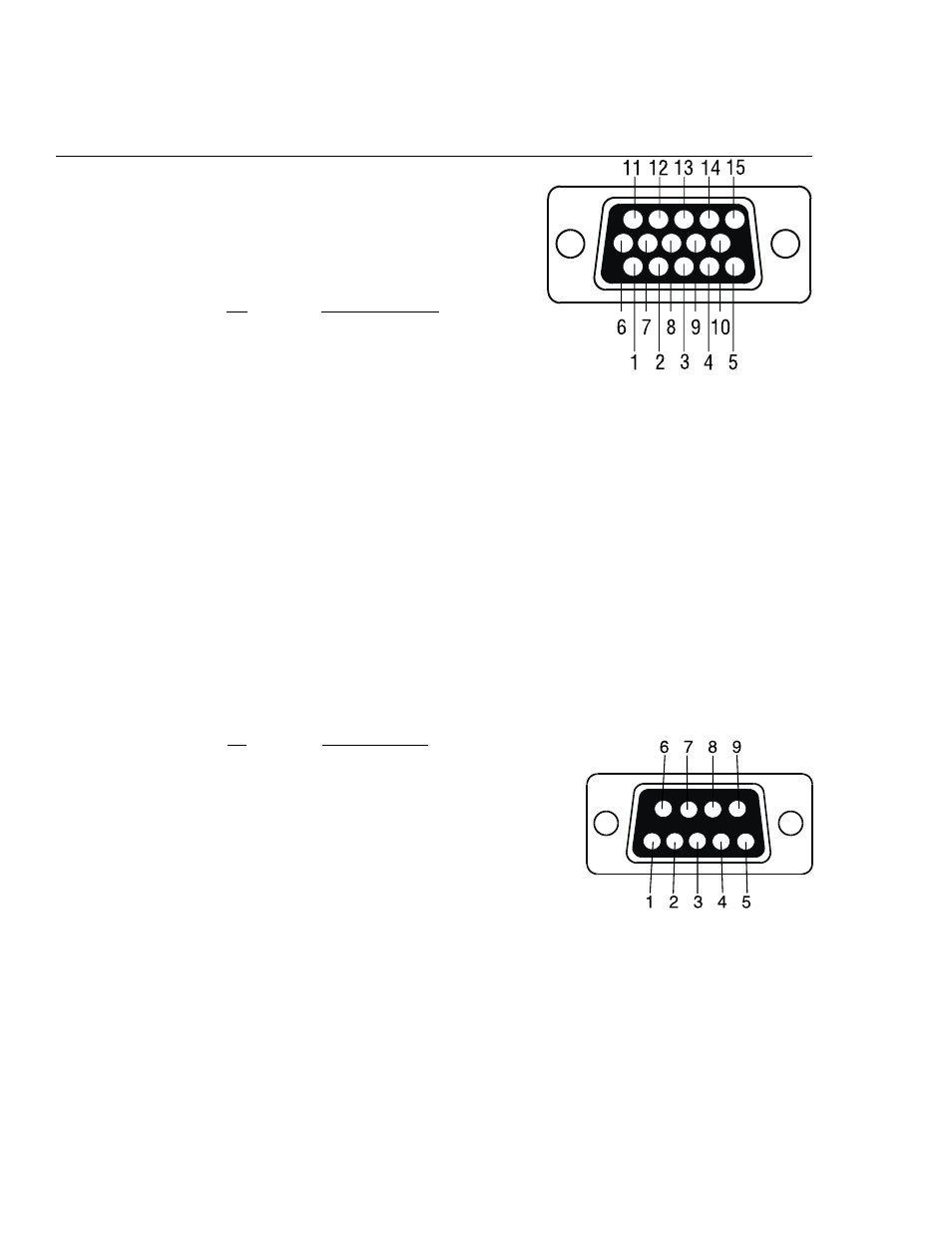

DATA PORT PINOUT: The diagram to the right shows the pin assignments
used for the HD-15 connectors on the CM16a and amplifier.
NOTE! This information is shown for reference only and is subject to change without
notice as the DataPort feature is specific to QSC products and not intended for interface
to other manufacturer’s equipment.
TERMINAL BLOCK CONNECTOR PART NUMBER REFERENCE- The following manufacturers and part numbers are provided as a
reference to users. The information here is subject to change without the knowledge of QSC.
2 pin: Phoenix Contact - 17 57 01 9; Riacon - 31249102-6; On-Shore Tech - EDZ950/2
3 pin: Phoenix Contact - 17 57 02 2; Riacon - 31249103-6; On-Shore Tech - EDZ950/3
5 pin: Phoenix Contact - 17 57 04 8; Riacon - 31249105-6; On-Shore Tech - EDZ950/5
Strain Relief 3 pin: Phoenix Contact 17 76 16 8
Strain Relief 5 pin: Phoenix Contact 17 76 14 2
WEBSITE reference- Phoenix- phoenixcon.com Riacon- riaelectronic.com On-Shore- on-shore.com
RS-232 PINOUT:
The diagram
(right) shows the
pin assignments
for RS-232.
Pin Signal Description
1 DCD
2 RX
3 TX
4 DTR
5 Signal GND
6 DSR
7 RTS
8 CTS
9 not used
Pin Signal Description
1 Ch. 1 Minus (-) Input Signal
2 AC Standby Control
3 V-MON Ch. 1 and Subcode 1
4 I-MON Ch. 1 and Subcode 2
5 Clip/protect Ch. 1
6 Hard Ground
7 Ch. 1 Plus (+) Input Signal
8 Ch. 2 Plus (+) Input Signal
9 unused for CM16a, +15V on certain amps
10 Data Reference Ground
11 Ch. 2 Minus (-) Input Signal
12 Amp IDR (model ID)]\
13 V-MON Ch. 2 and Subcode 1
14 I-MON Ch. 2 and Subcode 2
15 Clip/protect Ch.2
