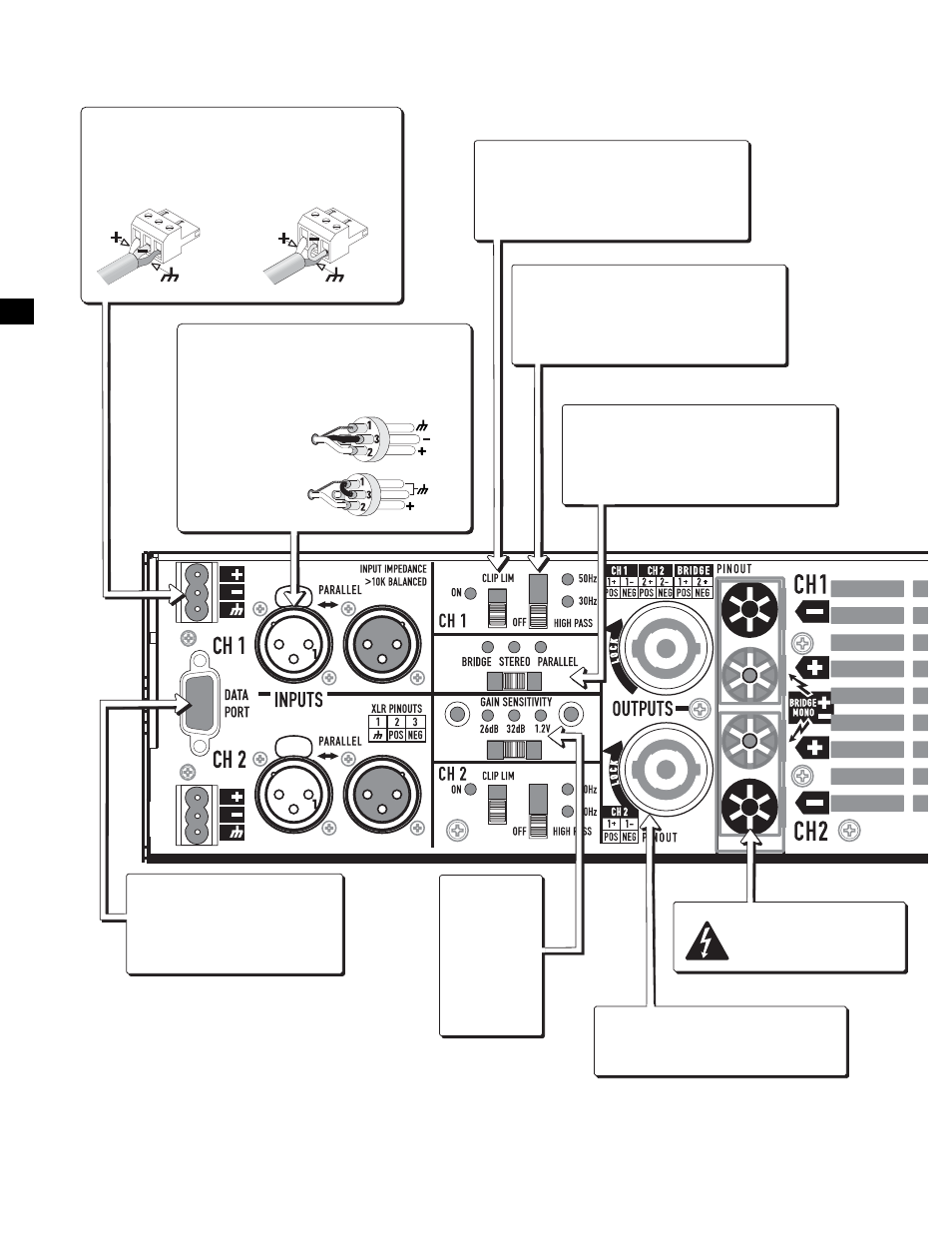

QSC DATAPORT
Supports QSC DataPort Products.
HIGH PASS FILTER SWITCH (Ch1, Ch2)
Off (No LED), 30Hz (Yellow), 50Hz (Orange)
CLIP LIMIT SWITCH (Ch1, Ch2)
Off (No LED), On (Yellow)
XLR INPUT CONNECTORS
Female and Male, Wired in Parallel for
Daisychaining to Additional Equipment.
Balanced Inputs, Impedance >10K
Balanced:
Unbalanced:
PLUGGABLE TERMINAL BLOCKS
5.0mm, 3-pin. Paralleled with XLRs
Balanced Pinout: Unbalanced Pinout:
INPUT MODE SWITCH
Bridge (Yellow) See page 9
Stereo (Green) Normal Mode
Parallel (Orange) See page 9
GAIN
SENSITIVITY
SWITCH
26dB(Orange)
32dB (Green)
1.2V(Yellow)
See Specs for
Corresponding
Values.
NEUTRIK SPEAKON CONNECTORS
Ch1: 4-Wire Connection to Ch1 and Ch2
Ch 2: 2-Wire Connection, Ch 2 Only
BINDING POSTS
RED, Speaker, HIGH VOLTAGE
BLACK, Common.
