Reference Materials
H
L
K
P
R
O
A
S
J
I
ø F
C
G
E
V
U
T
B
D
M
Q
GAS
LINE
ACCESS
ELECTRICAL
ACCESS

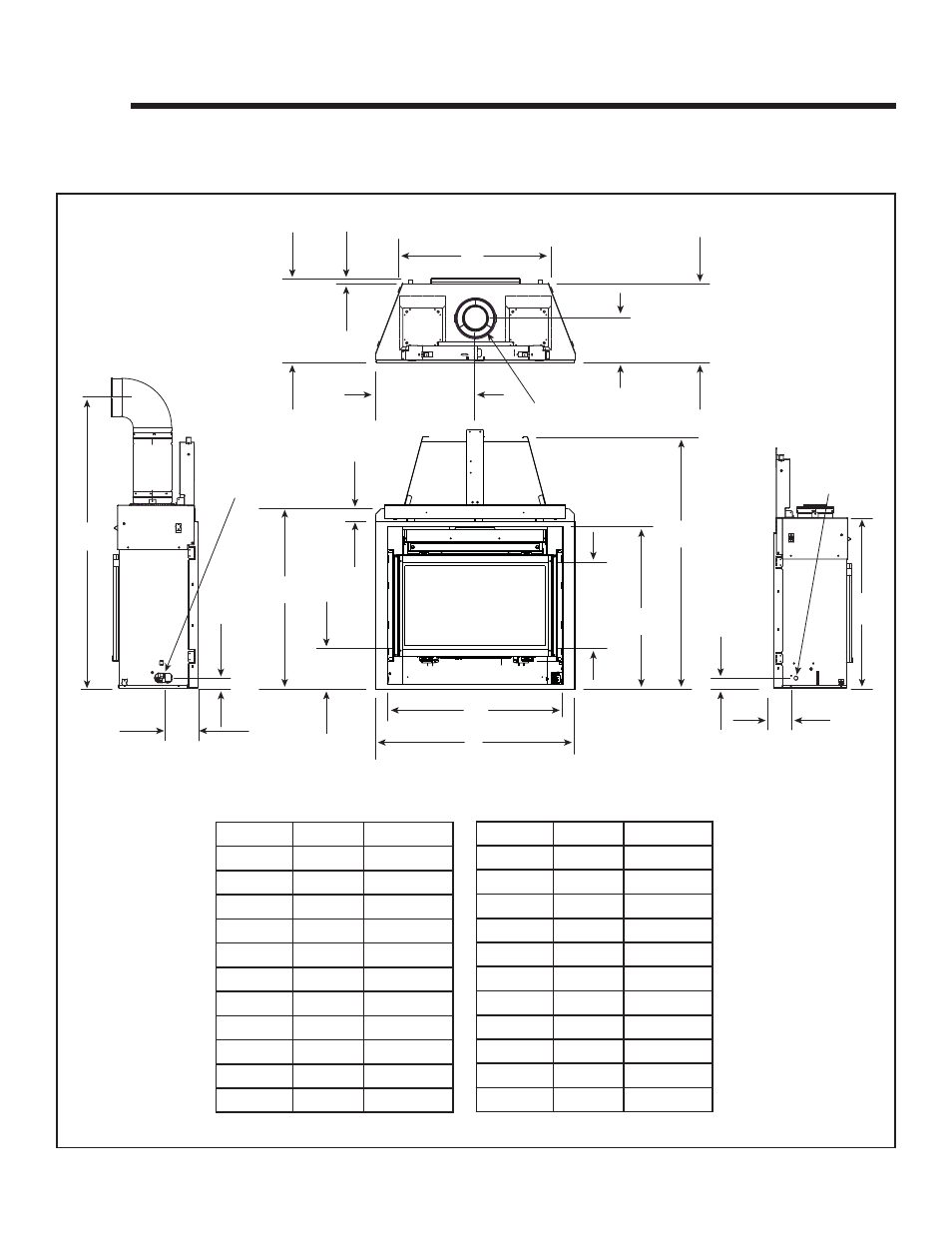

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
Figure 16.1 Appliance Dimensions
Location Inches
Millimeters
L
37-1/4
945
M
8-3/8
212
N
30-1/2
776
O
36-1/8
916
P
41
1043
Q
17-7/8
455
R
33-1/2
852
S
52
1321
T
2-1/4
56
U
5
126
V
34-1/2
876
Location Inches
Millimeters
A
17-1/4
437
B
1
24
C
31-3/8
798
D
16-1/4
413
E
9-3/8
238
F
8
202
G
20-1/2
521
H
53-3/4
1365
I
2-1/8
54
J
7
177
K
2-5/8
67
