QSC Audio CX Series User Manual

Page 6

background image

5

2

4

1

12

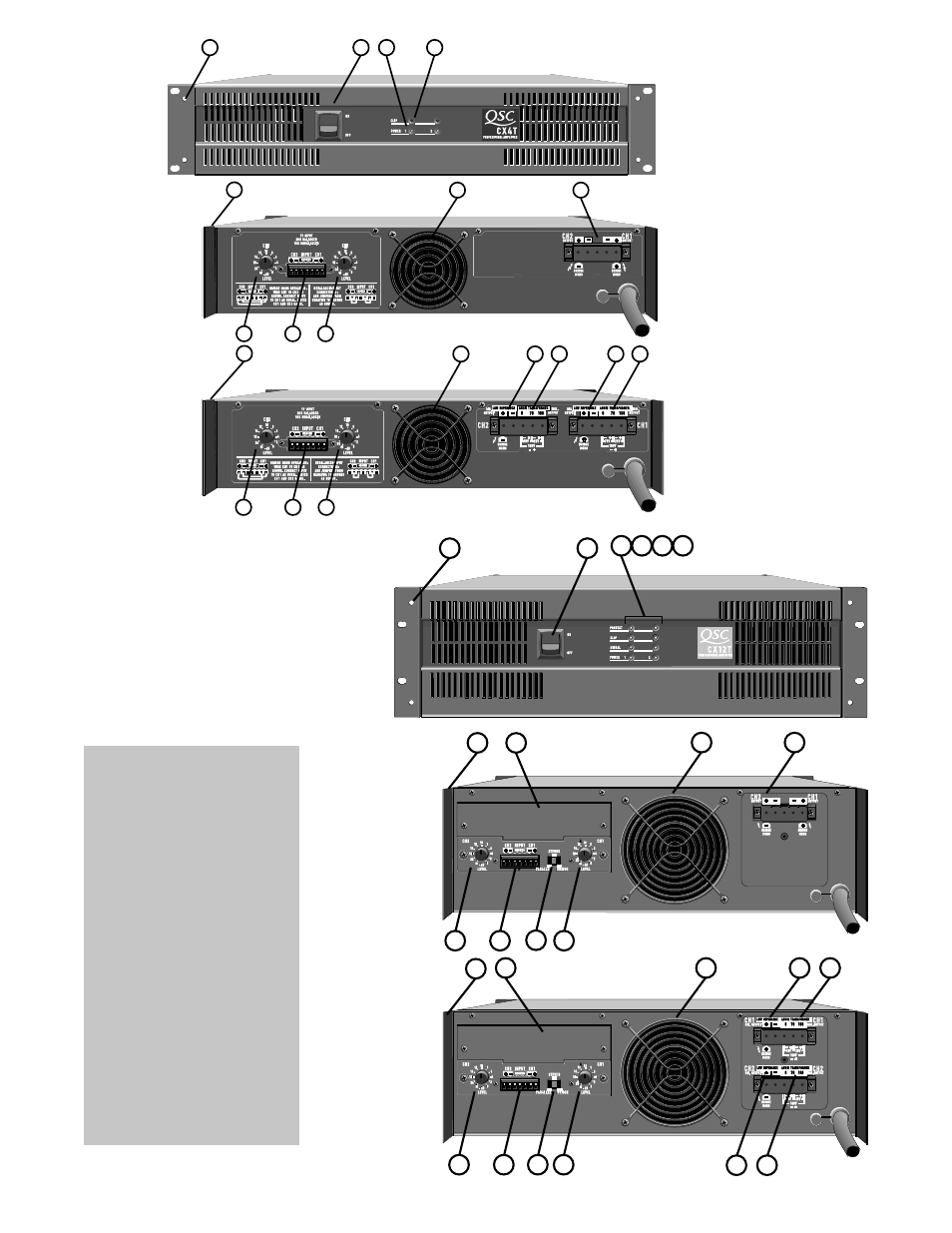

Front

features of

CX6, CX6T,

CX12 or

CX12T

amplifier

2

3

4

5

1

12

10

9

7

7

8

14

6

11

10

11

13

10

9

7

7

8

6

14

13

Front

features of

CX4 or CX4T

amplifier

1 — Power Switch

2 — Power Indicators (Ch1, Ch2)

3 — Signal Indicators (Ch1, Ch2)

4 — Clip Indicators (Ch1, Ch2)

5 — Protect Indicators (Ch1, Ch2)

6 — Accessory Slot Cover

7 — Gain Control

8 — Detachable Input Header

9 — Cooling Fan

10 — Shrouded Output Connector

(Direct Outputs)

11 — Shrouded Output Connector

(Isolated Outputs)

12 — Mounting Holes for

Optional Handles

13 — Rear Support Ear

14 — Parallel/Stereo/Bridge

Switch

Rear

features of

CX4

amplifier

Rear features

of CX4T

amplifier

10

9

7

7

8

13

10

9

7

7

8

11

10

11

13

Rear features

of CX6T or

CX12T

amplifier

Rear

features of

CX6 or CX12

amplifier
