3 Hardware Installation
1. Turn off the power of the computer system in which the QSC(LP)-100 is
to be installed.
2. Remove the system cover according to the instructions provided by the
computer manufacturer.
3. Make any desired optional jumper setting changes.
4. Install the QSC(LP)-100 in any empty PCI expansion slot. The board
should be secured by installing the Option Retaining Bracket (ORB)
screw.
5. Replace the system cover according to the instructions provided by the
computer manufacturer.
6. Attach and secure the cable connectors to the desired equipment.
7. Turn on the power of the computer system.
The output of the QSC(LP)-100 is a 44-pin D-connector. A cable is
provided to convert the D-44 into four standard male D-9 connectors with all
control signals provided to each port (RTS, DTR, CTS, DSR, DCD, and RI).
X2
X4
X8
SPAD
Clock multiplier/
scratchpad select

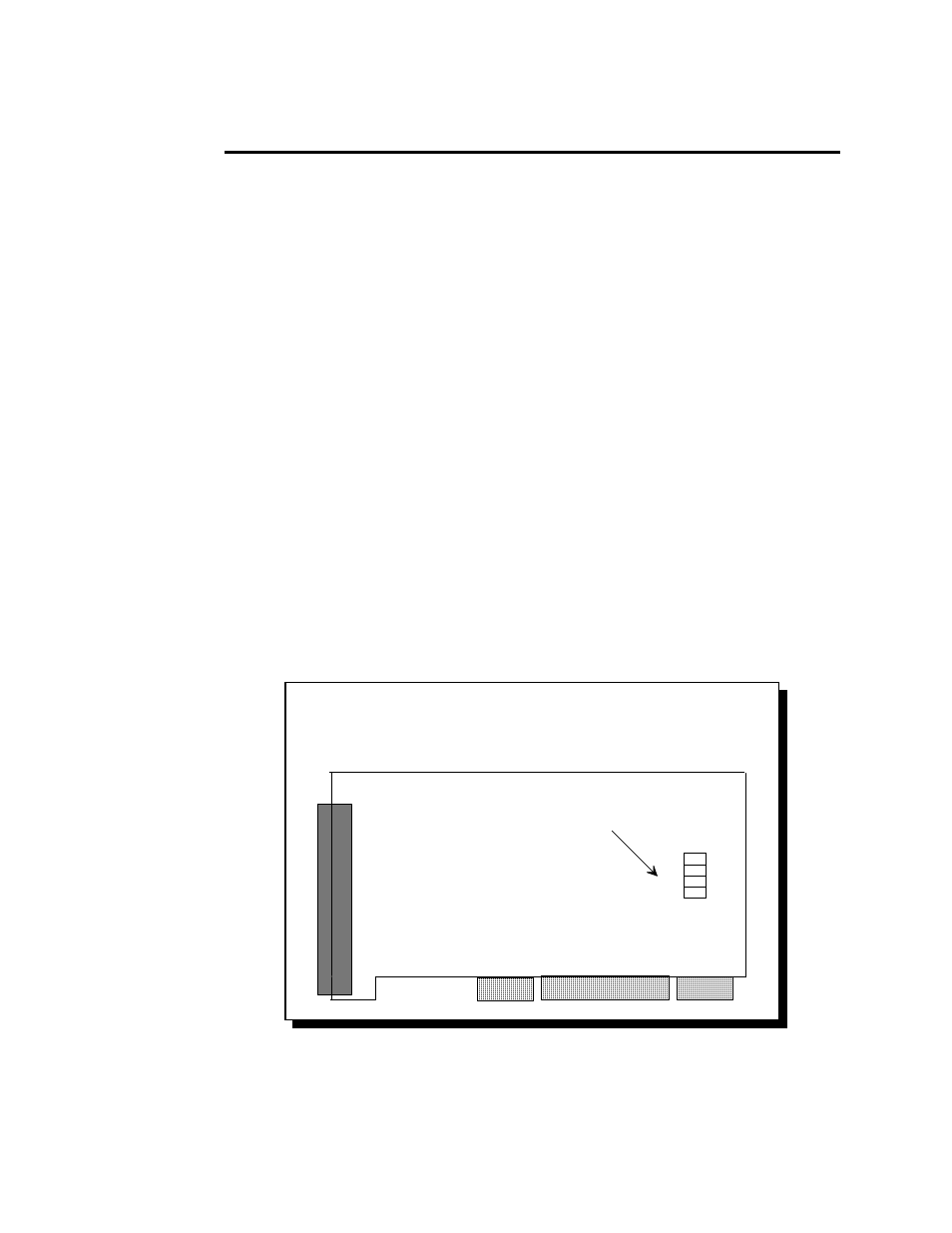

Figure 5 --- Jumper/connector locations
QSC(LP)-100 User's Manual 9
