HDMI Pass-Thru* for the Leading Hi-Def
Displays and Media
With two HDMI inputs and one output, the
HT-SR800 is the perfect complement for high-
definition displays and media. With HDMI as the
video conduit, the HT-SR800 will effortlessly
transport and enable the full potential of Blu-ray,
HD-DVD, DVD, HD broadcasts and gaming. HDMI
will deliver 720p, 1080i and 1080p video signals
from two sources for one connection direct to your
HDTV. Its 1080p pass-thru capability is perfect for
getting the highest possible video resolution from
PlayStation
® 3 and dedicated Blu-ray Disc and HD-
DVD players.
* A separate audio connection is necessary to process
multichannel audio.
Component Video Switching (50 MHz)
with HDTV Connectivity
Giving you even more integration, the HT-SR800
will take up to three of the latest A/V
components—including DVRs and the latest gaming
consoles—connected simultaneously for one
component video output to an HDTV.
Wide Range Amplifier Technology (WRAT)
Providing Amplification Backbone
Without a time-tested amplifier design and precise
digital-to-analog conversion process, the most
advanced processing features cannot deliver a
higher standard of audio from the latest high-
definition video and audio formats. WRAT is based
on three key factors: (1) A low negative-feedback
design for cleaner audio across the frequency range;
(2) Closed ground-loop circuits to cancel individual
circuit noise and keep the ground potential free of
distortion; and (3) A High Instantaneous-Current
Capability to handle speaker reflex energy and
impedance fluctuations. WRAT will bring the best
out of movie, music, broadcast and gaming sources.
Audyssey 2EQ/HTIB for the Ideal
Loudspeaker Response
Sound from your loudspeakers is affected by walls,
furniture and other objects in your room, creating
peaks and dips at different frequencies.To counter
this, Audyssey (in collaboration with Onkyo) has
developed the first in its combination of room-
correction technologies specifically designed for
home theatre packages. Audyssey 2EQ/HTIB works
by combining speaker calibration with room
correction to deliver optimally tuned sound for
affordable home theatre packages. First, the speakers
are pre-calibrated to optimize the speaker system.
Then 2EQ performs room correction to remove
distortion, thereby creating the perfect match
between the speakers and your room.The end
result is an ideal loudspeaker response that ensures
your movies and music sound exactly as they should.
7.1 Speaker System with Fine-Tuning
Capabilities
These speakers can easily handle the most dynamic
film soundtracks and provide good music
reproduction as well. Given the low-frequency
energy requirements of home theatre, the package
is anchored around its 230 W bass amplification.The
front, center and surround speakers provide the
dynamic range and the ability to handle demanding
audio signals.
Fully Compatible with the iPod Family
via Onkyo RI Docks
The ubiquitous iPod continues to revolutionize
modern media. By connecting the HT-SR800 with

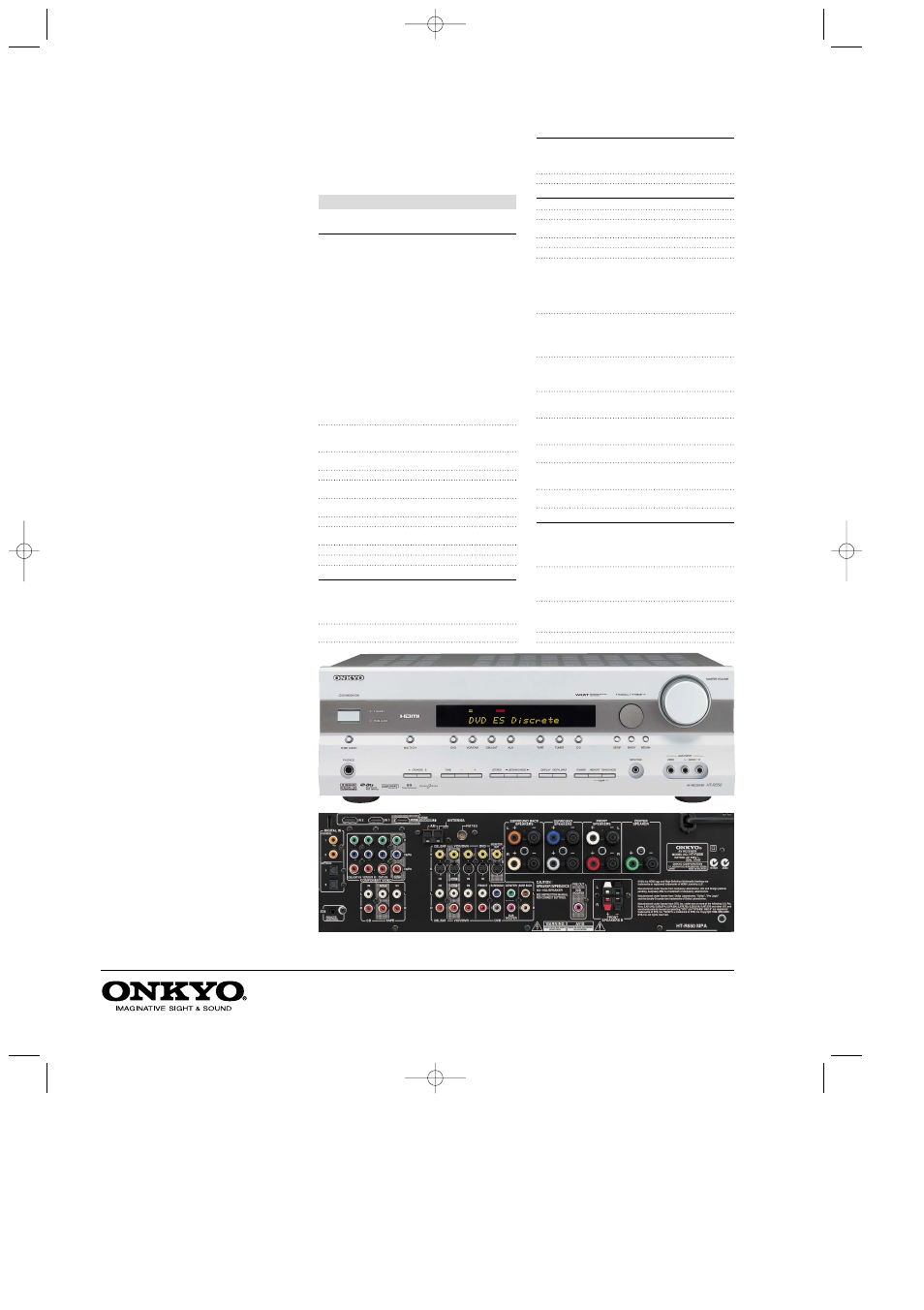

SPECIFICATIONS
■ RECEIVER SECTION
A MPLIFIER S ECTION
Power Output
Front L/R 160 W + 160 W (8 Ω , 1 kHz, 1 channel
driven, JEITA)
130 W + 130 W (8
Ω , 1 kHz, 1 channel
driven, IEC)
110 W + 110 W (8
Ω , 1 kHz, 2 channels
driven, FTC)
Center 160 W (8 Ω , 1 kHz, 1 channel driven,
JEITA)
130 W (8
Ω , 1 kHz, 1 channel driven, IEC)
110 W (8 Ω , 1 kHz, 2 channels driven, FTC)
Surround L/R 160 W + 160 W (8 Ω , 1 kHz, 1 channel
driven, JEITA)
130 W + 130 W (8
Ω , 1 kHz, 1 channel
driven, IEC)
110 W + 110 W (8
Ω , 1 kHz, 2 channels
driven, FTC)
Surround Back L/R 160 W + 160 W (8 Ω , 1 kHz, 1 channel
driven, JEITA)
130 W + 130 W (8
Ω , 1 kHz, 1 channel
driven, IEC)
110 W + 110 W (8
Ω , 1 kHz, 2 channels
driven, FTC)
Dynamic Power 210 W (3 Ω , 1 ch)
190 W (4 Ω , 1 ch)
130 W (8 Ω , 1 ch)
THD (Total Harmonic Distortion)
0.9% (Rated Power)
Damping Factor 60 (Front, 1 kHz, 8 Ω )
Input Sensitivity and Impedance
200 mV/47 k Ω (Line)
Output Level and Impedance
200 mV/470 Ω (Rec out)
Frequency Response 5 Hz–100 kHz/ +1 dB, -3 dB (Direct mode)
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 8 Ω –16 Ω
V IDEO S ECTION
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp-p/75 Ω (Component and S-Video Y)
0.7 Vp-p/75 Ω (Component P B /C B , P R /C R )
0.28 Vp-p/75 Ω (S-Video C, P R /C R )
1.0 Vp-p/75 Ω (Composite)
Component Video Frequency Response
5 Hz–50 MHz
T UNER S ECTION
Tuning Frequency Range
FM 87.5 MHz–108.0 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 stations
G ENERAL
Power Supply AC 230 V, 50 Hz
Power Consumption 670 W
Standby Power Consumption
0.5 W
Dimensions (W x H x D) 435 x 150 x 377 mm
Weight 10.2 kg
■ SPEAKER SECTION
Speaker Type
Front/Center 2-way, bass reflex
Surround/Surround Back Full-range, acoustic-suspension
Subwoofer Bass reflex powered
Drivers
Front/Center 12 cm OMF diaphragm woofer x 2,
2.5 cm balanced-dome tweeter
Surround/Surround Back 8 cm full-range cone
Subwoofer 25 cm cone
Frequency Response
Front/Center 60 Hz–50 kHz
Surround/Surround Back 160 Hz–20 kHz
Subwoofer 25 Hz–150 Hz
Output Sound Pressure Level
Front/Center 87.5 dB/W/m
Surround/Surround Back 82 dB/W/m
Max. Input Power
Front/Center/Surround/
Surround Back
130 W
Max. Output Power
Subwoofer 230 W
Nominal Impedance
Front/Center/Surround/
Surround Back
8 Ω
Input Sensitivity/Impedance
Subwoofer 140 mV/20 k Ω
G ENERAL
Dimensions (W x H x D)
Front 157 x 433 x 194 mm
Center 433 x 157 x 194 mm
Surround/Surround Back 155 x 266 x 98 mm
Subwoofer 276 x 510 x 417 mm
Weight
Front/Center 3.9 kg
Surround/Surround Back 1.3 kg
Subwoofer 11.4 kg
■ CARTON
Dimensions (W x H x D) 779 x 794 x 512 mm
Weight 45.0 kg
