Omnimount Stellar G363 - Manual (Page 2)

2

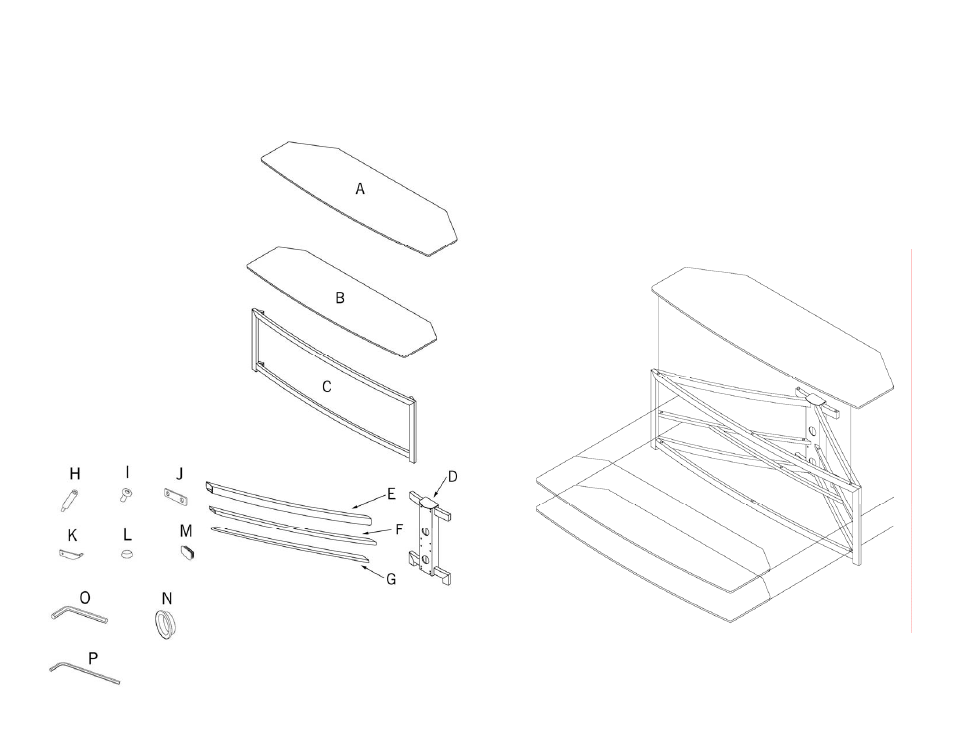

Components:
ID Description Qty.
A Top Glass Shelf 1
B Middle/Bottom Glass
Shelves
2
C Main Frame 1
D Back Post 1
E Main Support Legs 4
H Long Hex Head Screws 10
I Hex Screws 18
J Cross Bar Bracket 2
K Center Support Bracket 2
L Self Adhesive Pads 16
M End Caps 4
N Cable Port Covers 2
G Center Cross Bar 1
F Center Support Legs 2
O Large Hex Wrench 1
P Small Hex Wrench 1
7
Step 9
Refer to Fig. 9.
Carefully lift and slide Bottom Glass Shelf (B) into place on lower frame members.
Carefully lift and slide Middle Glass Shelf (B) into place on center frame members.
Lift Top Glass S
helf (A) into place on top frame members.
Note: If the top shelf glass is unstable, move the rubber pad positions or, using the
extra adhesive pad, double up the height of the lowest pad until the shelf glass is
stable.
Caution: Never try to move table by pulling on glass shelves. Always move table by
grasping the table frame assembly.
Fig. 9
