COMPUTER IN
S-VIDEO VIDEO
AUDIO
IN OUT
S-Video Output Audio Output
S-Video Cable
Audio Cable
Power Cord
Audio Cable
Audio in port
Audio out port
S- Video port

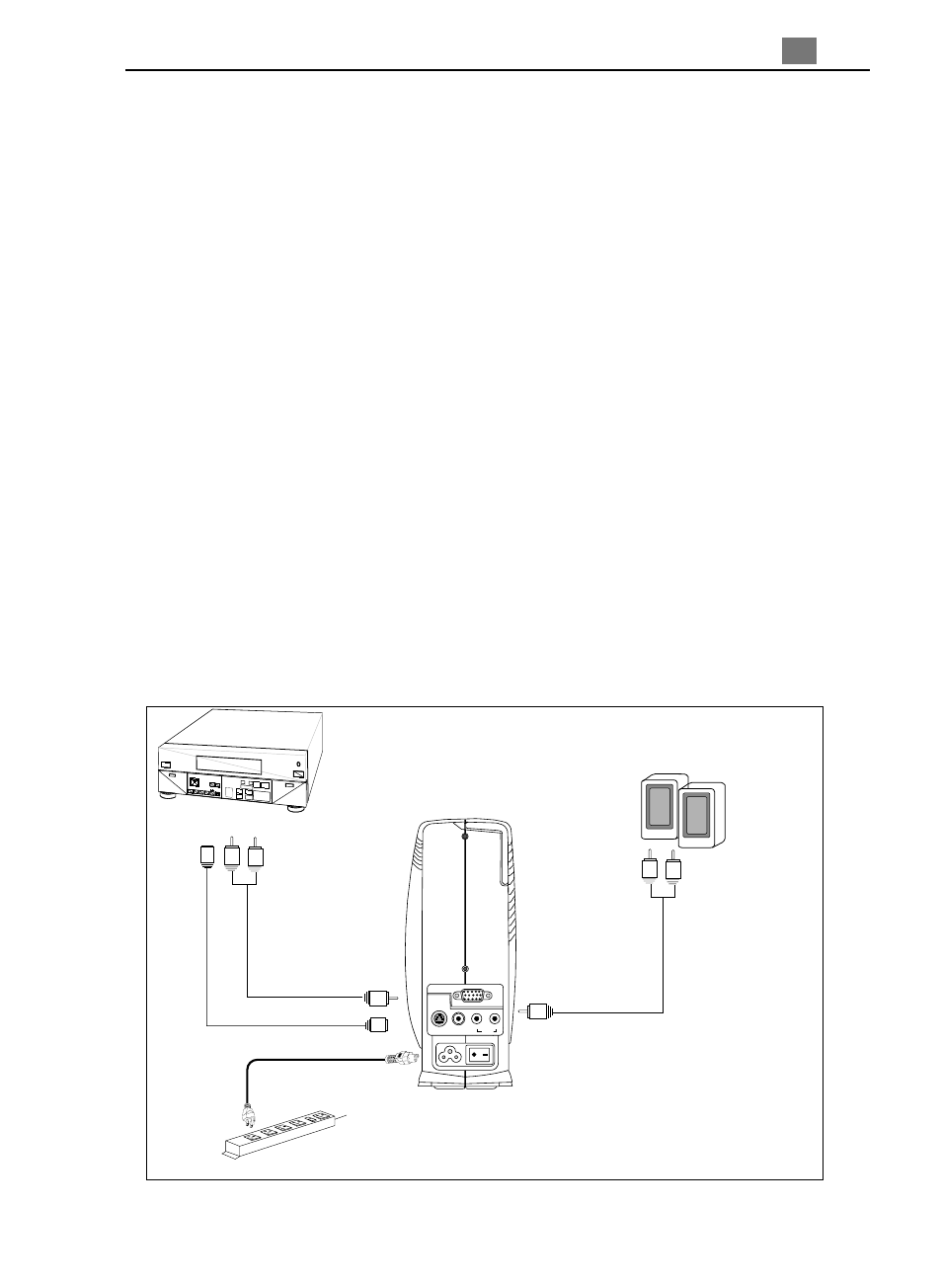

If you use the s-video cable:
1. Plug the s-video cable connector into the “S-Video”port on your video player; plug
the other end into the “S-Video” port on your projector.
2. Plug the audio cable white connector into the left “Audio out” port on your video
player; plug the cable’s red connector into the right “Audio out” port on the video
player; plug the other end into the “Audio in” port on your projector.
3. If you need to use an external speaker (built in amplifier), plug the audio cable white
connector into the white “Audio in” port on your speaker; plug the cable’s red con-
nector into the red “Audio in” port on the speaker; plug the other end into the “Audio
out” port on your projector.
4. Connect one end of the power cord into the back of projector; connect the other
end to an electrical outlet.
