Page 19: Ome-db-889d user’s manual

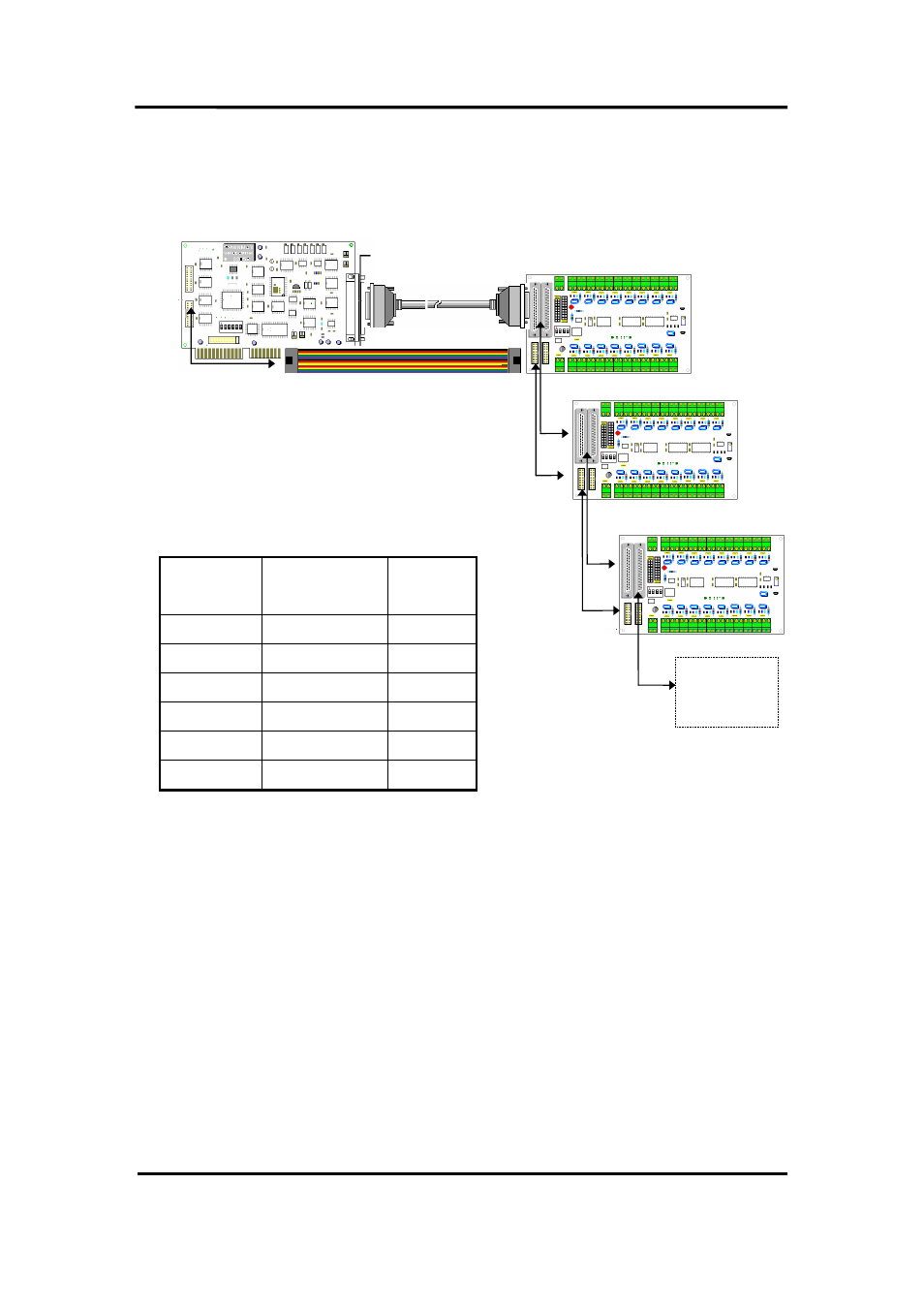

4.3 Cascading OME-DB-889D
OME-A-82X
series
OME-DB-889D JP16
A/D Channel 0 OME-DB-889D #1
0
A/D Channel 1 OME-DB-889D #2
1
A/D Channel 2 OME-DB-889D #3
2
A/D Channel 3 OME-DB-889D #4
3
A/D Channel n OME-DB-889D #n
n
A/D Channel 9 OME-DB-889D #10
9
Note: Each OME-DB-889D JP17 place on “X”
OME-DB-889D #3
OME-A-82X series A/D card
1.
A821PGH/L
2.
OME-A-822PGH/L
3.
OME-A-823PGH/L
4.
OME-A-826PGH/L
5.
PCI-1800PGH/L
Note: PCI-1802 should be via DB-1825
connect to OME-DB-889D
20 Pin Flat Cable
OME-DB-889D #2
OME-DB-889D #n
Up to 10 Boards
OME-DB-889D User’s Manual
17
