Connecting to the other components
1 Connection with the Amplifier
Connect the MD-105X to the MD (or TAPE) jacks
of your amplifier.
2 Connection to the Digital Input
Terminals (DIGITAL INPUT 1, 2)
You can perform digital recording on the MD-
105X if a CD (Compact Disc) player or DAT
(Digital Audio Tapedeck) equipped with a digital
(OPTICAL) output terminal is available. For digital
recording, you need to connect the equipment
to either DIGITAL INPUT 1 or 2 terminal using
the supplied optical cable. These terminals can
also be used for connecting an amplifier which is
equipped with a digital output terminal.
• Terminal protection caps are attached to the
DIGITAL INPUT terminals. Remove the cap for the
terminal you wish to use when connecting the
MD-105X to digital equipment. Replace the caps
if you are not using the DIGITAL INPUT terminals.
3 Connection to AC outlet
(UNSWITCHED)
The power cord of another unit can be connected
to this outlet.
Note
The shape, number, and total capacity of the AC
outlets may differ depending on the area where the
unit is purchased.
230 V, 50 Hz model: Capacity is 100 W in total.
120 V, 60 Hz model: Capacity is 120 W in total.

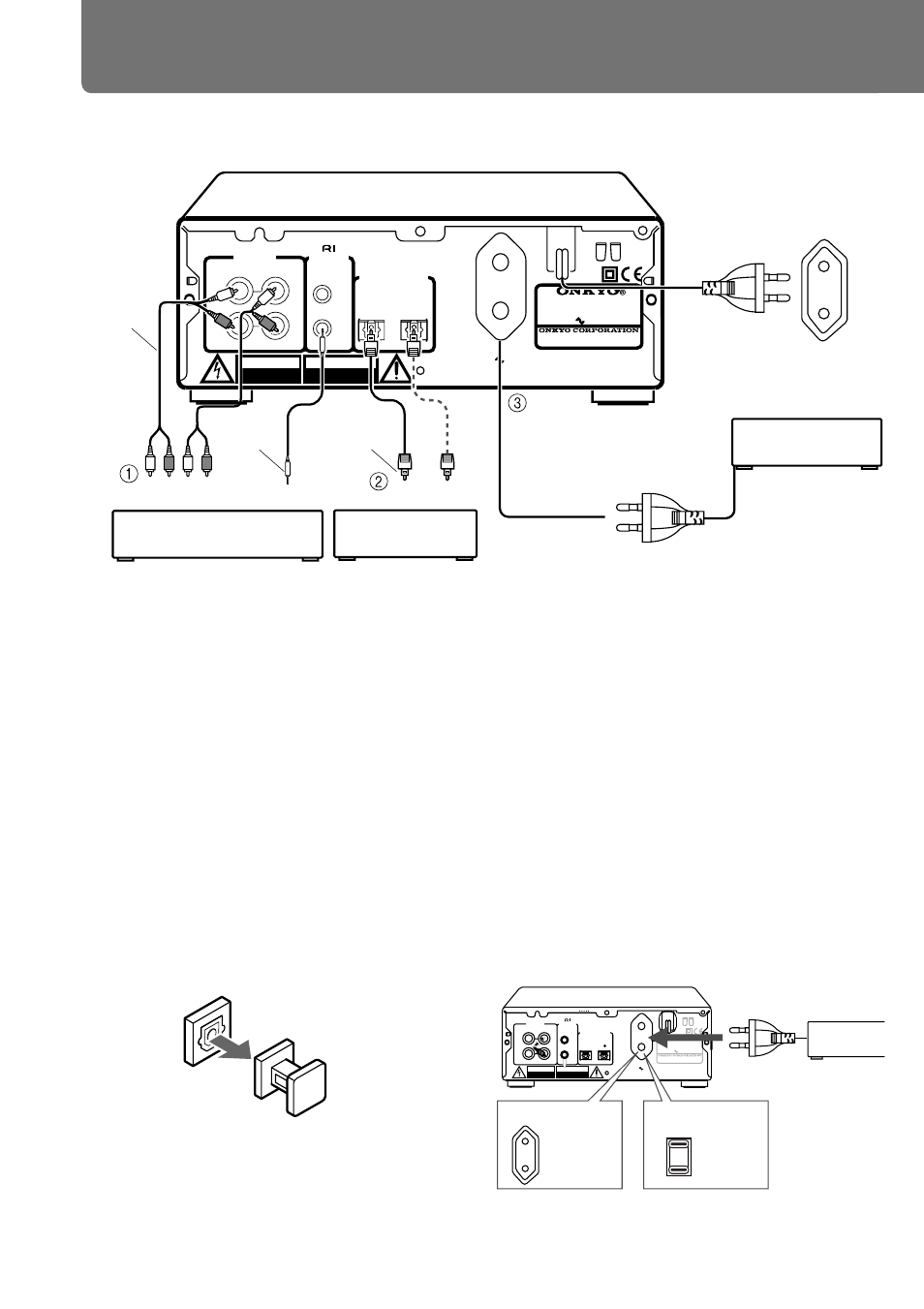

Connections
Amplifier
CD player,
DAT deck, etc.
To wall outlet
Optical fiber
cable
Audio
connection
cable
z cable
AC OUTLET
AC230V 50Hz
UNSWITCHED
100W MAX.
L
R
US AND FOREIGN PATENTS LICENSED
FROM DOLBY LABORATORIES.
(REC) (PLAY)
INPUT OUTPUT
REMOTE
CONTROL
OPTICAL
1 2
DIGITAL INPUT
L
R
ANALOG
2-1, NISSHIN-CHO, NEYAGAWA-SHI,OSAKA,
JAPAN
MADE IN JAPAN
RATING:
AC230V 50Hz 11W
MINIDISC RECORDER
MODEL NO. MD-105X
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
R L
OUT
R L
IN
OUT z
Note
• If the DIGITAL INPUT 2 is used for connecting the
amplifier, you cannot use the full capability of the
MD-105X.
• If you attempt to perform digital recording using
a digital input terminal which is not connected,
“D.In Unlock” will appear.
• This unit use heat-sensitive parts. Do not place this unit on the Amplitier or Receiver.
