Output plate – Orion Car Audio CO6002 User Manual
Page 5
4
© 2008 directed electronics—all rights reserved
without signal.
3.
RCA Inputs - Accepts RCA input from a source unit, preamplifier, or equalizer.
4.
Gain Control - Continuously adjusts from 175mV to 8V input to obtain full power
output.
5.
HPF, FULL, LPF Switch - Selects either Hi-pass crossover, Full range, or Lo-pass cross-
over.
6.
Lo-Pass Frequency Control - Adjusts the frequency of the crossover.
7.
Hi-Pass Frequency Control - Adjusts the frequency of the crossover.
8.
Bass Boost Switch - Adjusts bass gain in three steps (0dB, 6dB, & 12dB).
9.
Status LED - Will indicate any fault condition in amplifier, also lights briefly during
muting phase of turn-on

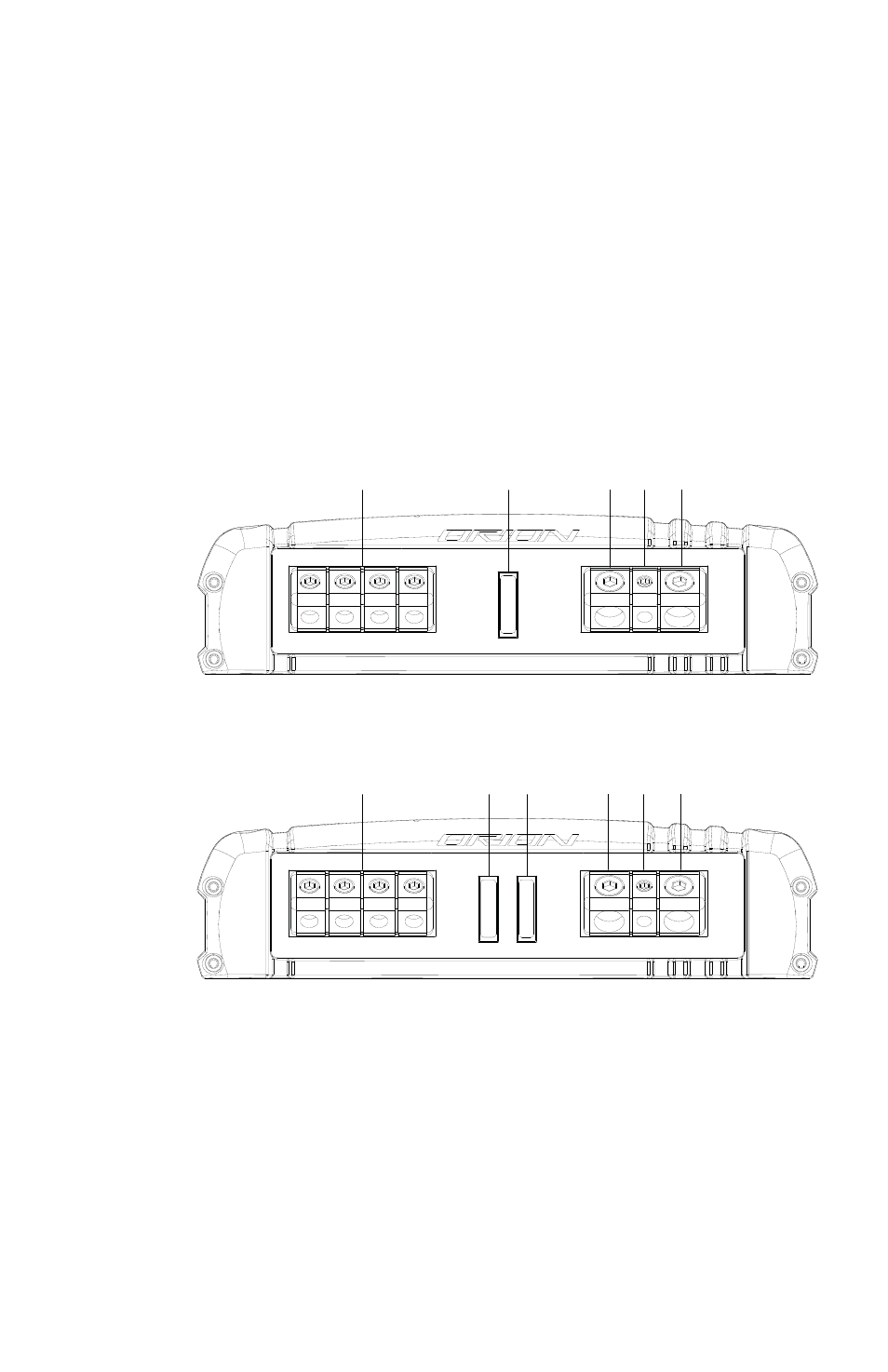

Output Plate
CO3002
Figure 3
Figura 3
Abbildung 3
2
3
1
4
5
CO6002
Figure 4
Figura 4
Abbildung 4
2
3
2
1
4
5
1.
Speaker Connections - accepts up to 12 AWG speaker wire.
2.
1 ATC Fuse (CO3002) - 2 ATC Fuses (CO6002) - protects the amplifier from over
current situations.
3.
Power Connections - accepts up to 4 AWG power cables.
4.
REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
5.
Ground Connection - accepts up to 4 AWG ground cable.
