TOOLS OF THE TRADE
Listed next are the majority of the tools required to perform an installation. Having the proper
tools will make the installation that much easier. Some of these tools are necessities; some will
just make the job easier.
●
Allen Wrenches (2mm, 3mm and 4mm)
●
DMM or VOM
●
Electric drill with assorted drill bits
●
Grommets
●
Heat shrink tubing
●
Marking
pen
●
Phillips and flat blade screw drivers
●
Nylon tie straps
●
Pliers (standard and needle nose)
●
Wire
crimper
●
RTA (real time analyzer)
●
Wire
cutters
●
Soldering iron and solder
●
Wire
strippers
●
Utility
knife
●
Wire brush or sandpaper for chassis grounding
●
Reference CD with 1 kHz Sine Wave at 0dB level (all bits high)

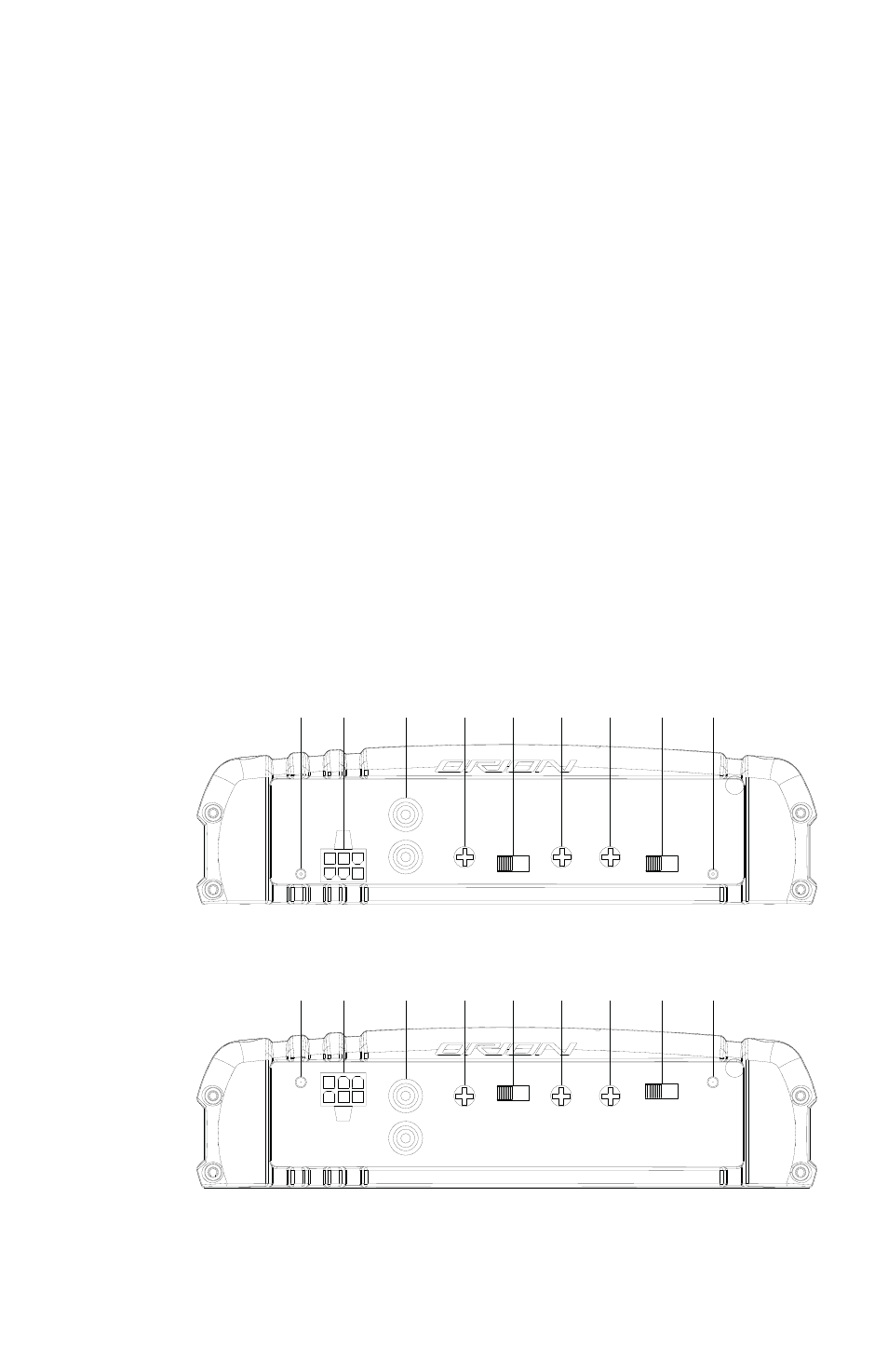

END PANEL LAYOUTS
Input Plate
CO3002
Figure 1
Figura 1
Abbildung 1
1
9
8
7
6
5
4
3
2
CO6002
Figure 2
Figura 2
Abbildung 2
1
9
8
7
6
5
4
3
2
1.
Power LED - When lit indicates that the amplifier is on.
2.
High Level Input - Connect speaker output from factory radio to amplifier, will auto
sense signal from radio and turn amplifier on when needed, turn off after 1 minute
