Onkyo TX-SA605 - Manual (Page 2)

DVD player
TV
HDMI
IN
TV
VIDEO 1
IN
HDMI
OUT Antenna input
(e.g., RF IN)
Cable/
satellite
Cable/
satellite
VIDEO
OUT
AUDIO
OUT
L
R
DIGITAL
OUT
COAXIAL
Antenna input
(e.g..RF IN)
DVD player VIDEO
OUT
AUDIO
OUT
DIGITAL
OUT
COAXIAL L
R
HDMI
OUT

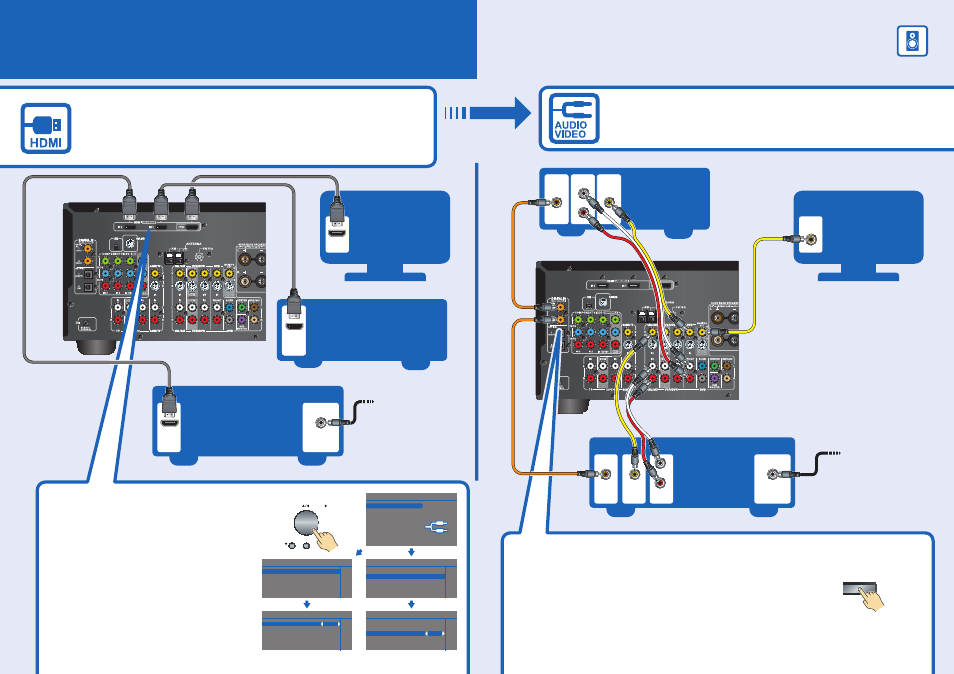

AV Component Hookup
IF NO HDMI
Assigning the Digital Input
If there's no sound, press the [DIGITAL INPUT]
button repeatedly until sound is heard. The digital input is
now properly assigned.
If you connect your DVD player to the AV receiver’s
COAXIAL 1 DIGITAL IN, and your cable/satellite receiver
to the COAXIAL 2 DIGITAL IN, as shown, it’s not necessary
to assign the digital input.
Please ensure the monitor input
(VIDEO 1, VIDEO 2, VIDEO 3, etc.)
selected corresponds to actual
connection used.
On the front panel
DIGITAL INPUT
See the other side of this sheet for the Speaker hookup.
With an HDMI cable you can send both audio and video with a single cable,
making connecting simple and keeping wires neat.
If you have an HDMI-compatible TV and players, you can connect them
to the AV receiver with HDMI cables. Digital audio signals received
at HDMI IN 1 or 2 are output by the speakers and headphones connected
to the AV receiver.
Coaxial feed from
TV antenna
If you are not using
Cable/satellite box,
please refer to the
instruction manual.
Coaxial feed from
TV antenna
If you are not using
Cable/satellite box,
please refer to the
instruction manual.
If your TV or player doesn’t support HDMI, use the analog or digital
connections shown below.
Assigning the HDMI Input
If you connect a video component to an
HDMI input, you must assign that HDMI
Input to an input selector in Setup.
If you make the same connections as
shown here, you must assign the “DVD”
setting to “IN1,” and assign the “CBL/SAT”
setting to “IN2.”
Setting the Monitor Out
When the TV is connected to an HDMI
input, the HDMI Monitor setting on the AV
receiver/AV amplifier must be set to “Yes.”
On the front panel
ENTER
TUNING PRESET
SETUP
1–1. Monitor Out
HDMI Monitor Yes
1–2. HDMI Input
DVD IN 1
VCR/DVR - - -
CBL/SAT IN 2
GAME/TV - - -
AUX - - -
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
1. Input/Output Assign
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Input
Menu
1. Input/Output Assign
2. Speaker Setup
3. Audio Adjust
4. Source Setup
5. Listening Mode Preset
6. Miscellaneous
7. Hardware Setup
8. Lock Setup
