DIAGNOSTICS
This section provides helpful information for operating or troubleshooting the unit.
Item Description
SATS: TRK=00 Tells the number of satellites currently visible in the sky. This is only
USE IN CALC=00 GPS satellites and does not include the correction satellites.
CORRECTION TYPE Displays the type of differential correction being used. There are two
types loaded into the receiver. WAAS and e-Dif
TM are the factory
installed options. Other types may be field installed.
DIFF AGE This indicates the age of the RTCM corrections used in the DGPS
calculation. It is only for use by technicians.
BIT ERROR RATE This shows a number that measures the relative strength of the correction
satellite(s). In the case of WAAS, two numbers are shown separated by a
hyphen. The number can be from 0 to 500 with 0 being good and 500
being bad. See page 17 for a more detailed explanation.
MEMORY All passes are recorded in memory until erased at the end of each field.
This shows how much memory (in hours) is left. To clear the memory,
press STOP GUIDANCE and ERASE MEMORY.
GPS SOFTWARE VER GPS software version.
APP SOFTWARE VER Application software version.
SERIAL NUMBER This is the serial number of the unit. It should match the number on the
serial number tag on the back of the unit. This number is required when
subscribing to OMNISTAR.
LED TEST Tests each display LED.
POSITION Displays current Latitude and Longitude.
16

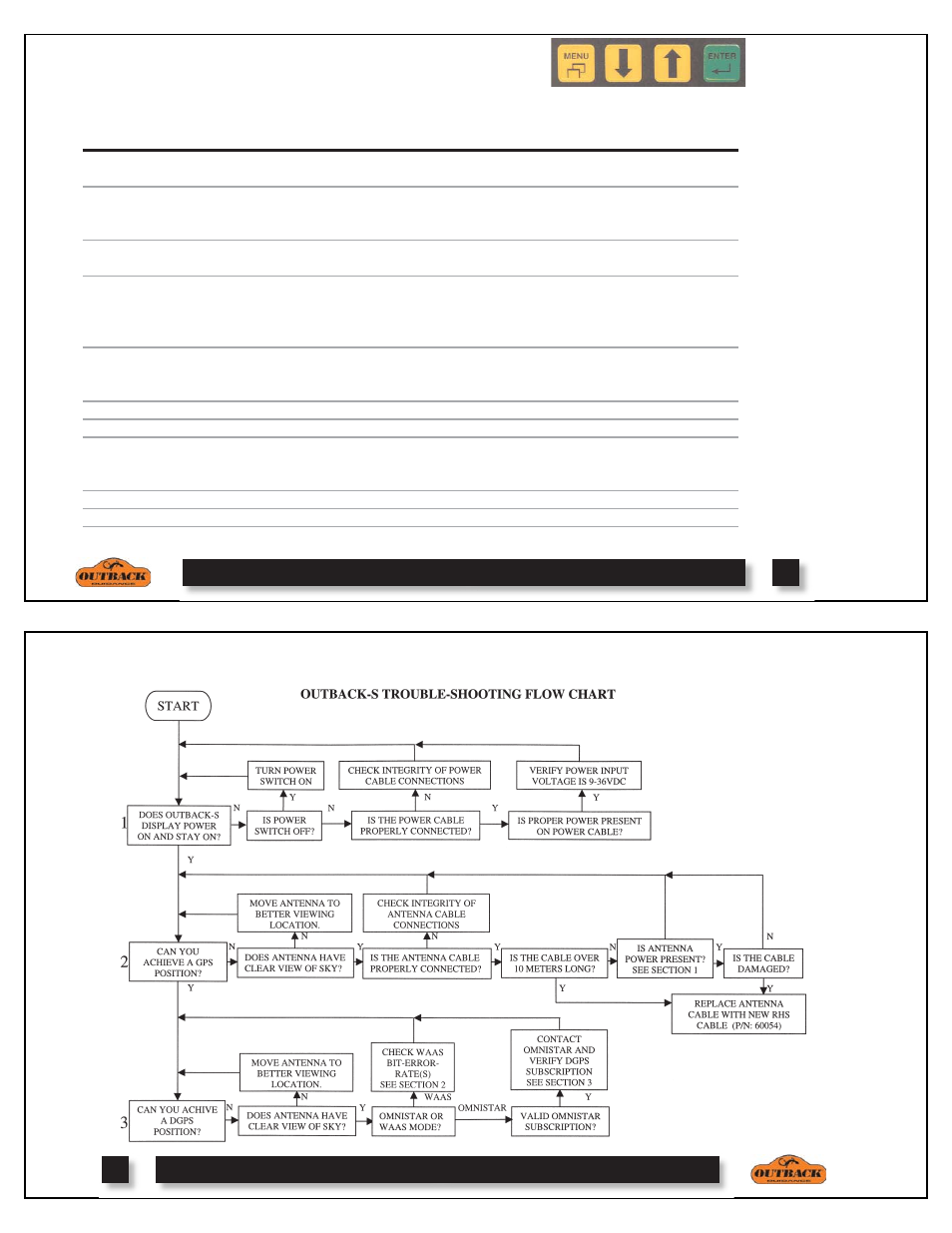

TROUBLESHOOTING
