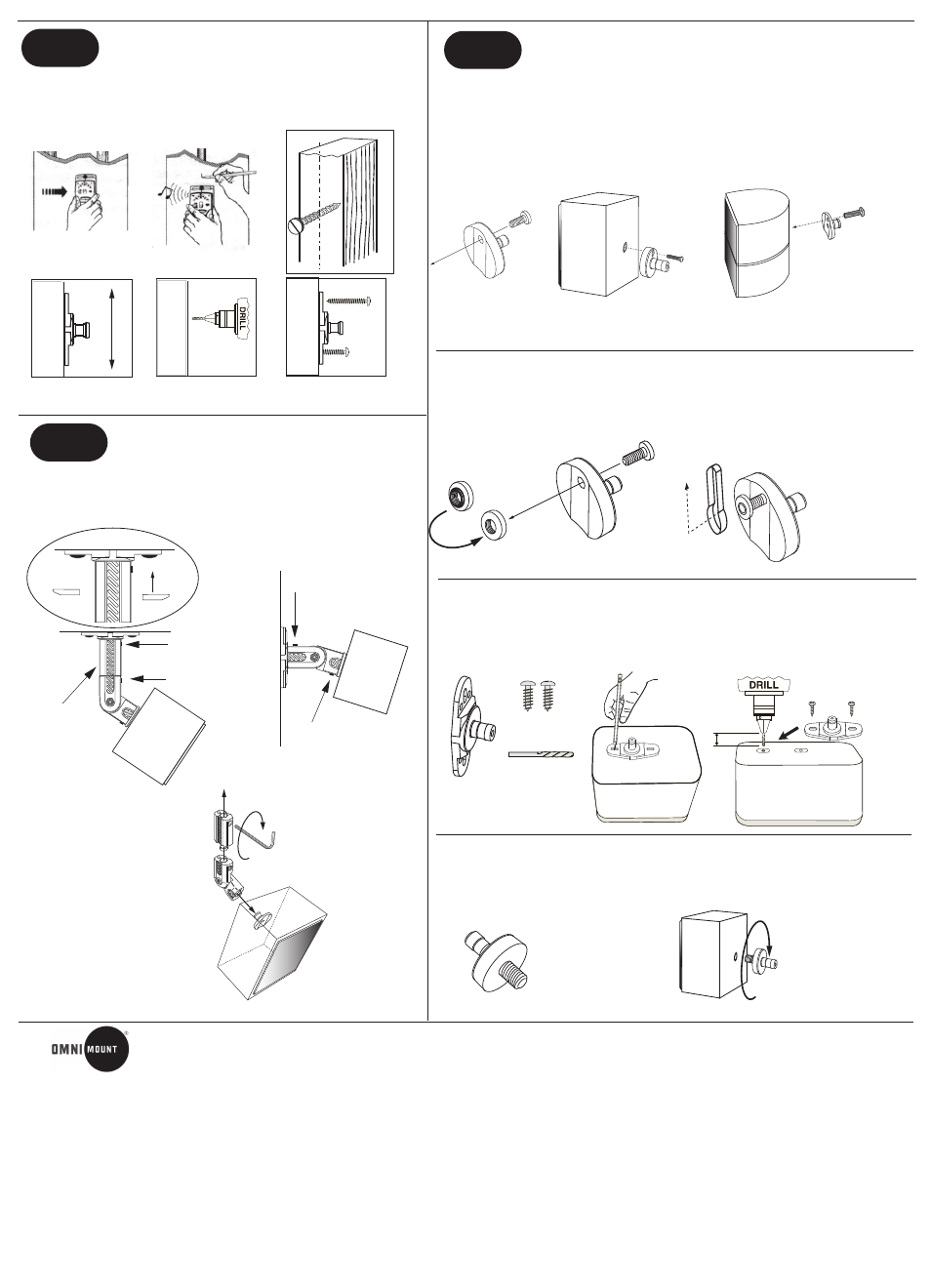

Step 3 In Installation of wall plate (continued)
Mounting to solid wood or wood studs
.
Drill a pilot hole into center of each location using 3/32" drill bit (provided).
Drill 1-1/4'' into the stud.
Attach wall plate with two #8 x 1-3/4" wood screws.
fig. 4
wall wall
fig. 5
wall
fig. 6
fig. 14
fig. 15
Set screw location
Set screw location
extension
Set screw locations
Screw covers
Step 5 I Installation of adjusting knuckle and
extension.
